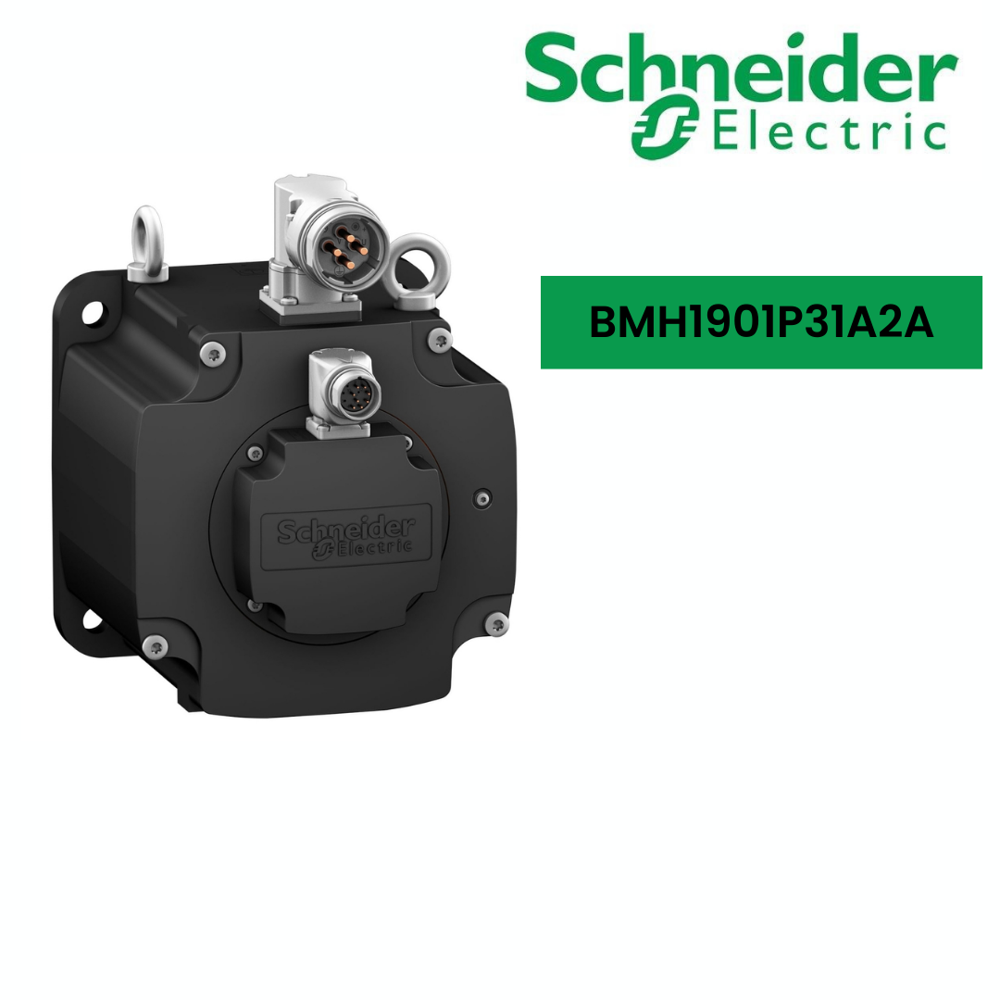

Servo Motor-BMH1901P31A2A
125936.65 INR/Piece
Product Details:
- Voltage 480V Volt (v)
- Warranty 1 YEAR
- Power Rating 5.24W
- Poles Number 10
- IP Rating IP67, IP65
- Current Type 89.6 A
- Rated Voltage 480V Volt (V)
- Click to View more
X
Servo Motor-BMH1901P31A2A Price And Quantity
- 5 Piece
- 125936.65 INR/Piece
Servo Motor-BMH1901P31A2A Product Specifications
- 89.6 A
- 480V Volt (v)
- 4-point axial mounting flange. Cables and connectors to be ordered separately.
- IP67, IP65
- Three Phase
- 10
- 5.24W Watt (w)
- Servo Motor
- 38 mm Millimeter (mm)
- 38mm (Diameter) x 80mm (Length) Millimeter (mm)
- 89.6 A Ampere (amp)
- 18.4 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 18.4 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 16.5 N.m for LXM32MD85N4 at 32 A, 400 V, three phase 16.5 N.m for LXM32MD85N4 at 32 A, 480 V, three phase 16.5 N.m for LXM32MC10N4 at 40 A, 400 V, three phase 16.5 N.m for LXM32MC10N4 at 40 A, 480 V, three phase N-m
- 5.24W
- medium moment of inertia with maximum mechanical speed
- 1 YEAR
- 19 kg Kilograms (kg)
- BLACK
- 4000RPM RPM
- 4800 W for LXM32.D72N4 at 24 A, 400 V, three phase 4800 W for LXM32.D72N4 at 24 A, 480 V, three phase 5180 W for LXM32MD85N4 at 32 A, 400 V, three phase 5180 W for LXM32MD85N4 at 32 A, 480 V, three phase 5180 W for LXM32MC10N4 at 40 A, 400 V, three phase 5180 W for LXM32MC10N4 at 40 A, 480 V, three phase Watt (w)
- 480V Volt (V)
Servo Motor-BMH1901P31A2A Trade Information
- Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
- 30 Piece Per Week
- 5 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface encoder (131072 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 23.2A and a continuous power of 5.24W. The shaft dimensions are 38mm (Diameter) x 80mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP67 (with kit) rated product. Its dimensions are 190mm (Length) x 190mm (Width), centring collar dimensions are 4mm (Depth) x 180mm (Diameter) with 215mm circle diameter of the mounting hole. It weighs 19kg. This product is compatible with Lexium 32 servo drives. It supports international standard 190mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
