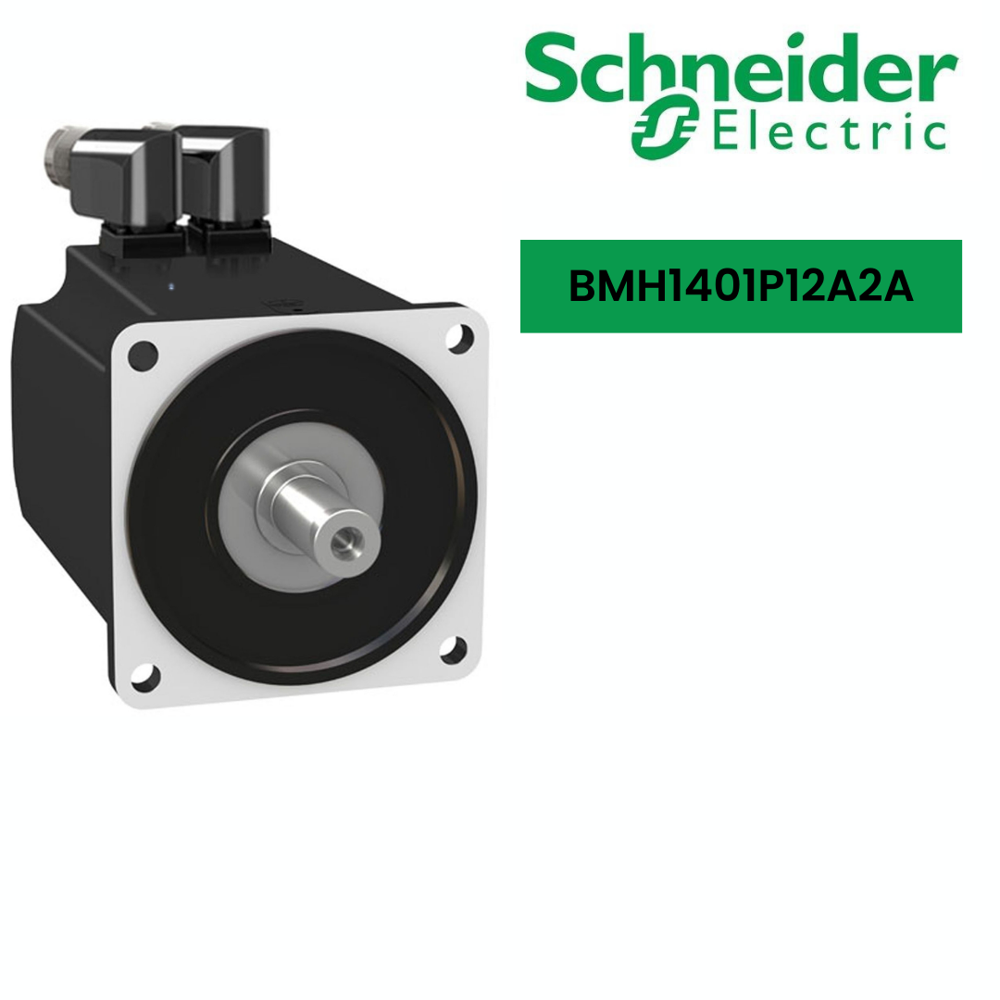

Servo Motor-BMH1401P12A2A

75378.45 INR/Piece

Get a Price/Quote

Product Details:

Material YES
Torque 6.9 N.m for LXM32.D30M2 at 10 A, 230 V, single phase 7.7 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 7.7 N.m for LXM32.D30N4 at 10 A, 480 V, three phase N-m
Warranty 1 YEAR
Features maximum mechanical speed
Rated Current 29.8 A Ampere (amp)
Voltage 480V Volt (v)
Power Rating 0.15kW to 11kW
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor-BMH1401P12A2A Price And Quantity

Minimum Order Quantity 1 Piece
Price 75378.45 INR/Piece

Servo Motor-BMH1401P12A2A Product Specifications

Power 2.85W Watt (w)
Dimension (L*W*H) 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole Millimeter (mm)
Poles Number 10
Color BLACK
Current Type 29.8 A
Phase Three Phase
Rated Voltage 480V Volt (V)
Shaft Diameter 24 mm Millimeter (mm)
Torque 6.9 N.m for LXM32.D30M2 at 10 A, 230 V, single phase 7.7 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 7.7 N.m for LXM32.D30N4 at 10 A, 480 V, three phase N-m
IP Rating IP54
Output Power 1450 W for LXM32.D30M2 at 10 A, 230 V, single phase 2400 W for LXM32.D30N4 at 10 A, 400 V, three phase 2400 W for LXM32.D30N4 at 10 A, 480 V, three phase Watt (w)
Mounting Type International standard flange
Warranty 1 YEAR
Features maximum mechanical speed
Speed 4000 RPM
Weight 8 kg Kilograms (kg)
Material YES
Power Rating 0.15kW to 11kW
Voltage 480V Volt (v)
Product Type Servo Motor
Rated Current 29.8 A Ampere (amp)

Servo Motor-BMH1401P12A2A Trade Information

Payment Terms Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 30 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end without holding brake. It is an equipped with a multi-turn SinCos Hiperface feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 8.58A and a continuous power of 2.85W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 152mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 8kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D30M2 at 230V single phase and LXM32.D30N4 at 400V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
