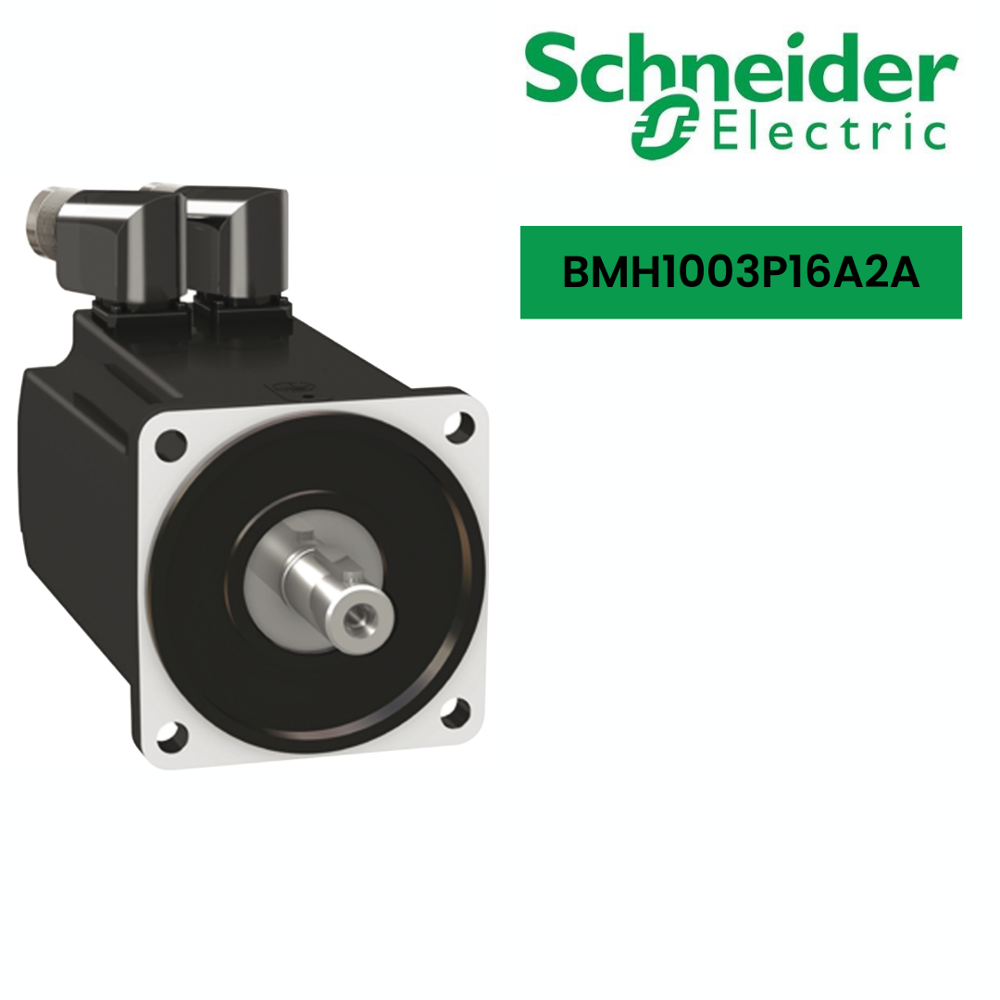

Servo Motor-BMH1003P16A2A
48630.75 INR/Piece
Product Details:
- Material YES
- Current Type 29.1 A
- Features medium moment of inertia with maximum mechanical speed
- Power Rating 3.3W
- Warranty 1 YEAR
- Voltage 480V Volt (v)
- Rated Current 29.1 A Ampere (amp)
- Click to View more
X
Servo Motor-BMH1003P16A2A Price And Quantity
- 48630.75 INR/Piece
- 1 Piece
Servo Motor-BMH1003P16A2A Product Specifications
- 6.2 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 6.2 N.m for LXM32.D30N4 at 10 A, 480 V, three phase N-m
- 480V Volt (V)
- 480V Volt (v)
- 29.1 A Ampere (amp)
- 6000RPM RPM
- IP54
- 4-point axial mounting flange
- 192.6mm (Length) x 100mm (Width) Millimeter (mm)
- YES
- 29.1 A
- 3.3W. Watt (w)
- 10
- medium moment of inertia with maximum mechanical speed
- 19 mm Millimeter (mm)
- Servo Motor
- 1 YEAR
- BLACK
- 3.3W
- 2700 W for LXM32.D30N4 at 10 A, 400 V, three phase 2700 W for LXM32.D30N4 at 10 A, 480 V, three phase Watt (w)
- Three Phase
- 6.5 kg Kilograms (kg)
Servo Motor-BMH1003P16A2A Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 30 Piece Per Week
- 5 Days
- Yes
- AIP WITH CARTUN
- Asia
- All India
Product Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 7.69A and a continuous power of 3.3W. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 192.6mm (Length) x 100mm (Width), centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It weighs 6.5kg. This product is compatible with Lexium 32 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
