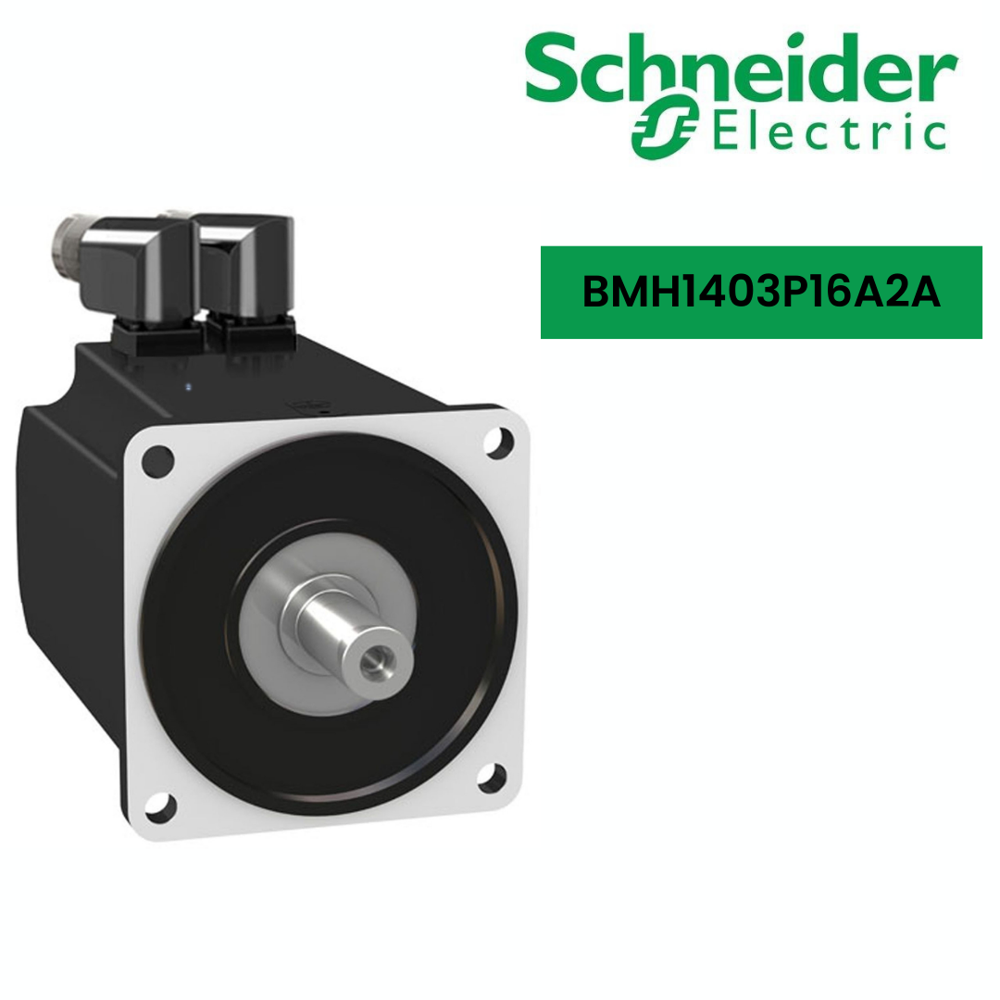

Servo Motor-BMH1403P16A2A
81471.95 INR/Piece
Product Details:
- Torque 13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase N-m
- Rated Voltage 480V Volt (V)
- Poles Number 10
- IP Rating IP54
- Warranty 1 YEAR
- Rated Current 62.3 A Ampere (amp)
- Click to View more
X
Servo Motor-BMH1403P16A2A Price And Quantity
- 5 Piece
- 81471.95 INR/Piece
Servo Motor-BMH1403P16A2A Product Specifications
- 62.3 A
- 4-point axial mounting flange
- 232mm (Length) x 140mm (Width), Millimeter (mm)
- IP54
- 16kg Kilograms (kg)
- 4700 W for LXM32.D72N4 at 24 A, 400 V, three phase 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase Watt (w)
- medium moment of inertia with maximum mechanical speed
- 4.8W
- 480V Volt (v)
- 10
- 480V Volt (V)
- 62.3 A Ampere (amp)
- 1 YEAR
- Servo Motor
- 13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase N-m
- 4.8W Watt (w)
- Three Phase
- 4000RPM RPM
- BLACK
Servo Motor-BMH1403P16A2A Trade Information
- Cash Advance (CA), Cheque, Cash in Advance (CID), Paypal
- 30 Piece Per Week
- 5 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 18A and a continuous power of 4.8W. The shaft dimensions are 24mm (Diameter) x 50mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 232mm (Length) x 140mm (Width), centring collar dimensions are 3.5mm (Depth) x 130mm (Diameter) with 165mm circle diameter of the mounting hole. It weighs 16kg. This product is compatible with Lexium 32 servo drives. It supports international standard 140mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
