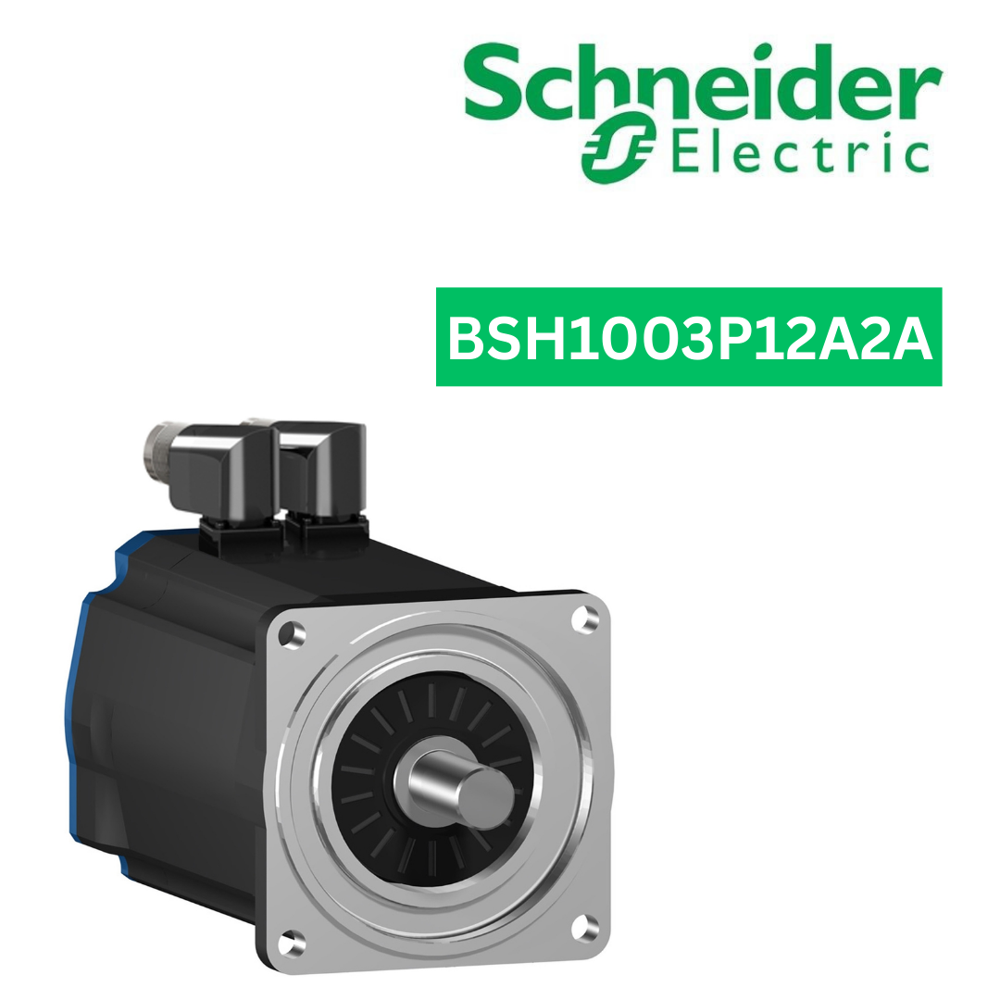

Servo Motor -BSH1003P12A2A

80577.0 INR/Piece

Get a Price/Quote

Product Details:

Voltage 480 Volt (v)
Ambient Temperature 120 Celsius (oC)
Warranty 1YEAR
Current Type 6.6
Poles Number 8
IP Rating IP50
Power Rating 2000W
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BSH1003P12A2A Price And Quantity

Price 80577.0 INR/Piece
Minimum Order Quantity 1 Piece

Servo Motor -BSH1003P12A2A Product Specifications

Product Type Servo Motor
IP Rating IP50
Phase Three Phase
Poles Number 8
Current Type 6.6
Mounting Type International standard flange
Weight 7.4 Kilograms (kg)
Output Power 2000 Watt (w)
Starting Type Electric Start
Warranty 1YEAR
Ambient Temperature 120 Celsius (oC)
Voltage 480 Volt (v)
Speed 6000 RPM
Efficacy Other
Frequency (MHz) 8 kHz Hertz (HZ)
Rated Voltage 480 Volt (V)
Rated Current 28.3A Ampere (amp)
Dimension (L*W*H) 241mm (Length) x 100mm (Width), with 115mm Millimeter (mm)
Power 2000 Watt (w)
Operating Temperature 100 Celsius (oC)
Shaft Diameter 19MM Millimeter (mm)
Rated Frequency 8 Hertz (HZ)
Protect Feature Other
Power Rating 2000W

Servo Motor -BSH1003P12A2A Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 15 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 8-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 6000RPM and IP50 parallel keyed shaft without holding brake. It has a multiturn SinCos Hiperface high-res absolute encoder (131072 points/turn x 4096 turns) giving an angular shaft position precise, less than 1.3arc min. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density. It is a synchronous servo motor with 480V supply voltage, 6.6A continuous stall current, 3.14W maximum continuous power and 6.7N.m to 8N.m continuous stall torque. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable angular connectors for electrical connection. It is an IP50 rated product. Its dimensions are 241mm (Length) x 100mm (Width), with 115mm circle diameter of the mounting hole. It weighs 7.4kg. The entire range conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, is UL and CSA certified. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Lexium 05 meets your requirements for the simplest, most reliable and most cost-effective machines. The high concentrate solution for your machines, this generation of motors and drives gives benefit of powerful solutions to design and optimise machines.
