Variable Speed Drive -ATV310HD11N4E

34656.32 INR/Piece

Get a Price/Quote

Product Details:

Frequency 60 Hertz (HZ)
Warranty 1YEAR
Rated Voltage 460 Volt (V)
Overheating Protection YES
Power Rating 11KW
Connector Type RJ45 (on front face) for Modbus
IP Rating IP20
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV310HD11N4E Price And Quantity

Minimum Order Quantity 1 Piece
Price 34656.32 INR/Piece

Variable Speed Drive -ATV310HD11N4E Product Specifications

Frequency 60 Hertz (HZ)
Connection Type Terminal, clamping capacity: 10 mm , AWG 10 (L1, L2, L3, PA/+, PB, U, V, W)
Warranty 1YEAR
Rated Voltage 460 Volt (V)
Overheating Protection YES
Frequency (MHz) 400 Hertz (HZ)
Weight 3.7 Kilograms (kg)
Connector Type RJ45 (on front face) for Modbus
Power Rating 11KW
IP Rating IP20
Product Type Variable speed drive
Rated Current 36 Ampere (amp)
Application Simple machine
Phase THREE PHASE

Variable Speed Drive -ATV310HD11N4E Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 40 Piece Per Week
Delivery Time 4 Days
Sample Available No
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

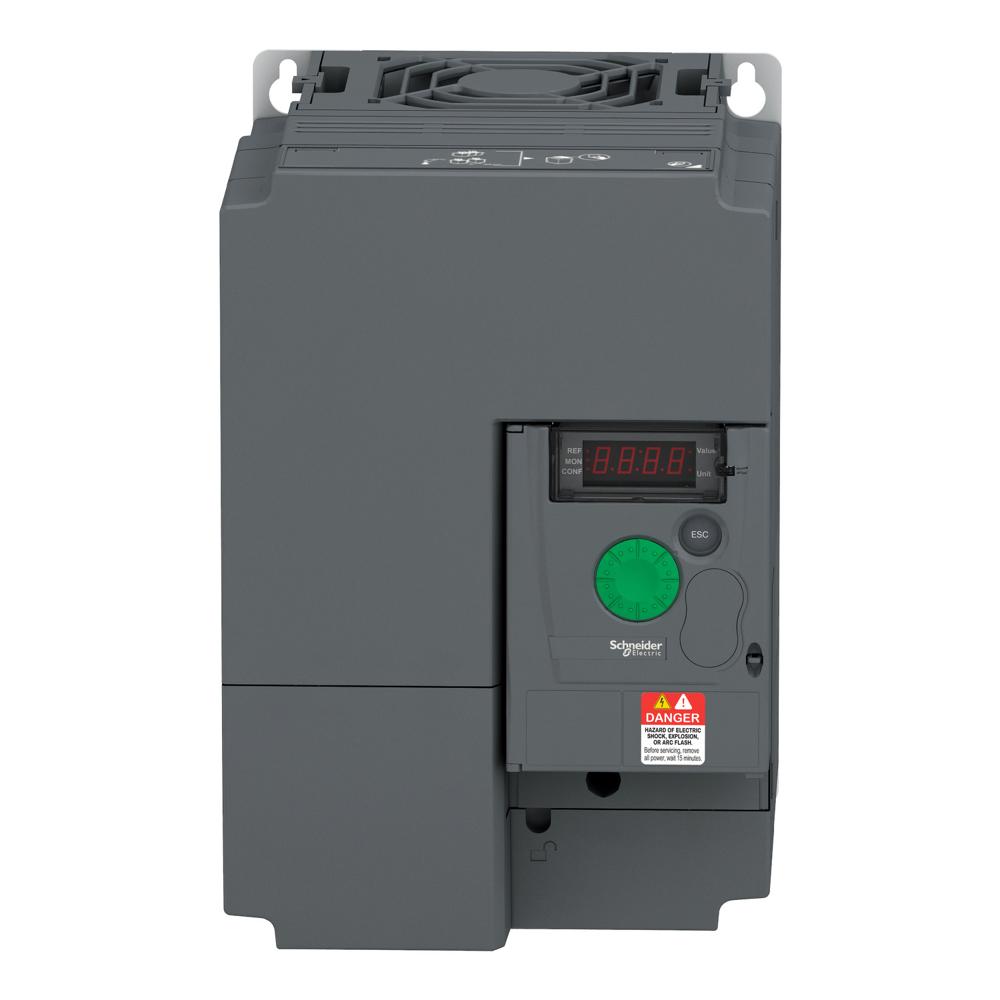

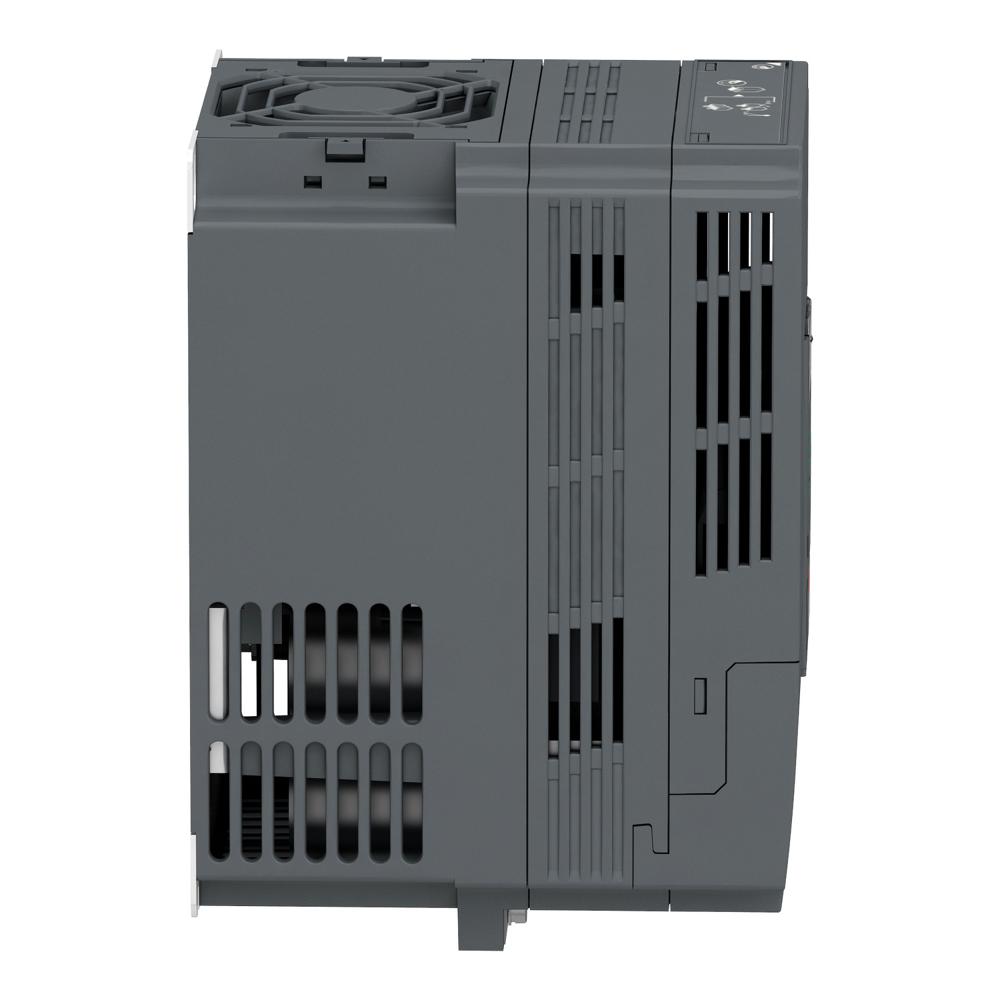

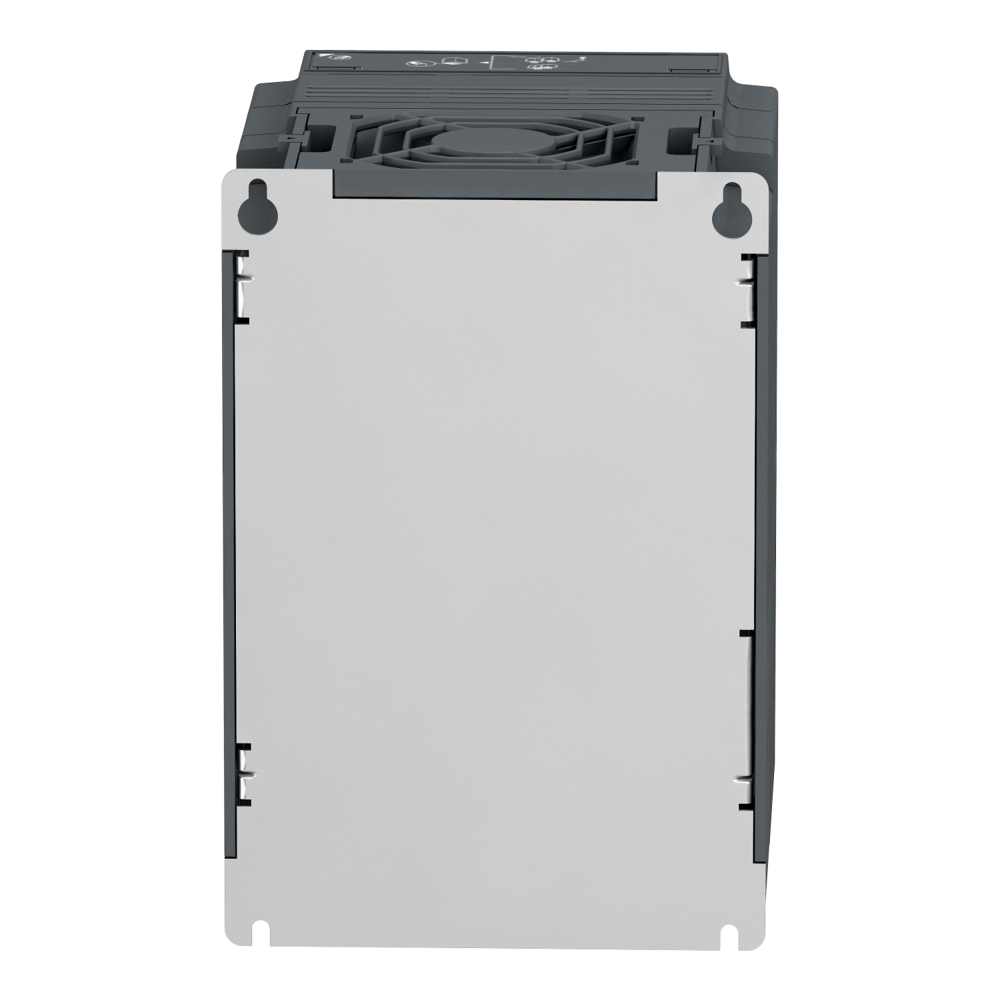

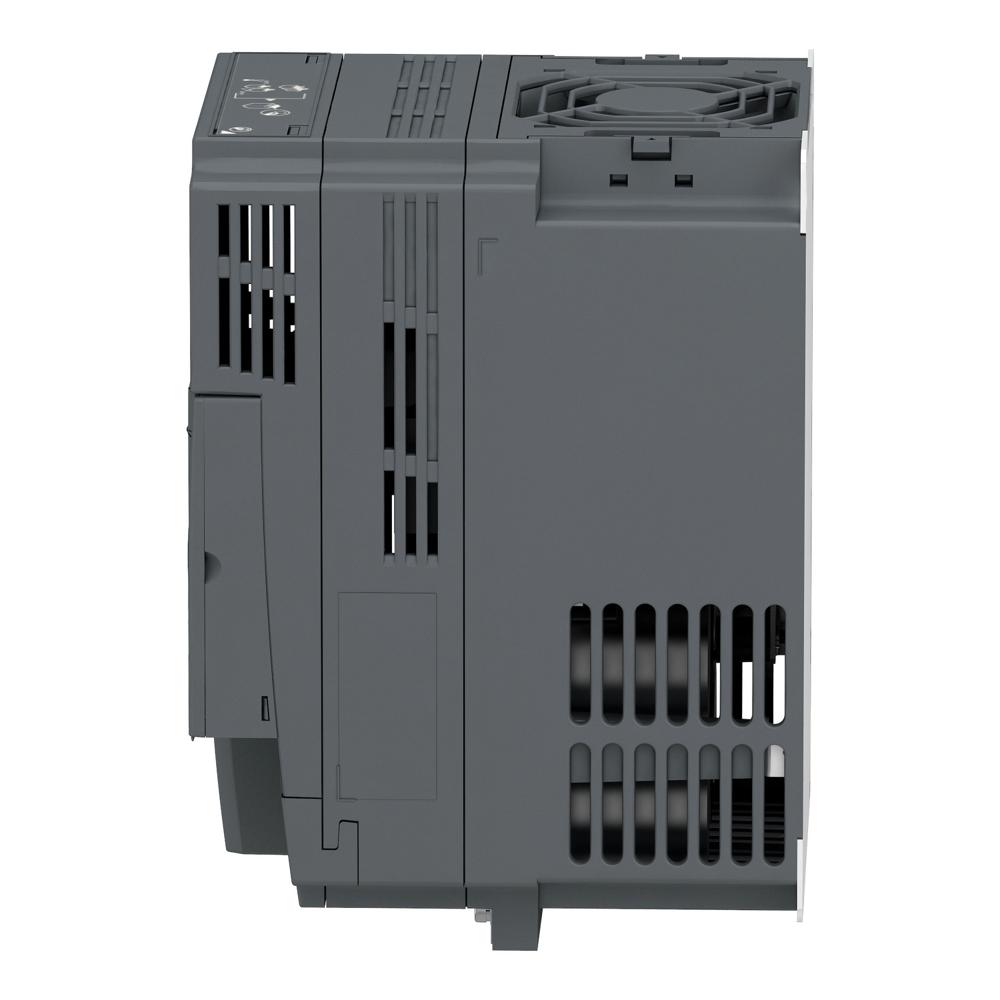

This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 11kW/15HP or ND 15kW/20HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 3.7kg and its dimensions are, 150mm wide, 232mm high, 171mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine
