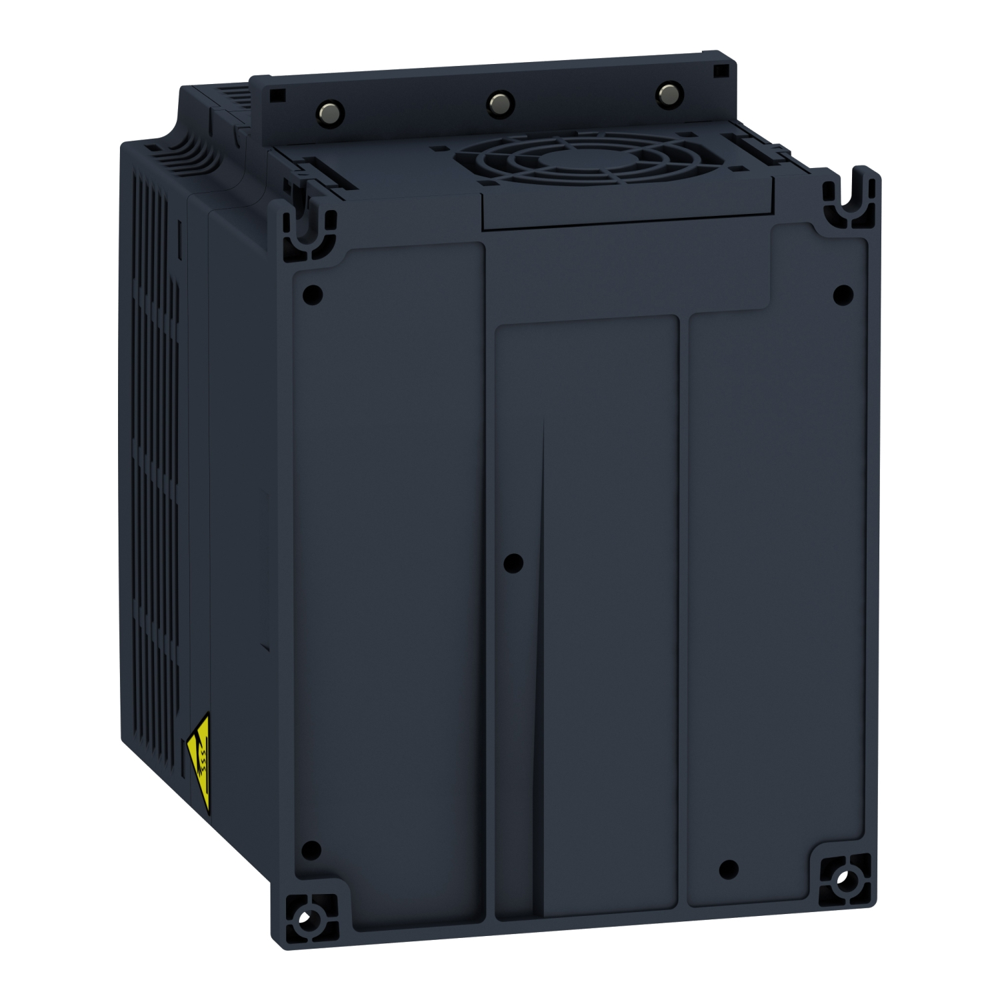

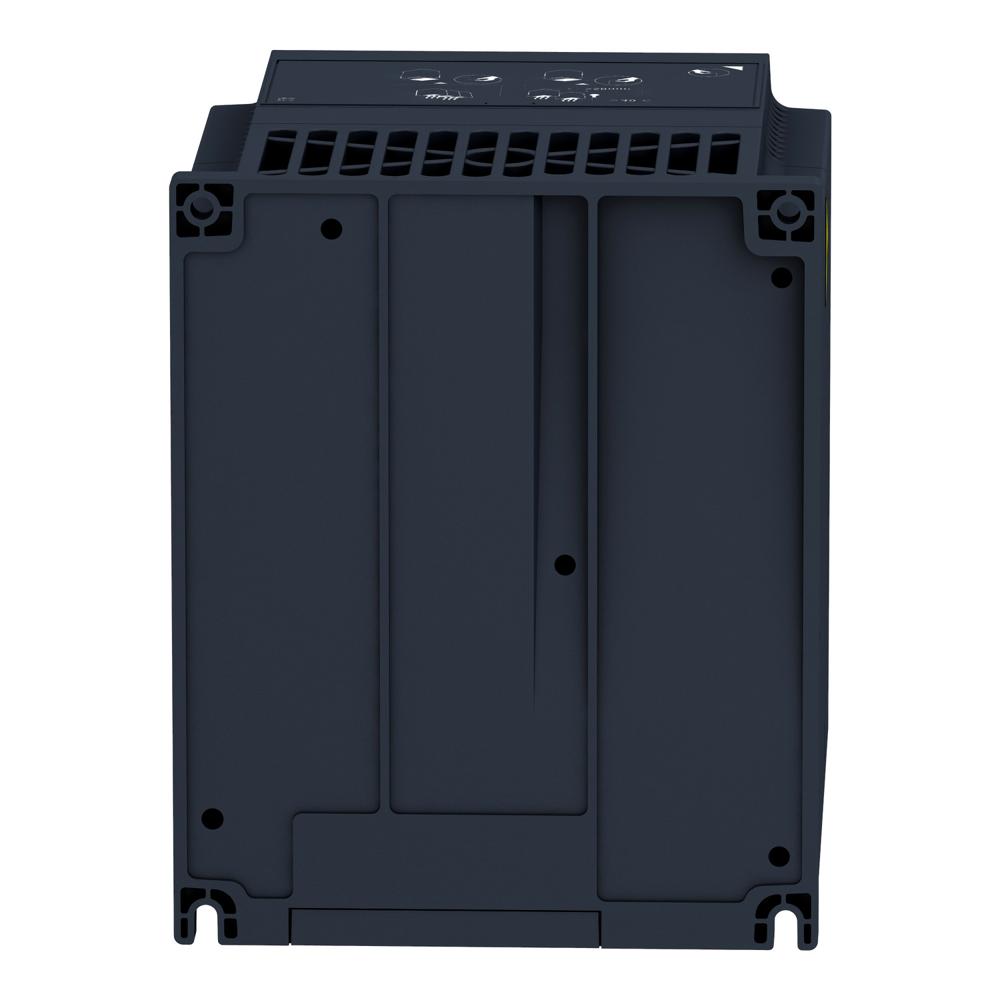

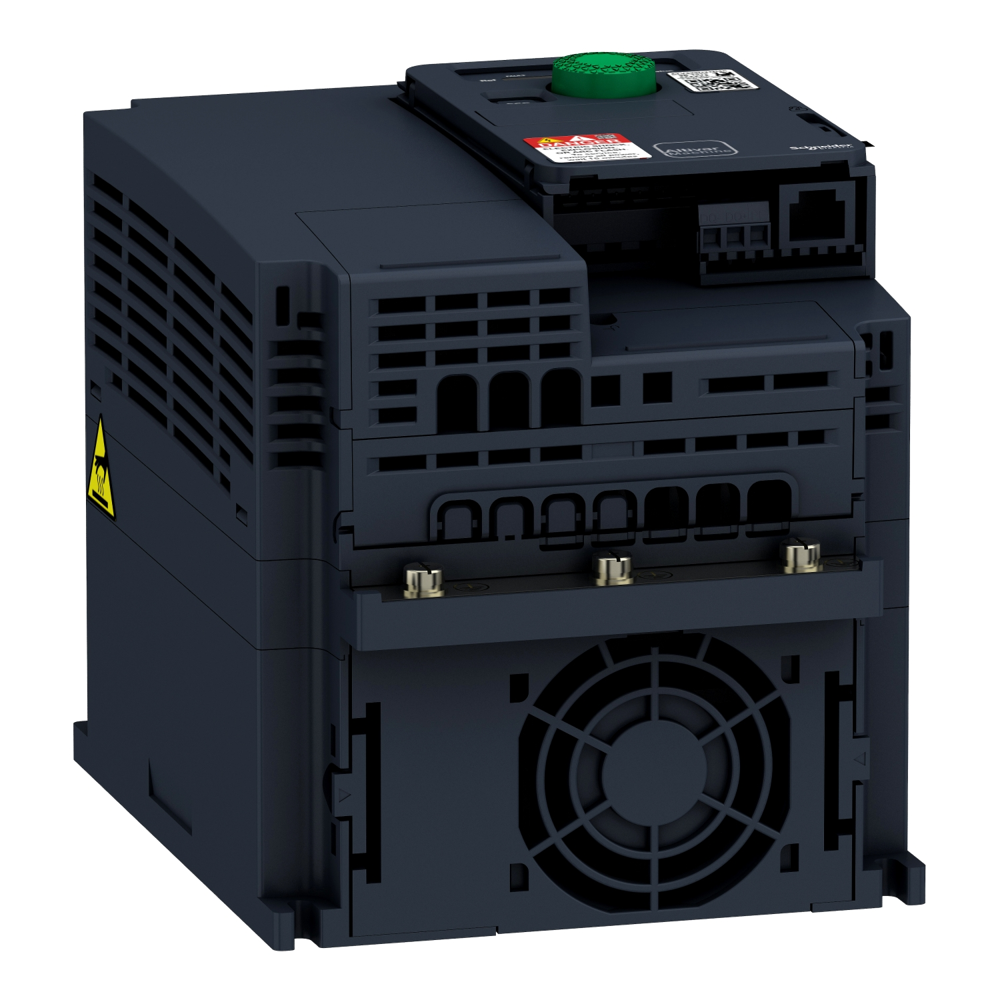

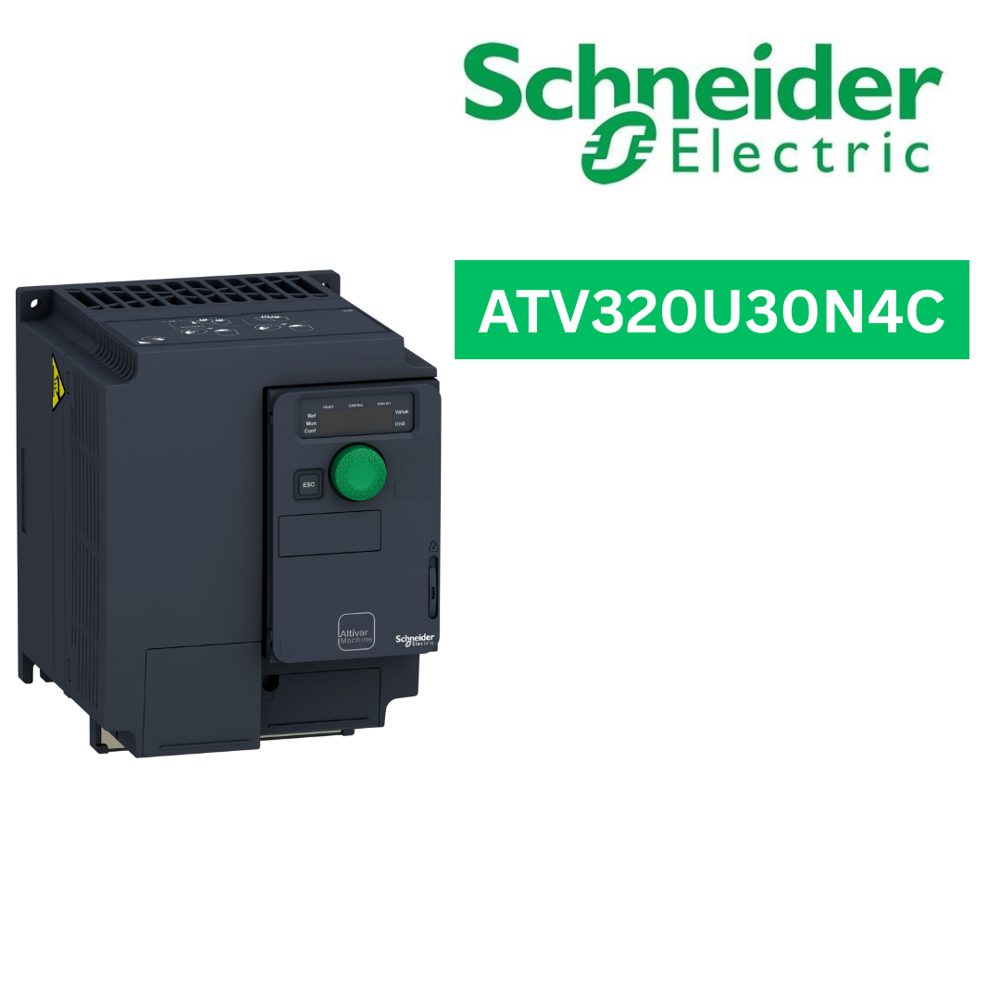

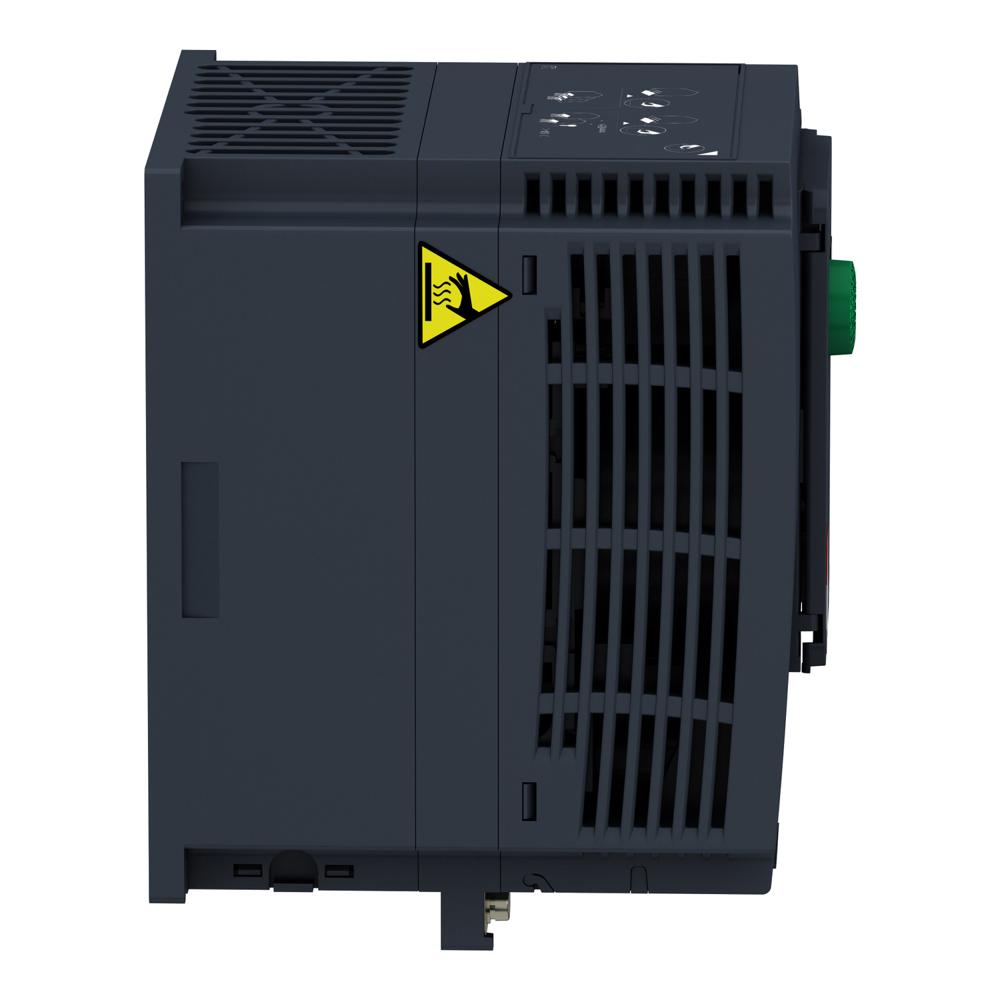

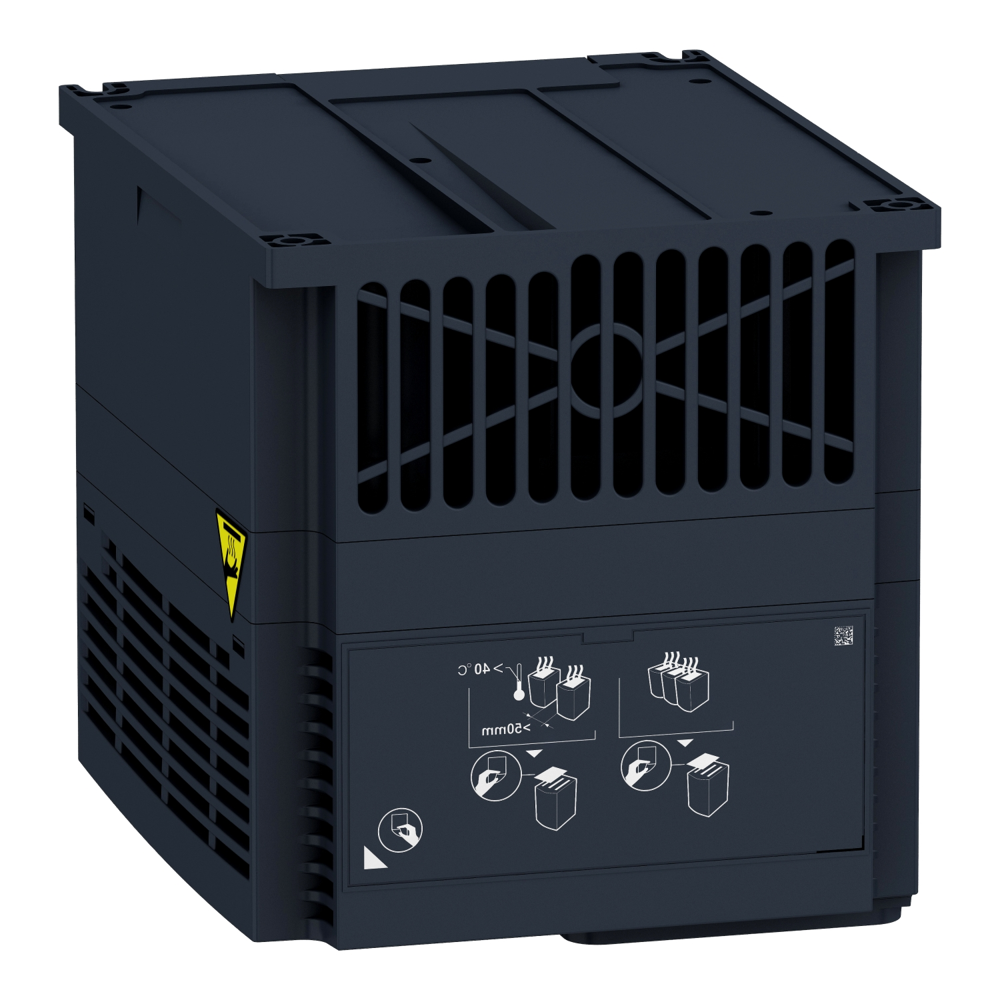

Variable Speed Drive -ATV320U30N4C
19093.44 INR/Piece
Product Details:
- IP Rating IP20
- Warranty 1Year
- Rated Current 7.1 Ampere (amp)
- Phase Three Phase
- Frequency 60 Hertz (HZ)
- Rated Voltage 500 Volt (V)
- Power Rating 3kW
- Click to View more
X
Variable Speed Drive -ATV320U30N4C Price And Quantity
- 2 Piece
- 19093.44 INR/Piece
Variable Speed Drive -ATV320U30N4C Product Specifications
- 1Year
- 7.1 Ampere (amp)
- 60 Hertz (HZ)
- IP20
- 60 Hertz (HZ)
- 500 Volt (V)
- 3kW
- 70 Celsius (oC)
- YES
- Complex machines
- 2.1 Kilograms (kg)
- Variable speed drive
- Three Phase
Variable Speed Drive -ATV320U30N4C Trade Information
- Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
- 150 Piece Per Month
- 4 Days
- Yes
- Within a certain price range free samples are available
- Asia
- All India
Product Description
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 3kW / 4hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email

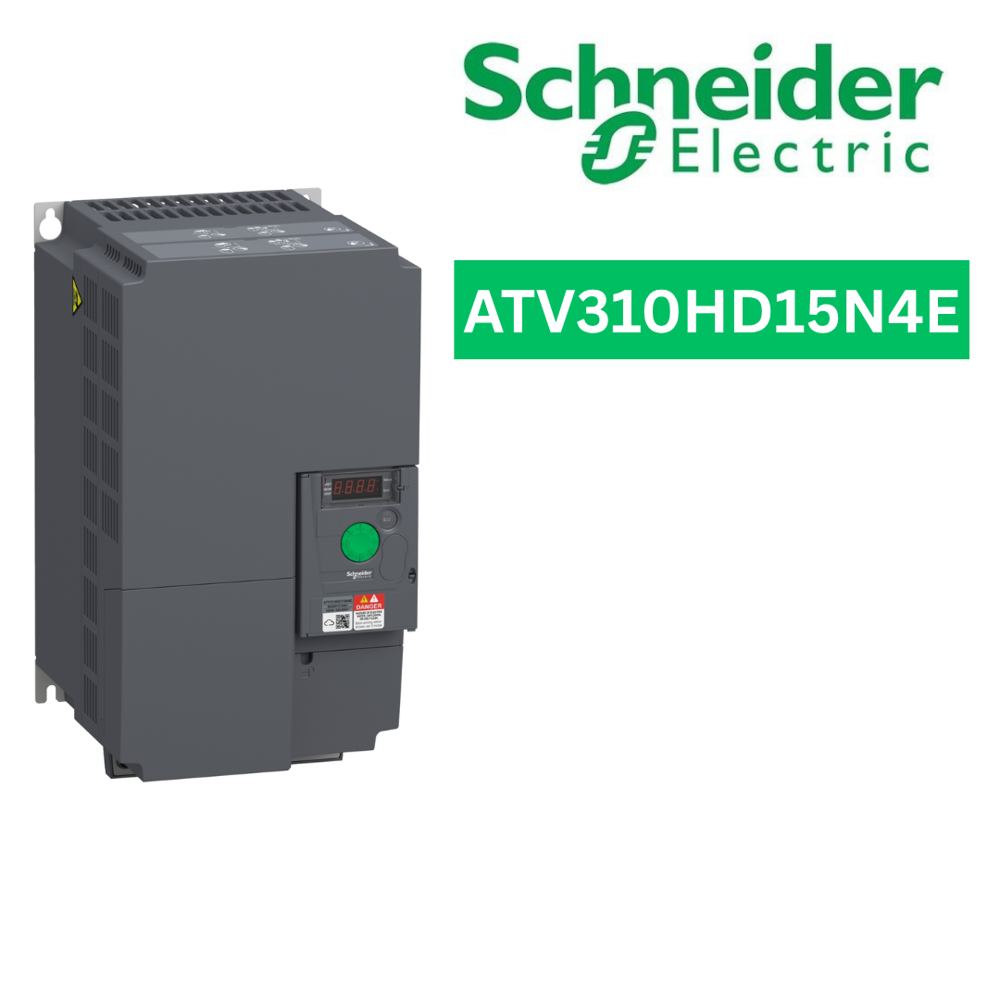

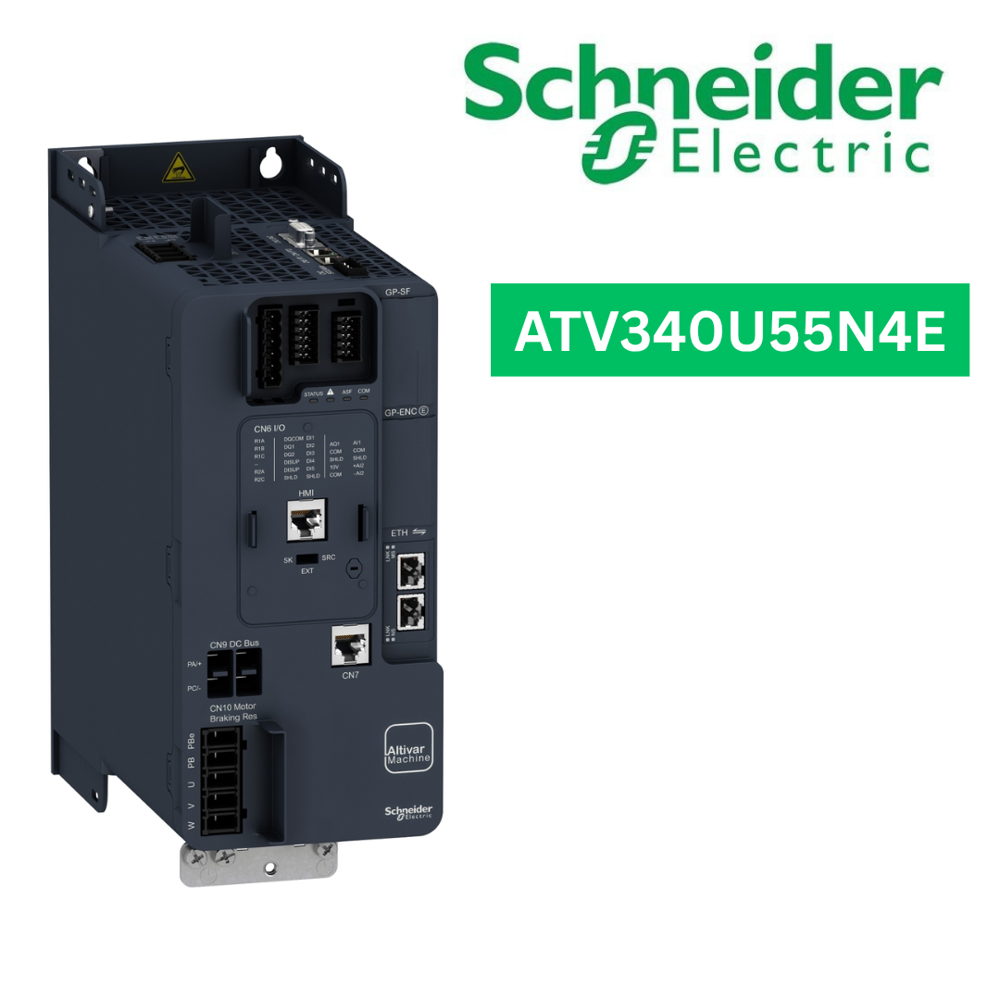

Other Products in 'Variable Speed Drive' category
