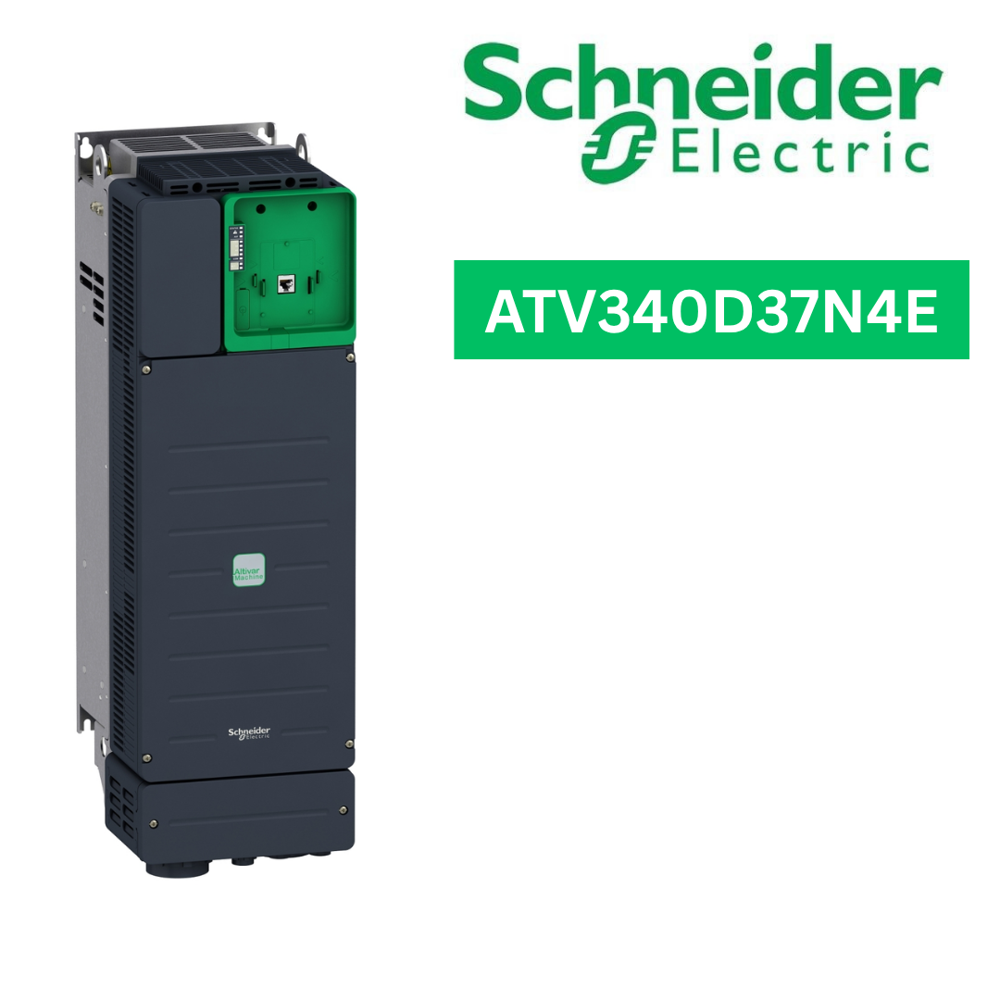

Variable Speed Drive -ATV340D37N4E

119705.28 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 37KW
Rated Current 74 Ampere (amp)
Rated Voltage 480 Volt (V)
Shape RECTANGLE
Operating Temperature 60 Celsius (oC)
Phase THREE PHASE
Frequency 60 Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV340D37N4E Price And Quantity

Price 119705.28 INR/Piece
Minimum Order Quantity 1 Piece

Variable Speed Drive -ATV340D37N4E Product Specifications

Connection Type Screw terminal, clamping capacity: 0.75...1.5 mm for control Screw terminal, clamping capacity: 35...50 mm for line side Screw terminal, clamping capacity: 35...50 mm for DC bus Screw terminal, clamping capacity: 50 mm for motor
Phase THREE PHASE
Output Type Relay outputs R1A Relay outputs R1C electrical durability 100000 cycles Relay outputs R2A Relay outputs R2C electrical durability 100000 cycles
IP Rating IP20
Input Voltage 380 Volt (V)
Dimension (L*W*H) 213 Millimeter (mm)
Frequency 60 Hertz (HZ)
Connector Type 3 RJ45
Mounting Type WALL MOUNT
Application Machine
Rated Current 74 Ampere (amp)
Color BLACK
Rated Voltage 480 Volt (V)
Power Rating 37KW
Frequency (MHz) 60 Hertz (HZ)
Product Type Variable speed drive
Shape RECTANGLE
Operating Temperature 60 Celsius (oC)
Warranty 1YEAR
Weight 28 Kilograms (kg)

Variable Speed Drive -ATV340D37N4E Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 36 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 37kW / 50hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 28.4kg and its dimensions are, 213mm wide, 660mm high, 262mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

SEVRO DRIVE-ATV630C11N4 Price : 359877.44 INR/Piece Minimum Order Quantity : 5 IP Rating : IP00 Phase : 3 PHASE Weight : 82 Kilograms (kg) Warranty : 1YEAR Frequency : 60 Hertz (HZ) Operating Temperature : 60 Celsius (oC) Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Color : BLACK Rated Voltage : 480 Volt (V) Application : Process and utilities Overheating Protection : YES Power Rating : 110KW Rated Current : 211 Ampere (amp) Mounting Type : Wall mount Dimension (L*W*H) : 320 Millimeter (mm) Shape : RECTANGLE Output Type : Softwareconfigurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Softwareconfigurable current DQ, DQ+: 30 V DC Softwareconfigurable current DQ, DQ+: 100 mA Connection Type : Control: removable screw terminals 0.5...1.5 mm /AWG 20...AWG 16 Line side: screw terminal 2 x 50...3 x 120 mm /2 x AWG 1/0...2 x 300 kcmil Motor: screw terminal 2 x 50...3 x 120 mm /2 x AWG 1/0...2 x 300 kcmil Connector Type : RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial Input Voltage : 380 Ampere (A)

Send Inquiry

Variable Speed Drive -ATV340D11N4E Price : 65021.44 INR/Piece Minimum Order Quantity : 14 IP Rating : IP20 Phase : 3 Phase Weight : 9.5 Kilograms (kg) Warranty : 1Year Frequency : 60 Hertz (HZ) Operating Temperature : 60 Celsius (oC) Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Color : Black Rated Voltage : 400 Volt (V) Application : Machine Overheating Protection : YES Power Rating : 11kW Rated Current : 24 Ampere (amp) Mounting Type : Cabinet mount Dimension (L*W*H) : 180 Millimeter (mm) Shape : Rectangle Output Type : Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits Connection Type : Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 4...25 mm for line side Screw terminal, clamping capacity: 4...25 mm for DC bus Screw terminal, clamping capacity: 2.5...25 mm for motor Connector Type : 3 RJ45

Send Inquiry

Variable Speed Drive -ATV340D15N4E Price : 70161.92 INR/Piece Minimum Order Quantity : 15 IP Rating : IP20 Phase : THREE PHASE Weight : 9.5 Kilograms (kg) Warranty : 1YEAR Frequency : 60 Hertz (HZ) Operating Temperature : 60 Celsius (oC) Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Rated Voltage : 480 Volt (V) Application : Machine Overheating Protection : YES Power Rating : 15KW Rated Current : 32 Ampere (amp) Mounting Type : Cabinet mount Dimension (L*W*H) : 180 Millimeter (mm) Shape : RECTANGLE Output Type : Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits Connection Type : Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 6...25 mm for line side Screw terminal, clamping capacity: 6...25 mm for DC bus Screw terminal, clamping capacity: 4...25 mm for motor Input Voltage : 380 Volt (V)

Send Inquiry

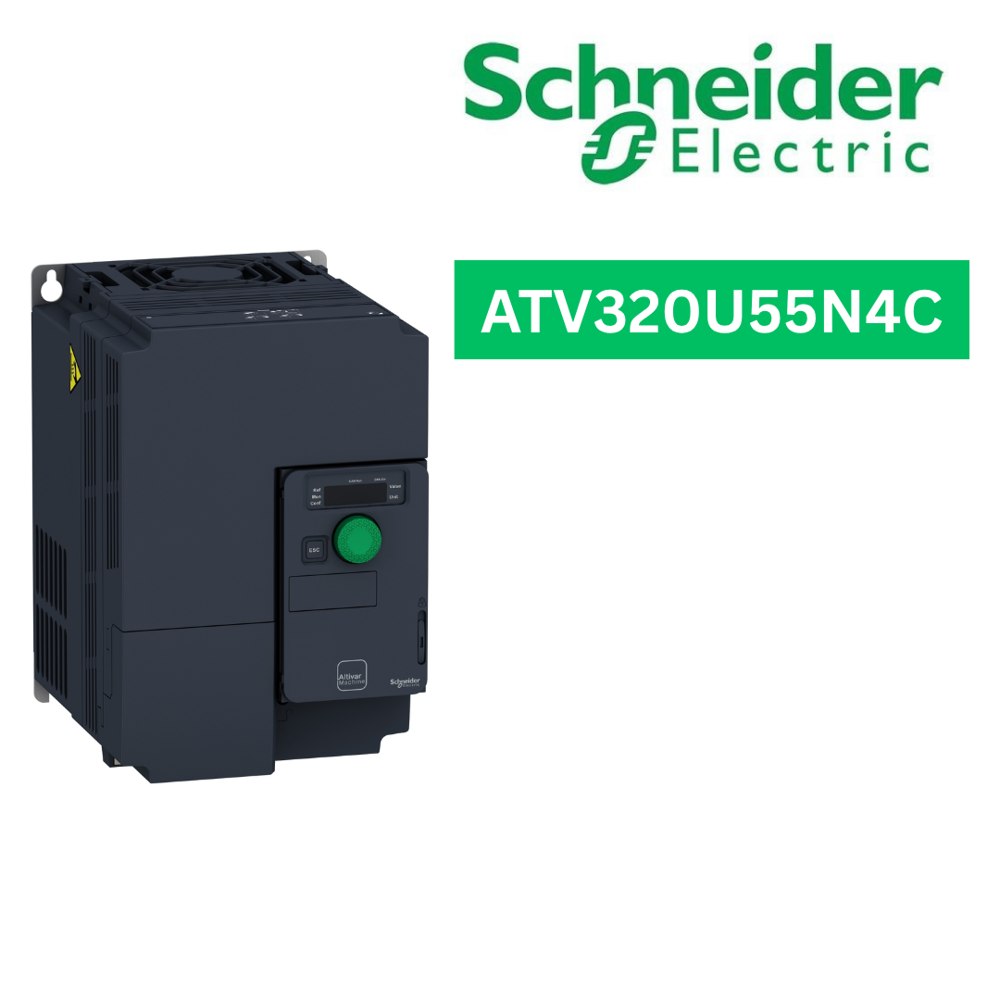

Variable Speed Drive -ATV320U55N4C Price : 28736.0 INR/Piece Minimum Order Quantity : 13 IP Rating : IP20 Phase : 3 Phase Weight : 3.5 Kilograms (kg) Warranty : 1Year Frequency : 60 Hertz (HZ) Operating Temperature : 70 Celsius (oC) Product Type : Variable speed drive Frequency (MHz) : 60 Hertz (HZ) Color : Black Rated Voltage : 500 Volt (V) Application : Complex machines Power Rating : 5.5kW Rated Current : 14.3 Ampere (amp)
