Variable Speed Drive -ATV610D11N4

45573.12 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20
Power Rating 11KW
Rated Current 23 Ampere (amp)
Warranty 1 YEAR
Operating Temperature 60 Celsius (oC)
Frequency 60 Hertz (HZ)
Shape RECTANGLE
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV610D11N4 Price And Quantity

Price 45573.12 INR/Piece
Minimum Order Quantity 1 Piece

Variable Speed Drive -ATV610D11N4 Product Specifications

Frequency (MHz) 60 Hertz (HZ)
IP Rating IP20
Warranty 1 YEAR
Protection Level Other
Input Voltage 380 Volt (V)
Rated Current 23 Ampere (amp)
Weight 7.7 Kilograms (kg)
Power Rating 11KW
Application Fan, pump, compressor, conveyor
Rated Voltage 415 Volt (V)
Shape RECTANGLE
Overheating Protection YES
Product Type Variable Speed Drive
Connection Type Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 4...16 mm Motor, screw terminal: 4...16 mm
Frequency 60 Hertz (HZ)
Operating Temperature 60 Celsius (oC)
Phase 3 PHASE
Output Type Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Connector Type 1 RJ45 (on the remote graphic terminal) for Modbus serial

Variable Speed Drive -ATV610D11N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 11kW / 15hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 7.5kW / 10hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive products IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 7.2kg and its dimensions are, 171mm wide, 360mm high, 233mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

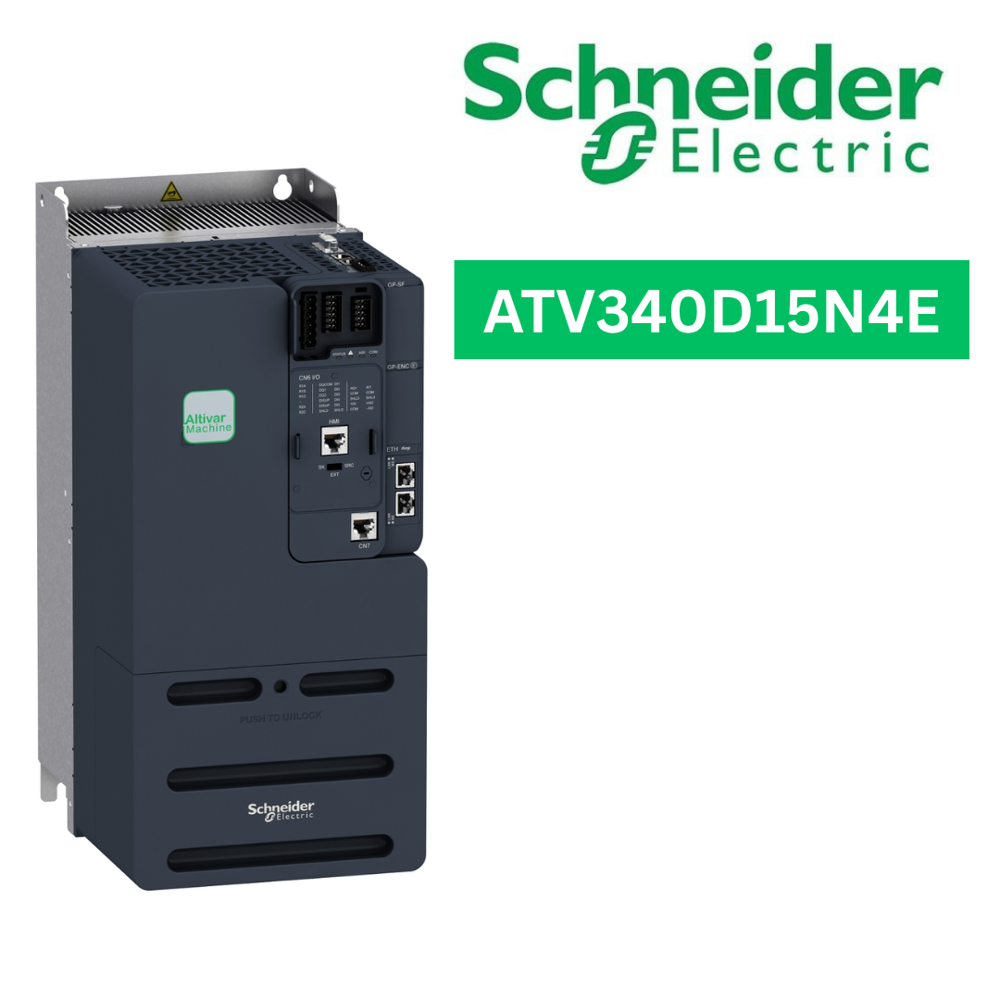

Variable Speed Drive -ATV340D15N4E Price : 70161.92 INR/Piece Minimum Order Quantity : 15 Phase : THREE PHASE Rated Voltage : 480 Volt (V) Product Type : Variable speed drive Frequency : 60 Hertz (HZ) Warranty : 1YEAR Weight : 9.5 Kilograms (kg) Rated Current : 32 Ampere (amp) Power Rating : 15KW Frequency (MHz) : 60 Hertz (HZ) IP Rating : IP20 Dimension (L*W*H) : 180 Millimeter (mm) Mounting Type : Cabinet mount Application : Machine Input Voltage : 380 Volt (V) Output Type : Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits Overheating Protection : YES Connection Type : Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 6...25 mm for line side Screw terminal, clamping capacity: 6...25 mm for DC bus Screw terminal, clamping capacity: 4...25 mm for motor Operating Temperature : 60 Celsius (oC)

Send Inquiry

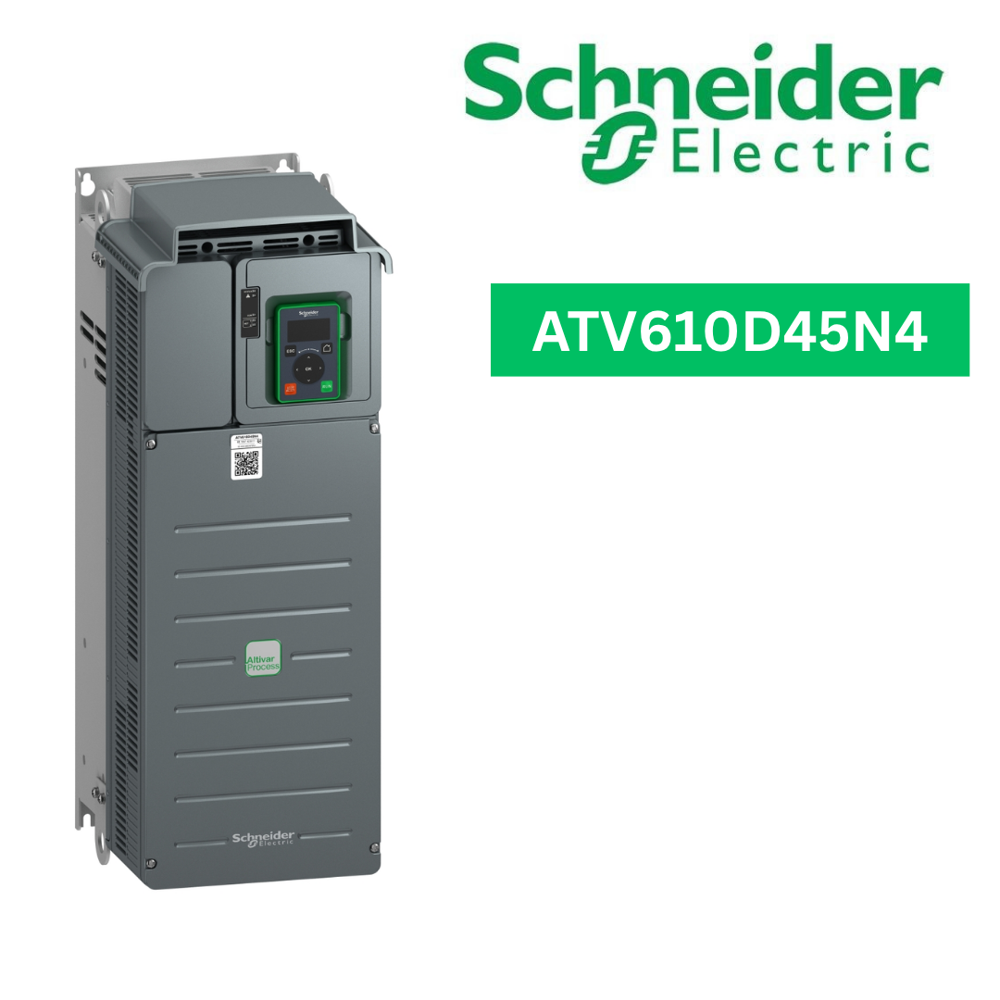

Variable Speed Drive -ATV610D45N4 Price : 101963.2 INR/Piece Minimum Order Quantity : 12 Phase : THREE PHASE Rated Voltage : 460 Volt (V) Product Type : Variable speed drive Frequency : 60 Hertz (HZ) Warranty : 1 YEAR Weight : 25.5 Kilograms (kg) Rated Current : 112 Ampere (amp) Power Rating : 45KW Frequency (MHz) : 60 Hertz (HZ) IP Rating : IP20 Dimension (L*W*H) : 226 Millimeter (mm) Mounting Type : WALL MOUNT Application : Fan, pump, compressor, conveyor Input Voltage : 380 Volt (V) Connector Type : 1 RJ45 (on the remote graphic terminal) for Modbus serial Overheating Protection : YES Connection Type : Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 35...50 mm Motor, screw terminal: 50 mm Protection Level : IP54
