Product Video

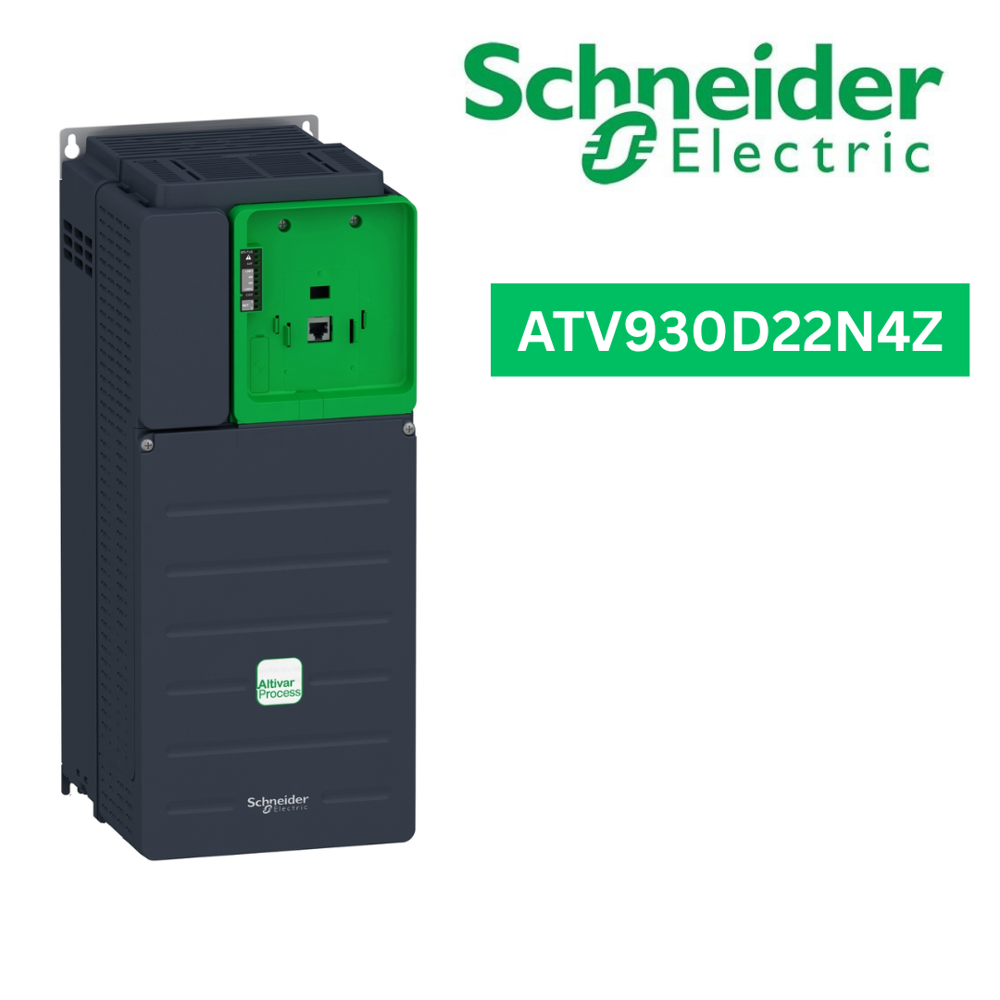

Variable Speed Drive-ATV930D22N4Z

84345.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 480 Volt (V)
Power Rating 22KW
Phase 3-PHASE
IP Rating IP21
Frequency 60 Hertz (HZ)
Rated Current 46 Ampere (amp)
Connector Type 2 RJ45 1 RJ45
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive-ATV930D22N4Z Price And Quantity

Price 84345.0 INR/Piece
Minimum Order Quantity 1 Piece

Variable Speed Drive-ATV930D22N4Z Product Specifications

Rated Current 46 Ampere (amp)
Weight 14 Kilograms (kg)
Protection Level IP65
Connector Type 2 RJ45 1 RJ45
Warranty 1 YEAR
Frequency 60 Hertz (HZ)
IP Rating IP21
Product Type Variable speed drive
Frequency (MHz) 60 Hertz (HZ)
Application Industrial application
Power Rating 22KW
Dimension (L*W*H) 190 Millimeter (mm)
Input Voltage 24 Volt (V)
Phase 3-PHASE
Rated Voltage 480 Volt (V)

Variable Speed Drive-ATV930D22N4Z Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 60 Piece Per Week
Delivery Time 3 Days
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 22kW/30HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW/25HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

ATV930U22N4Z Price : 44164.0 INR/Piece Minimum Order Quantity : 1 Application : Process for industrial Phase : 3 PHASE Power Rating : 2.2KW Connection Type : Control: screw terminal 0.5...1.5 mm /AWG 20...AWG 16 Line side: screw terminal 2.5...6 mm /AWG 14...AWG 10 Motor: screw terminal 2.5...6 mm /AWG 14...AWG 10 DC bus: screw terminal 2.5...6 mm /AWG 14...AWG 10 Weight : 5 Kilograms (kg) Rated Current : 5.6 Ampere (amp) Warranty : 1YEAR Rated Voltage : 480 Volt (V) Frequency (MHz) : 60 Hertz (HZ) Product Type : Variable speed drive IP Rating : IP20 Operating Temperature : 60 Celsius (oC) Overheating Protection : YES Color : BLACK GREEN Output Type : Softwareconfigurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits Frequency : 60 Hertz (HZ) Mounting Type : Cabinet mount Input Voltage : 24 Volt (V) Protection Level : Other Connector Type : 2 RJ45 1 RJ45

Send Inquiry

Variable Speed Drive-ATV71HD18N4Z Price : 166425.0 INR/Piece Minimum Order Quantity : 1 Application : Complex, highpower machines Phase : 3PHASE Power Rating : 18 KW Connection Type : Terminal, clamping capacity: 2.5 mm , AWG 14 (AI1/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal, clamping capacity: 35 mm , AWG 2 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/, PO, PA/+, PA, PB) Weight : 15 Kilograms (kg) Rated Current : 61 Milliampere (mA) Warranty : 1 YEAR Rated Voltage : 480 Volt (V) Frequency (MHz) : 60 Hertz (HZ) Product Type : Variable speed drive IP Rating : IP20 Operating Temperature : 10 Planck temperature () Overheating Protection : YES Color : WHITEBLACK Output Type : AO1 softwareconfigurable logic output 10 V 20 mA AO1 softwareconfigurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits AO1 softwareconfigurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits Frequency : 60 Hertz (HZ) Input Voltage : 24 Volt (V) Dimension (L*W*H) : 400 Millimeter (mm) Protection Level : IP65

Send Inquiry

Variable Speed Drive - ATV340U15N4E Price : 35981.76 INR/Piece Minimum Order Quantity : 1 Application : Machine Phase : THREE PHASE Power Rating : 1.5KW Connection Type : Screw terminal, clamping capacity: 1.5...4 mm for line side Screw terminal, clamping capacity: 4...6 mm for DC bus Screw terminal, clamping capacity: 1.5...4 mm for motor Screw terminal, clamping capacity: 0.2...2.5 mm for contro Weight : 1.7 Kilograms (kg) Rated Current : 4 Ampere (amp) Warranty : 1YEAR Rated Voltage : 480 Volt (V) Frequency (MHz) : 60 Hertz (HZ) Product Type : Variable speed drive IP Rating : IP20 Operating Temperature : 60 Celsius (oC) Overheating Protection : YES Color : BLACK Output Type : Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits Frequency : 60 Hertz (HZ) Dimension (L*W*H) : 200 Millimeter (mm)

Send Inquiry

Variable Speed Drive -ATV930U55N4Z Price : 53086.76 INR/Piece Minimum Order Quantity : 2 Application : Industrial Application Phase : 3 PHASE Power Rating : 5.5KW Connection Type : Control screw terminal 0.5...1.5 mm AWG 20...AWG 16 Line side screw terminal 2.5...6 mm AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm AWG 14...AWG 10 Motor screw terminal 4...6 mm AWG 12...AWG 10 Weight : 11 Kilograms (kg) Rated Current : 12 Ampere (amp) Warranty : 1YEAR Rated Voltage : 480 Volt (V) Frequency (MHz) : 60 Hertz (HZ) Product Type : Variable speed drive IP Rating : IP21 Operating Temperature : 60 Celsius (oC) Color : BLACK GREEN Frequency : 60 Hertz (HZ) Mounting Type : Cabinet mount
