Product Video

Wander Plug And Socket-81282

2639.04 INR/Piece

Get a Price/Quote

Product Details:

Overheating Protection YES
Rated Voltage 400V Volt (V)
IP Rating IP67
Warranty 1 YEAR
Rated Current 63A Ampere (amp)
Operating Temperature 35 C ( 86400 s ) Celsius (oC)
Frequency 50/60 Hz Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-81282 Price And Quantity

Price 2639.04 INR/Piece
Minimum Order Quantity 1 Piece

Wander Plug And Socket-81282 Product Specifications

Material Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Weight 0.473 kg Kilograms (kg)
Product Type Socket
Frequency 50/60 Hz Hertz (HZ)
Operating Temperature 35 C ( 86400 s ) Celsius (oC)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Rated Current 63A Ampere (amp)
Connection Type Captive screws, completely loosened
Protection Level IP67
Dimension (L*W*H) The dimensions of the base plate are (W) 108mm x (H) 107mm. The degree of protection is IP67 and IK08 Millimeter (mm)
Warranty 1 YEAR
IP Rating IP67
Rated Voltage 400V Volt (V)
Overheating Protection YES

Wander Plug And Socket-81282 Trade Information

Payment Terms Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

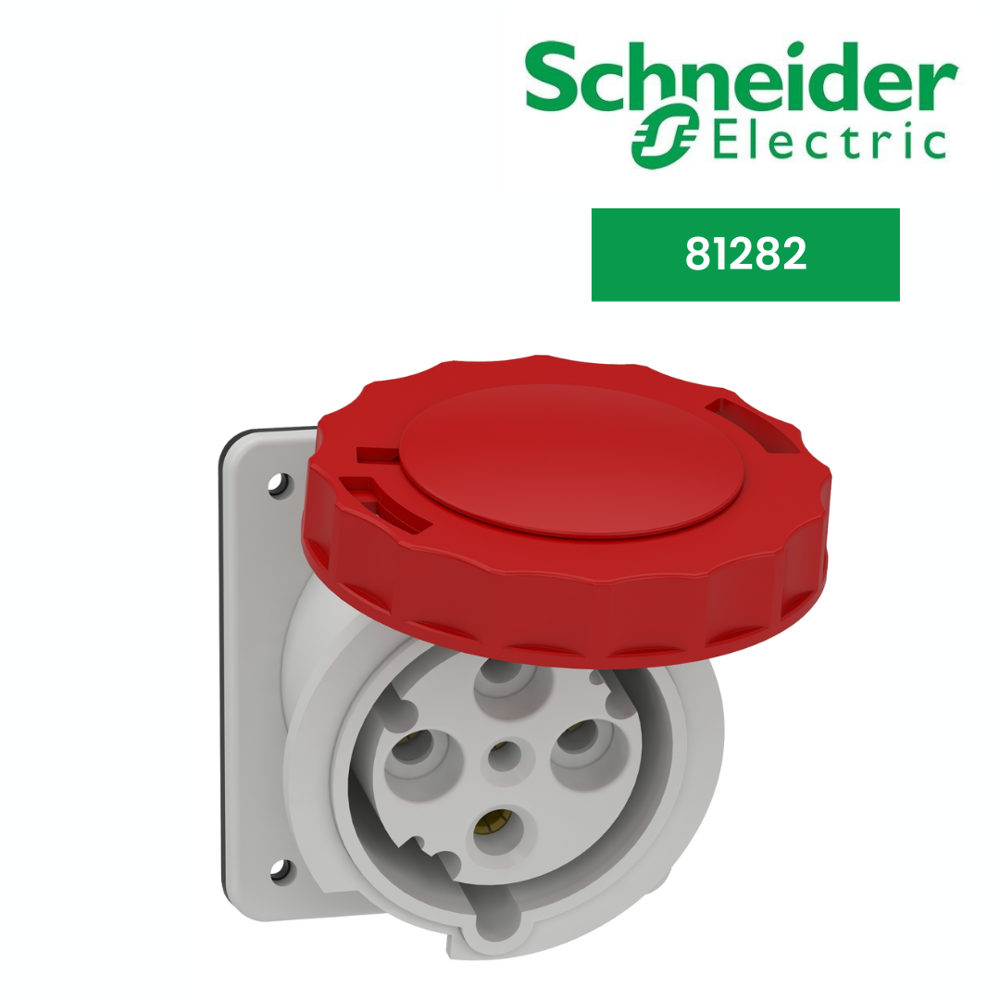

This Pratika industrial socket with completely loosened captive screws connection is angled panel mounted. It has 3P+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 108mm x (H) 107mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm to 25mm cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
