Product Video

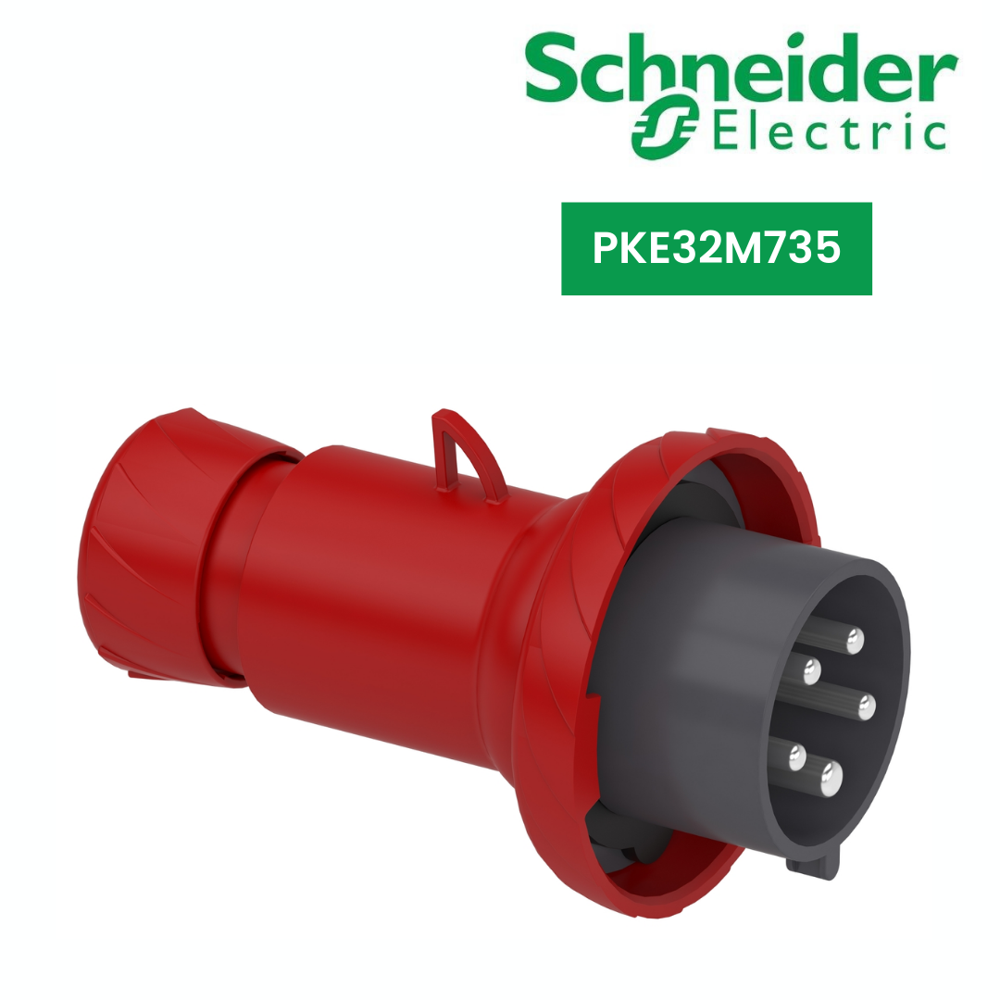

Wander Plug And Socket-PKE32M735

1017.6 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50Hz or 60Hz Hertz (HZ)
Material Housing: self-extinguishing engineering polymer
Operating Temperature -25 40 C Celsius (oC)
Rated Current 32A Ampere (amp)
Warranty 1 YEAR
IP Rating IP67
Rated Voltage 400V Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKE32M735 Price And Quantity

Minimum Order Quantity 1 Piece
Price 1017.6 INR/Piece

Wander Plug And Socket-PKE32M735 Product Specifications

Rated Voltage 400V Volt (V)
IP Rating IP67
Connection Type Captive screws
Dimension (L*W*H) The dimensions of the base plate are (W) 102mm x (H) 160mm. The degree of protection is IP67 and IK08 Millimeter (mm)
Overheating Protection YES
Warranty 1 YEAR
Frequency (MHz) 50Hz or 60Hz Hertz (HZ)
Protection Level IP67
Product Type Wander plug
Weight 0.25 kg Kilograms (kg)
Rated Current 32A Ampere (amp)
Material Housing: self-extinguishing engineering polymer
Frequency 50Hz or 60Hz Hertz (HZ)
Operating Temperature -25 40 C Celsius (oC)
Color Grey (RAL 7035)

Wander Plug And Socket-PKE32M735 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Pratika industrial wander plug with captive screws connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 102mm x (H) 160mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm to 10mm cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
