Product Video

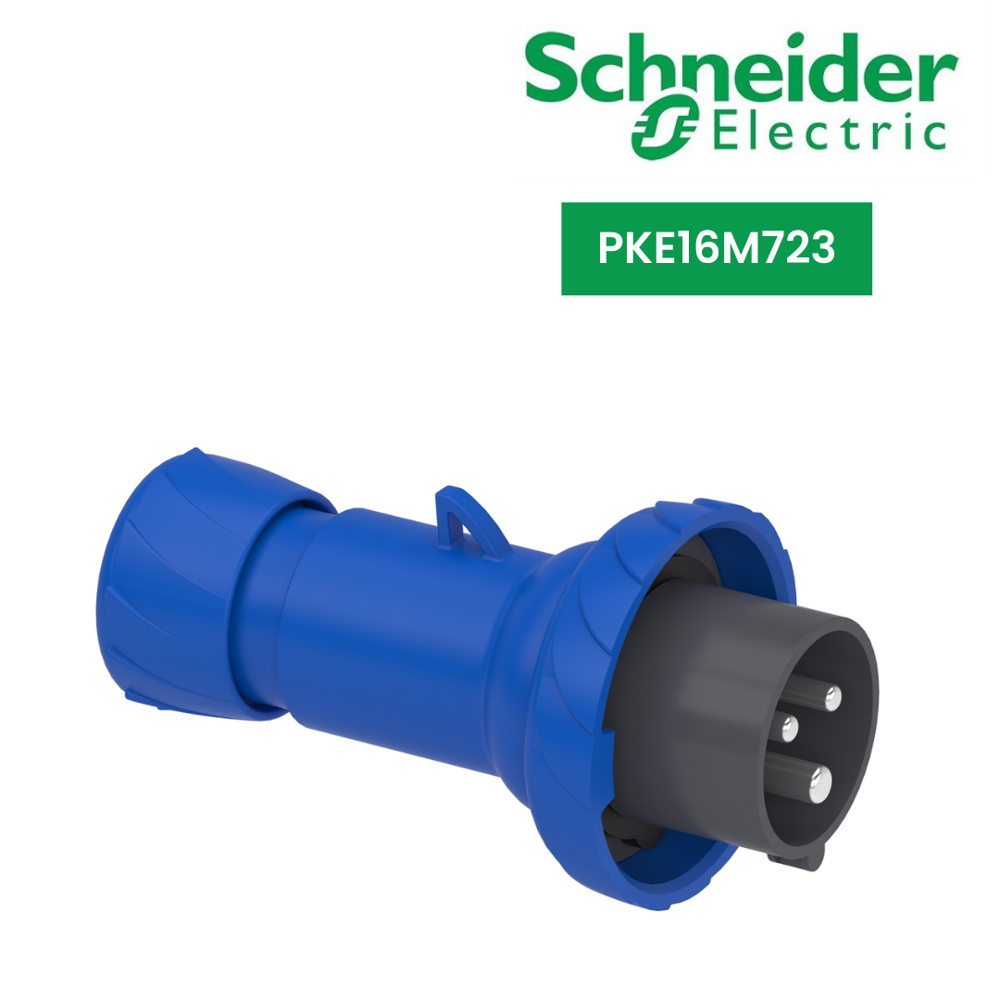

Wander Plug And Socket-PKE16M723

661.44 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 16 A Ampere (amp)
Operating Temperature -25 40 C Celsius (oC)
Frequency 50/60 Hz Hertz (HZ)
Overheating Protection YES
IP Rating IP67
Material Housing: self-extinguishing engineering polymer
Warranty 1 YEAR
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKE16M723 Price And Quantity

Minimum Order Quantity 1 Piece
Price 661.44 INR/Piece

Wander Plug And Socket-PKE16M723 Product Specifications

Rated Current 16 A Ampere (amp)
Dimension (L*W*H) The dimensions of the base plate are (W) 73mm x (H) 129mm. The degree of protection is IP67 and IK08. Millimeter (mm)
Operating Temperature -25 40 C Celsius (oC)
Product Type Wander plug
Frequency (MHz) 50/60 Hz Hertz (HZ)
Frequency 50/60 Hz Hertz (HZ)
Weight 0.144 kg Kilograms (kg)
Connection Type Captive screws
Overheating Protection YES
Protection Level Other
Material Housing: self-extinguishing engineering polymer
IP Rating IP67
Warranty 1 YEAR
Color Grey (RAL 7035)
Rated Voltage 230V Volt (V)

Wander Plug And Socket-PKE16M723 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 73mm x (H) 129mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm to 4mm cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
