Product Video

Wander Plug And Socket-81283

2665.44 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Operating Temperature 35 C ( 86400 s ) Celsius (oC)
IP Rating IP67
Rated Voltage 400V Volt (V)
Overheating Protection YES
Rated Current 63A Ampere (amp)
Material Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-81283 Price And Quantity

Price 2665.44 INR/Piece
Minimum Order Quantity 1 Piece

Wander Plug And Socket-81283 Product Specifications

Product Type Socket
Weight 0.52 kg Kilograms (kg)
Material Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Frequency 50/60 Hz Hertz (HZ)
Dimension (L*W*H) The dimensions of the base plate are (W) 100mm x (H) 107mm. The degree of protection is IP67 and IK08. Millimeter (mm)
Rated Voltage 400V Volt (V)
Rated Current 63A Ampere (amp)
Connection Type Captive screws, completely loosened
Overheating Protection YES
Color Grey (RAL 7035)
IP Rating IP67
Frequency (MHz) 50/60 Hz Hertz (HZ)
Warranty 1 YEAR
Operating Temperature 35 C ( 86400 s ) Celsius (oC)
Protection Level IP67

Wander Plug And Socket-81283 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

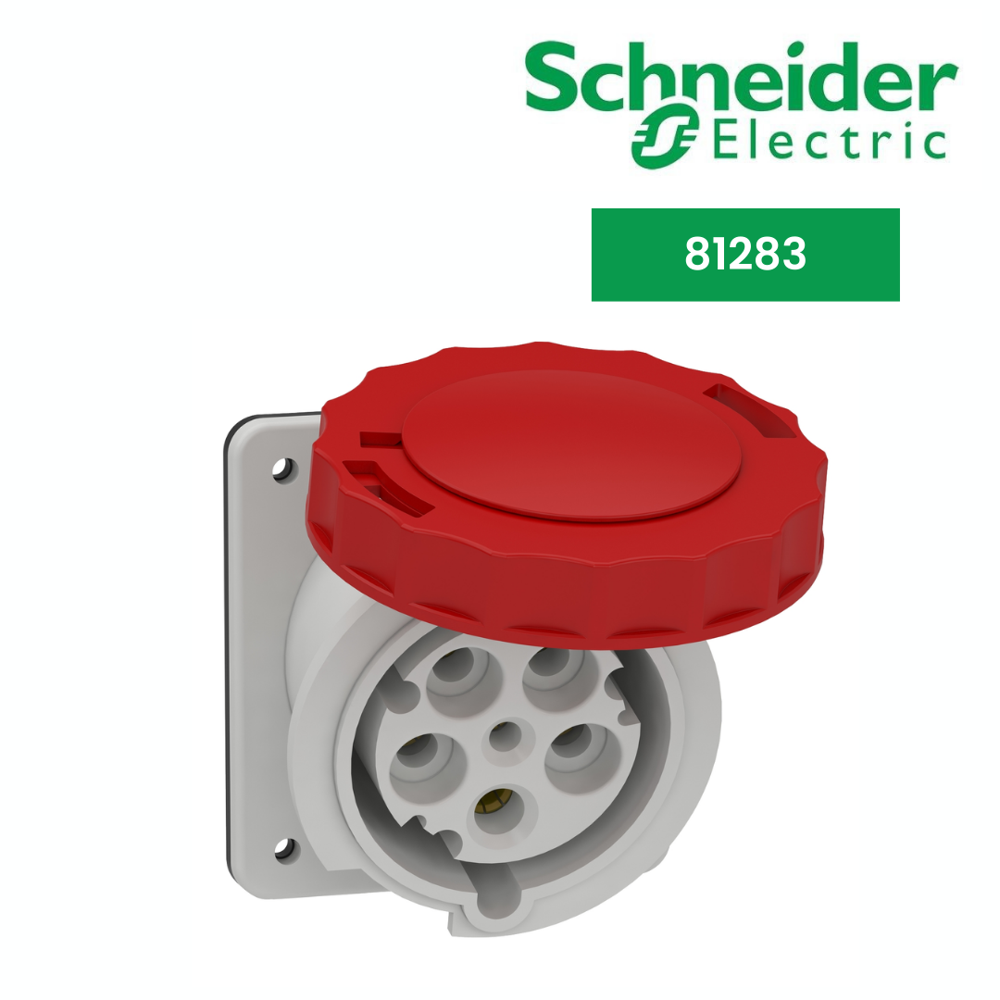

This Pratika industrial socket with completely loosened captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 100mm x (H) 107mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm to 25mm cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Wander Plug And Socket' category

Wander Plug And Socket-PKE32M423 Price : 476.16 INR/Piece Minimum Order Quantity : 1 IP Rating : IP44 Warranty : 1 YEAR Operating Temperature : 35 C Celsius (oC) Weight : 0.2 kg Kilograms (kg) Material : Housing: selfextinguishing engineering polymer Dimension (L*W*H) : The dimensions of the base plate are (W) 76mm x (H) 152mm. The degree of protection is IP44 and IK08. Millimeter (mm) Rated Voltage : 230V Volt (V) Connection Type : Captive screws Rated Current : 32A Ampere (amp) Overheating Protection : YES Frequency (MHz) : 50Hz or 60Hz Hertz (HZ) Color : Grey (RAL 7035) Protection Level : Other Frequency : 50Hz or 60Hz Hertz (HZ) Product Type : Wander plug

Send Inquiry

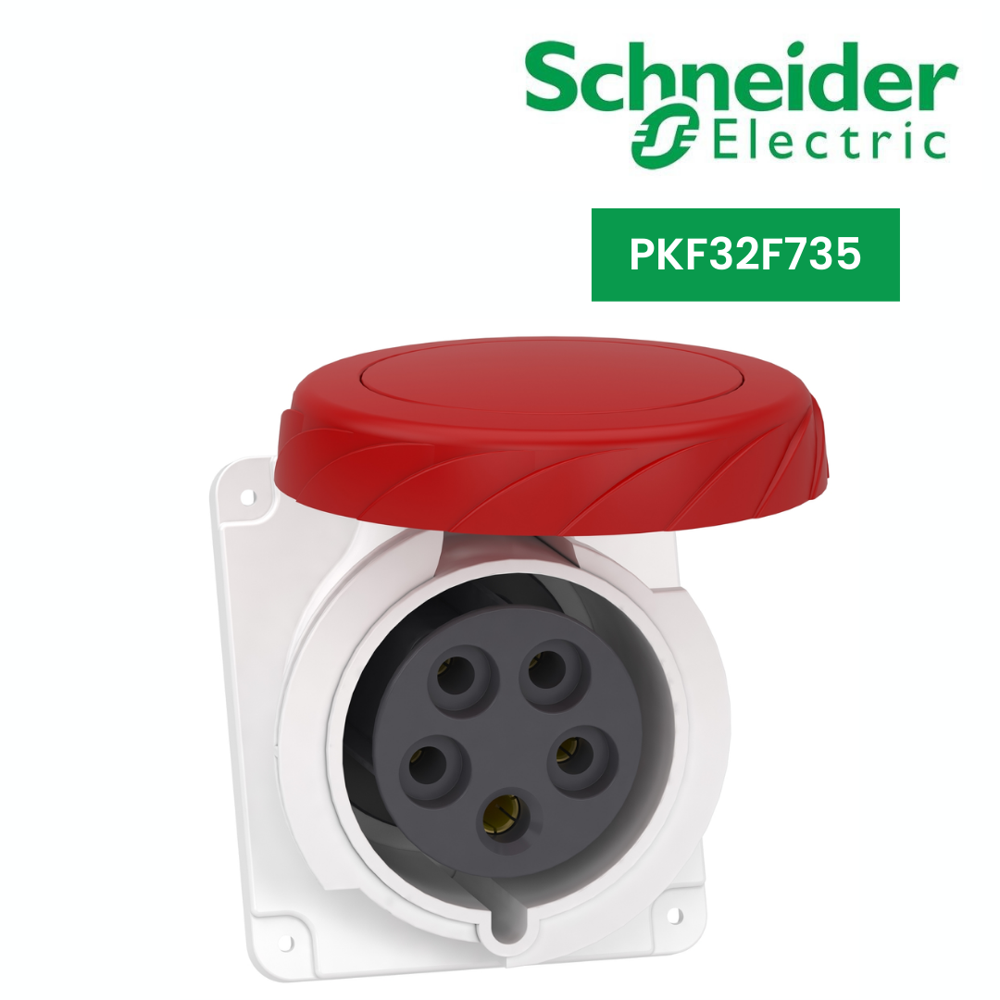

Wander Plug And Socket-PKF32F735 Price : 944.64 INR/Piece Minimum Order Quantity : 1 IP Rating : IP67 Warranty : 1 YEAR Operating Temperature : 35 C ( 86400 s ) Celsius (oC) Weight : 0.26 kg Kilograms (kg) Material : Sleeves: brass Dimension (L*W*H) : The dimensions of the base plate are (W) 102mm x (H) 100mm. The degree of protection is IP67 and IK08. Millimeter (mm) Rated Voltage : 400V Volt (V) Connection Type : Captive screws Rated Current : 32A Ampere (amp) Overheating Protection : YES Frequency (MHz) : 50/60 Hz Hertz (HZ) Color : Grey (RAL 7035) Protection Level : IP67 Frequency : 50/60 Hz Hertz (HZ) Product Type : Socket

Send Inquiry

Wander Plug And Socket-PKF16M735 Price : 1027.2 INR/Piece Minimum Order Quantity : 1 IP Rating : IP67 Warranty : 1 YEAR Operating Temperature : 25 40 C Celsius (oC) Weight : 0.25 kg Kilograms (kg) Material : Sleeves: brass Dimension (L*W*H) : The dimensions of the base plate are (W) 96mm x (H) 96mm. The degree of protection is IP67 and IK08 Millimeter (mm) Rated Voltage : 380V Volt (V) Connection Type : Captive screws Rated Current : 16A Ampere (amp) Overheating Protection : YES Frequency (MHz) : 50/60 Hz Hertz (HZ) Color : Grey (RAL 7035) Protection Level : IP67 Frequency : 50/60 Hz Hertz (HZ) Product Type : 0.25 kg

Send Inquiry

Wander Plug And Socket-PKF32W735 Price : 2060.64 INR/Piece Minimum Order Quantity : 1 IP Rating : IP67 Warranty : 1 YEAR Operating Temperature : 25 40 C Celsius (oC) Weight : 0.41 kg Grams (g) Material : Sleeves: brass Dimension (L*W*H) : The dimensions of the base plate are (W) 106mm x (H) 130mm. The degree of protection is IP67 and IK08 Millimeter (mm) Rated Voltage : 380V Volt (V) Connection Type : Captive screws Rated Current : 32A Ampere (amp) Overheating Protection : YES Frequency (MHz) : 50/60 Hz Hertz (HZ) Color : Grey (RAL 7035) Protection Level : IP67 Frequency : 50/60 Hz Hertz (HZ) Product Type : Socket
