Wander Plug And Socket-PKF32F735

944.64 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Rated Voltage 400V Volt (V)
Warranty 1 YEAR
Material Sleeves: brass
Overheating Protection YES
Operating Temperature 35 C ( 86400 s ) Celsius (oC)
Rated Current 32A Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKF32F735 Price And Quantity

Minimum Order Quantity 1 Piece
Price 944.64 INR/Piece

Wander Plug And Socket-PKF32F735 Product Specifications

Overheating Protection YES
Operating Temperature 35 C ( 86400 s ) Celsius (oC)
Dimension (L*W*H) The dimensions of the base plate are (W) 102mm x (H) 100mm. The degree of protection is IP67 and IK08. Millimeter (mm)
Connection Type Captive screws
Protection Level IP67
Material Sleeves: brass
IP Rating IP67
Rated Voltage 400V Volt (V)
Color Grey (RAL 7035)
Warranty 1 YEAR
Frequency 50/60 Hz Hertz (HZ)
Rated Current 32A Ampere (amp)
Product Type Socket
Weight 0.26 kg Kilograms (kg)
Frequency (MHz) 50/60 Hz Hertz (HZ)

Wander Plug And Socket-PKF32F735 Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

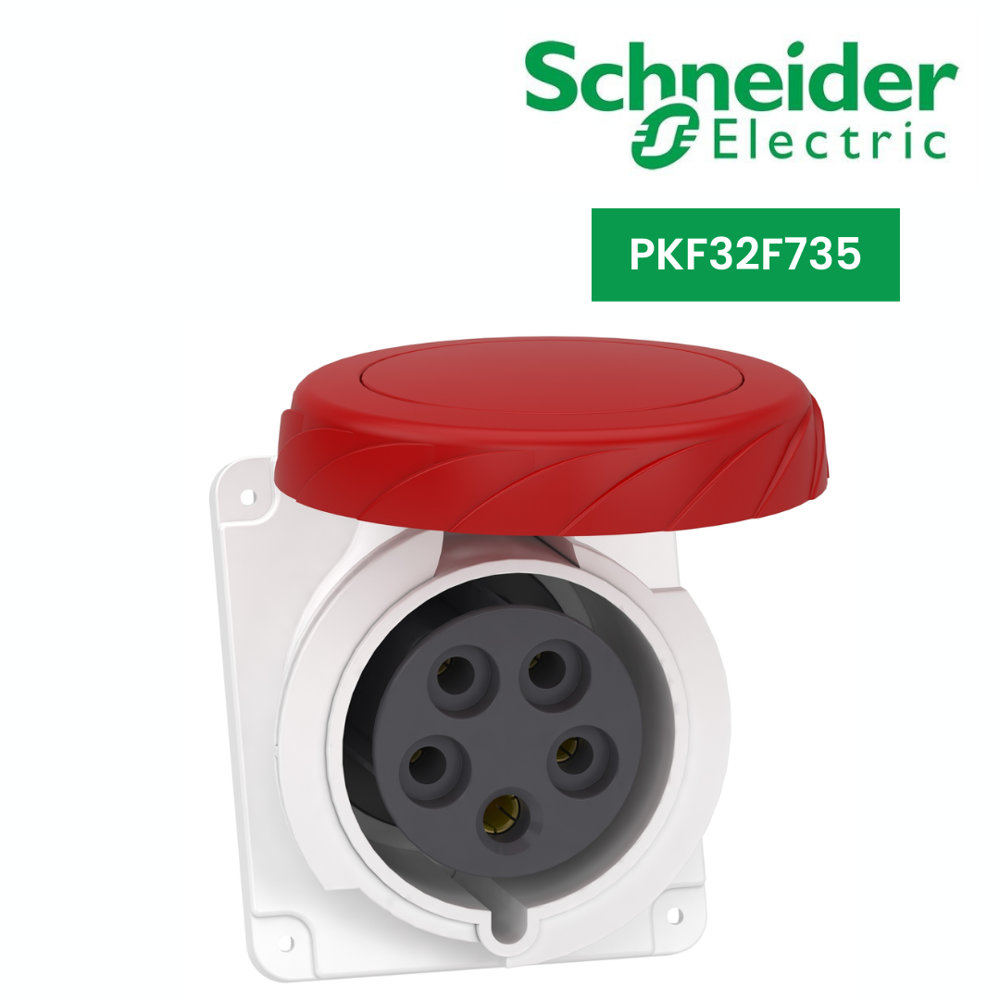

This Pratika industrial socket with captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 102mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm to 10mm. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
