Product Video

Wander Plug And Socket-PKE16M435

403.2 INR/Piece

Get a Price/Quote

Product Details:

Overheating Protection YES
IP Rating IP44
Rated Current 16A Ampere (amp)
Material Housing: self-extinguishing engineering polymer
Frequency 50Hz or 60Hz Hertz (HZ)
Warranty 1 YEAR
Rated Voltage 400V Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKE16M435 Price And Quantity

Minimum Order Quantity 1 Piece
Price 403.2 INR/Piece

Wander Plug And Socket-PKE16M435 Product Specifications

Overheating Protection YES
Protection Level Other
IP Rating IP44
Connection Type Captive screws
Frequency (MHz) 50Hz or 60Hz Hertz (HZ)
Product Type Wander plug
Rated Current 16A Ampere (amp)
Material Housing: self-extinguishing engineering polymer
Frequency 50Hz or 60Hz Hertz (HZ)
Dimension (L*W*H) The dimensions of the base plate are (W) 74mm x (H) 142mm. The degree of protection is IP44 and IK08. Millimeter (mm)
Weight 0.19 kg Kilograms (kg)
Warranty 1 YEAR
Rated Voltage 400V Volt (V)
Color Grey (RAL 7035)

Wander Plug And Socket-PKE16M435 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cheque, Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

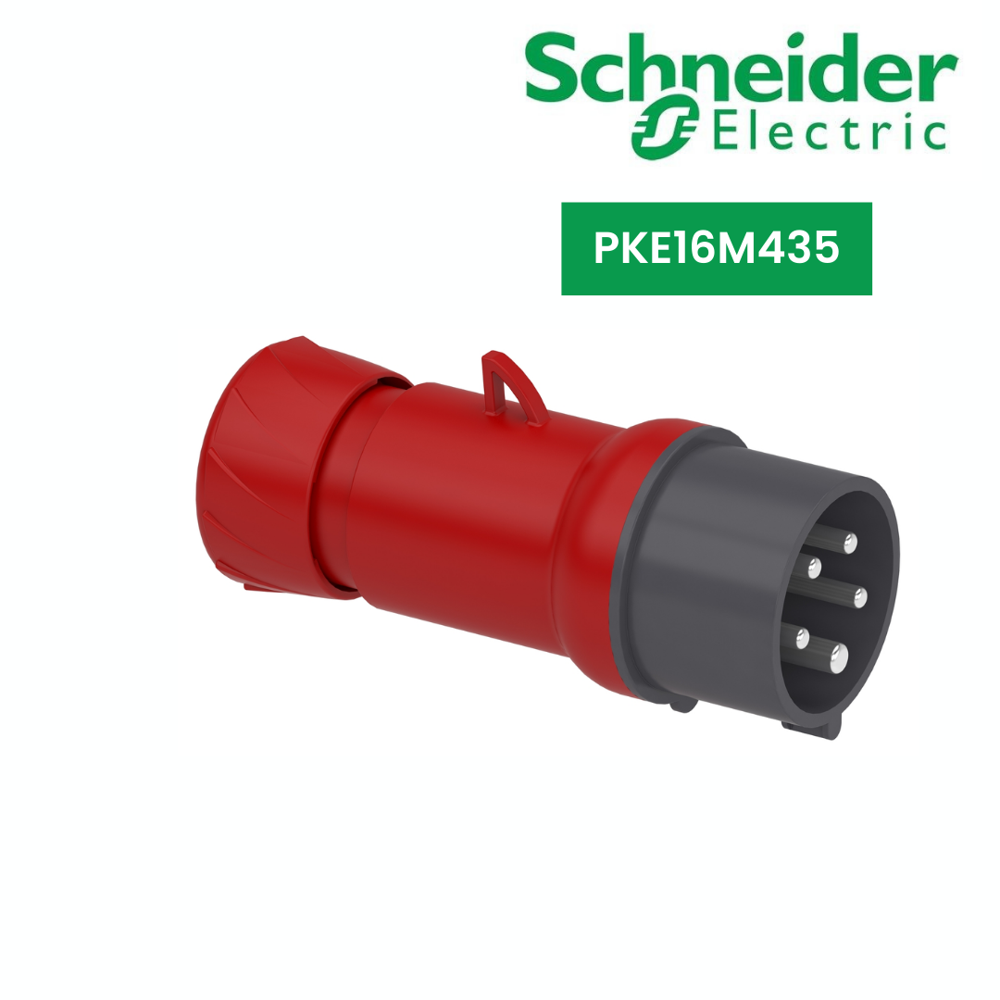

This Pratika industrial wander plug with captive screws connection is straight. It has 3P+N+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 74mm x (H) 142mm. The degree of protection is IP44 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm to 4mm cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
