Electrical Enclosure-13442
2789.0 INR/Piece
Product Details:
- Material The material is a self-extinguishing polymer material.
- Power Rating 11 W
- IP Rating IP65
- Warranty 1 YEAR
- Rated Current 63A Ampere (amp)
- Rated Voltage 11 Volt (V)
- Product Type Weatherproof enclosure
- Click to View more
X
Electrical Enclosure-13442 Price And Quantity
- 2789.0 INR/Piece
- 1 Piece
Electrical Enclosure-13442 Product Specifications
- 599.000 g Grams (g)
- The colour of the enclosure is light grey (RAL 7035)
- 1 YEAR
- The material is a self-extinguishing polymer material.
- Other
- IP65
- 11 W
- 11 Volt (V)
- Weatherproof enclosure
- The dimensions are (W) 159mm x (H) 200mm x (D) 112mm. Millimeter (mm)
- 63A Ampere (amp)
- IP65
Electrical Enclosure-13442 Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 32 Piece Per Week
- 4 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description

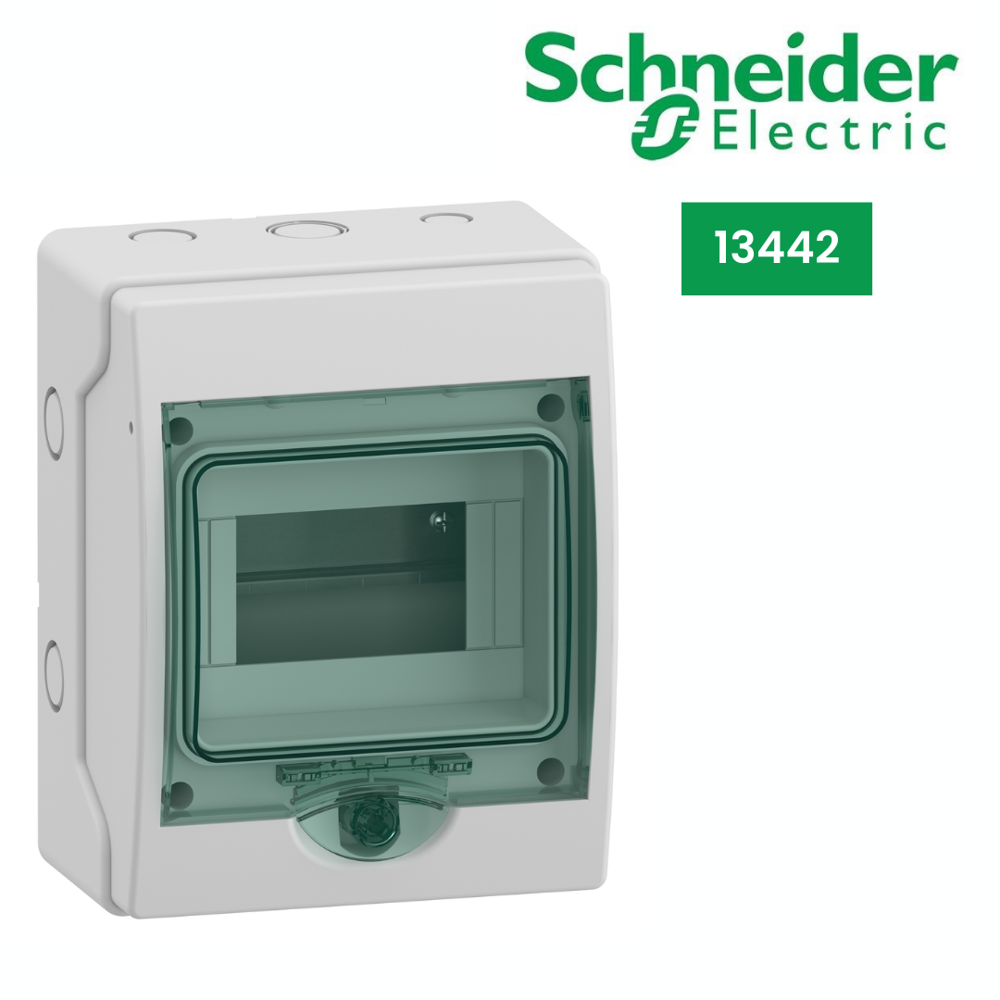

This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 6 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. 2 terminal blocks can be installed on the back of the enclosure. Each one has 4 outgoers (2x10mm + 2x16mm). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 11W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 159mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650C as per IEC 60695-2-11. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25C to 60C.
