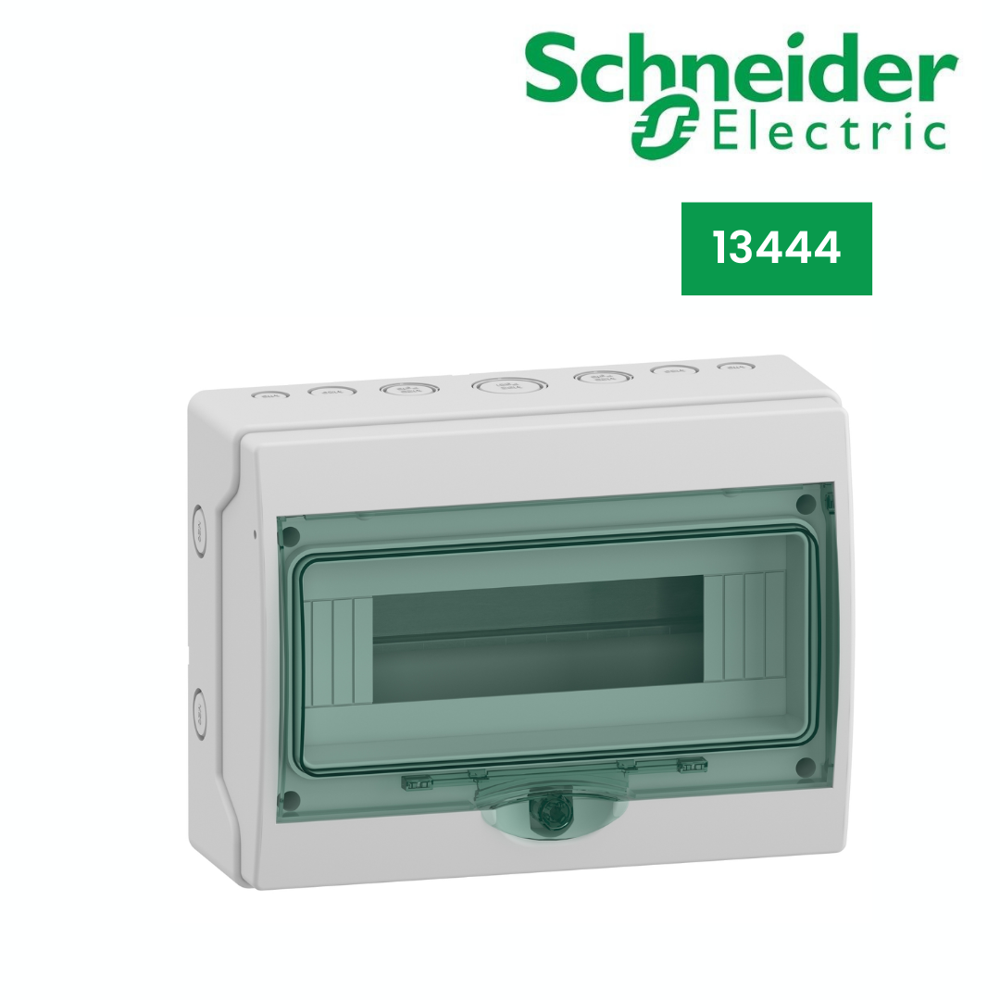

Electrical Enclosure-13444

5278.9 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 63A Ampere (amp)
IP Rating IP65
Warranty 1 YEAR
Material The material is a self-extinguishing polymer material.
Power Rating 19 W
Product Type Weatherproof enclosure
Protection Level IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electrical Enclosure-13444 Price And Quantity

Price 5278.9 INR/Piece
Minimum Order Quantity 1 Piece

Electrical Enclosure-13444 Product Specifications

Product Type Weatherproof enclosure
Power Rating 19 W
Protection Level IP65
Weight 942.000 g Grams (g)
Dimension (L*W*H) The dimensions are (W) 267mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Millimeter (mm)
Material The material is a self-extinguishing polymer material.
Warranty 1 YEAR
Rated Current 63A Ampere (amp)
Surface Treatment Other
Color The colour of the enclosure is light grey (RAL 7035)
IP Rating IP65

Electrical Enclosure-13444 Trade Information

Payment Terms Cash in Advance (CID), Cheque, Paypal, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 7 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. 2 terminal blocks can be installed on the back of the enclosure. Each one has 8 outgoers (4x10mm + 4x16mm). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 19W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 267mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25C to 60C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electrical Enclosure' category

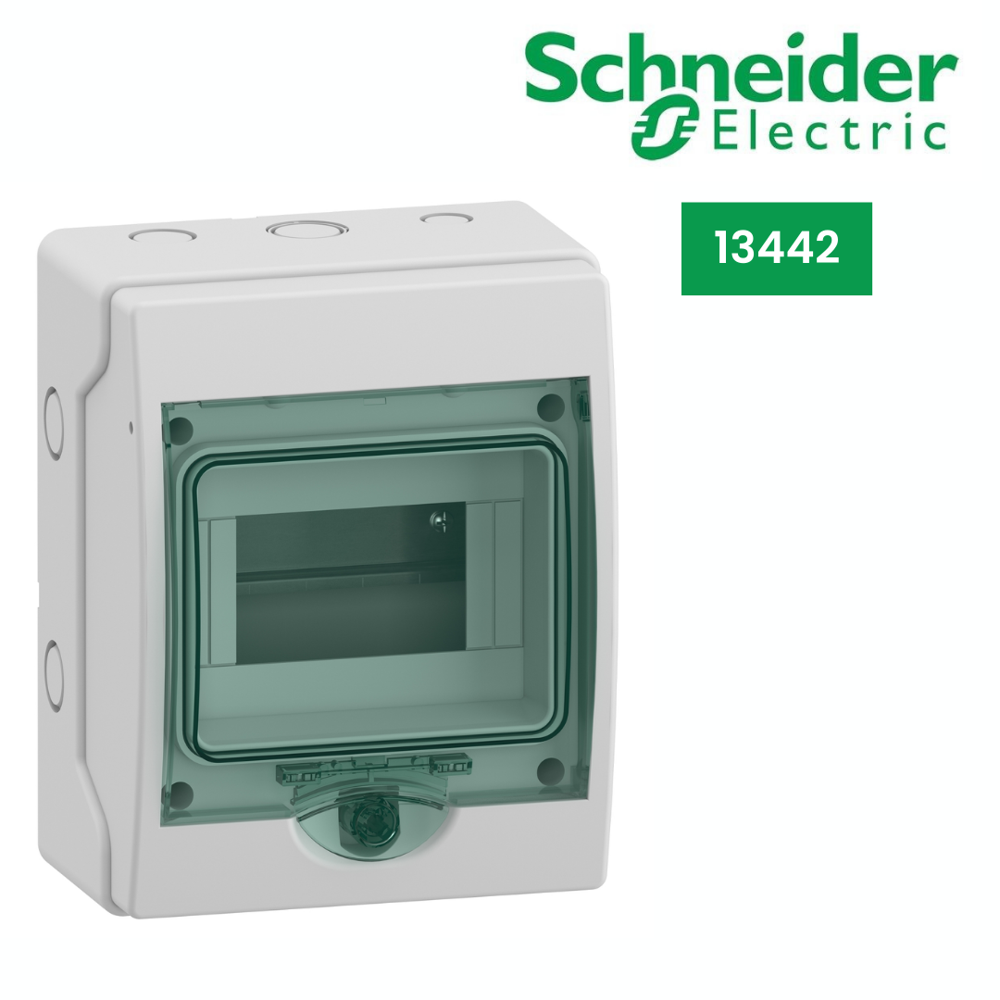

Electrical Enclosure-13442 Price : 2789.0 INR/Piece Minimum Order Quantity : 1 Product Type : Weatherproof enclosure Material : The material is a selfextinguishing polymer material. Dimension (L*W*H) : The dimensions are (W) 159mm x (H) 200mm x (D) 112mm. Millimeter (mm) Weight : 599.000 g Grams (g) Warranty : 1 YEAR Surface Treatment : Other IP Rating : IP65 Protection Level : IP65 Color : The colour of the enclosure is light grey (RAL 7035) Rated Current : 63A Ampere (amp) Power Rating : 11 W

Send Inquiry

Electrical Enclosure-13175 Price : 1169.3 INR/Piece Minimum Order Quantity : 1 Product Type : Weatherproof enclosure Material : Housing: selfextinguishing polymer Dimension (L*W*H) : The dimensions of the openings are 65mm x 85mm. The rated current is 63A, Millimeter (mm) Weight : 402.000 g Grams (g) Warranty : 1 YEAR Surface Treatment : Other IP Rating : IP65 Protection Level : IP65 Color : Door: transparent green Enclosure: light grey (RAL 7035) Rated Current : 63A Ampere (amp) Power Rating : 10 W

Send Inquiry

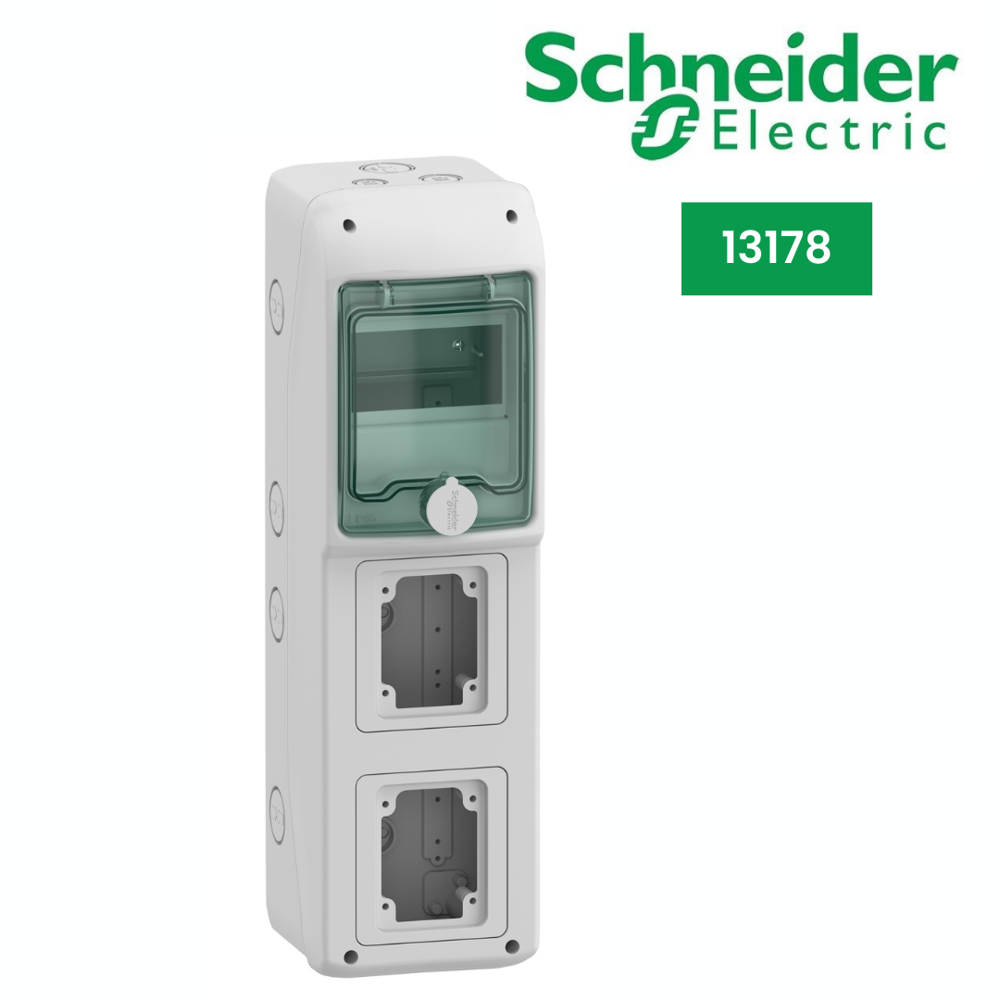

Electrical Enclosure-13178 Price : 2814.9 INR/Piece Minimum Order Quantity : 1 Product Type : Weatherproof enclosure Material : The material is a selfextinguishing polymer material. Dimension (L*W*H) : The dimensions are (W) 138mm x (H) 460mm x (D) 160mm. The product weight is 1.4kg. Millimeter (mm) Weight : 1.4kg Kilograms (kg) Warranty : 1 YEAR Surface Treatment : Other IP Rating : IP65 Protection Level : IP65 Color : The colour of enclosure is light grey (RAL 7035) Rated Current : 63A Ampere (amp) Power Rating : 12W

Send Inquiry

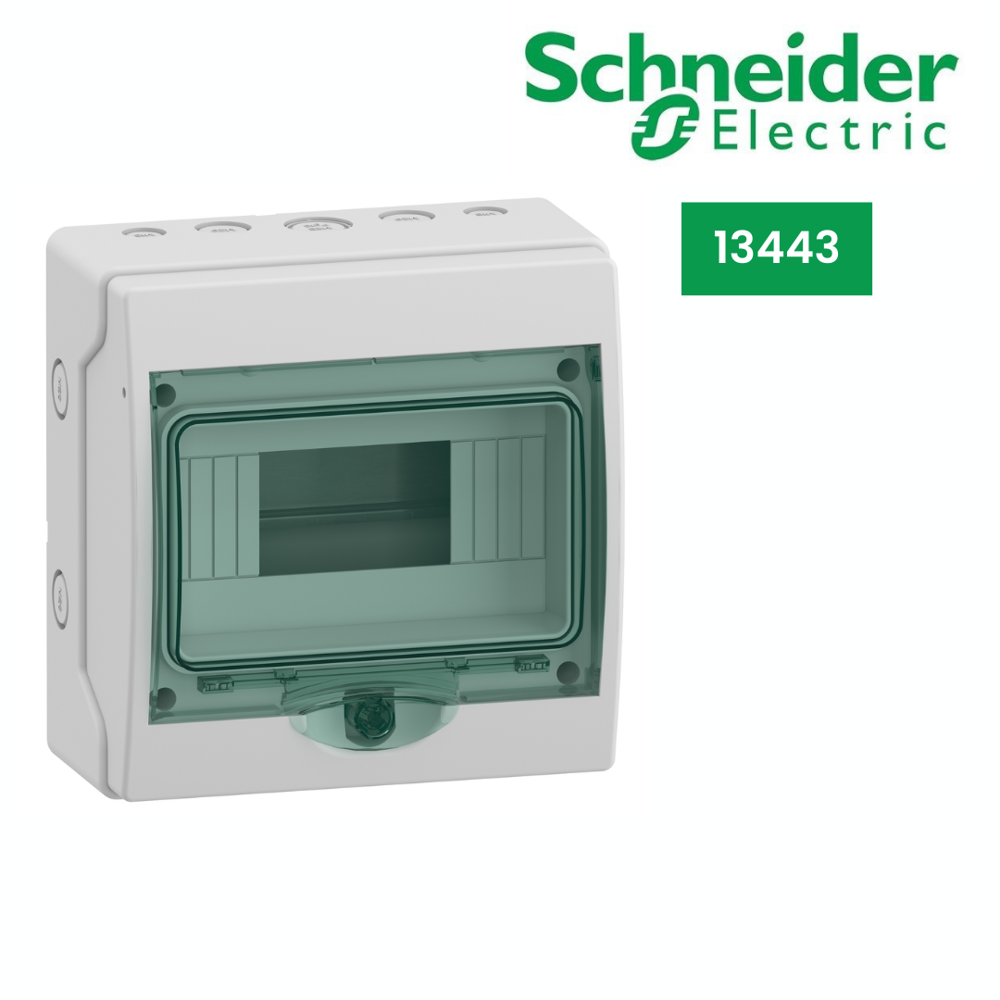

Electrical Enclosure-13443 Price : 3285.15 INR/Piece Minimum Order Quantity : 1 Product Type : This product complies with IEC 614393 standard Material : The material is a selfextinguishing polymer material Dimension (L*W*H) : The dimensions are (W) 195mm x (H) 200mm x (D) 112mm. The material is a selfextinguishing polymer material. Millimeter (mm) Weight : 750.000 g Grams (g) Warranty : 1 YEAR Surface Treatment : Other IP Rating : IP65 Protection Level : IP65 Color : The colour of the enclosure is light grey (RAL 7035) Rated Current : 63A Ampere (amp)
