Product Video

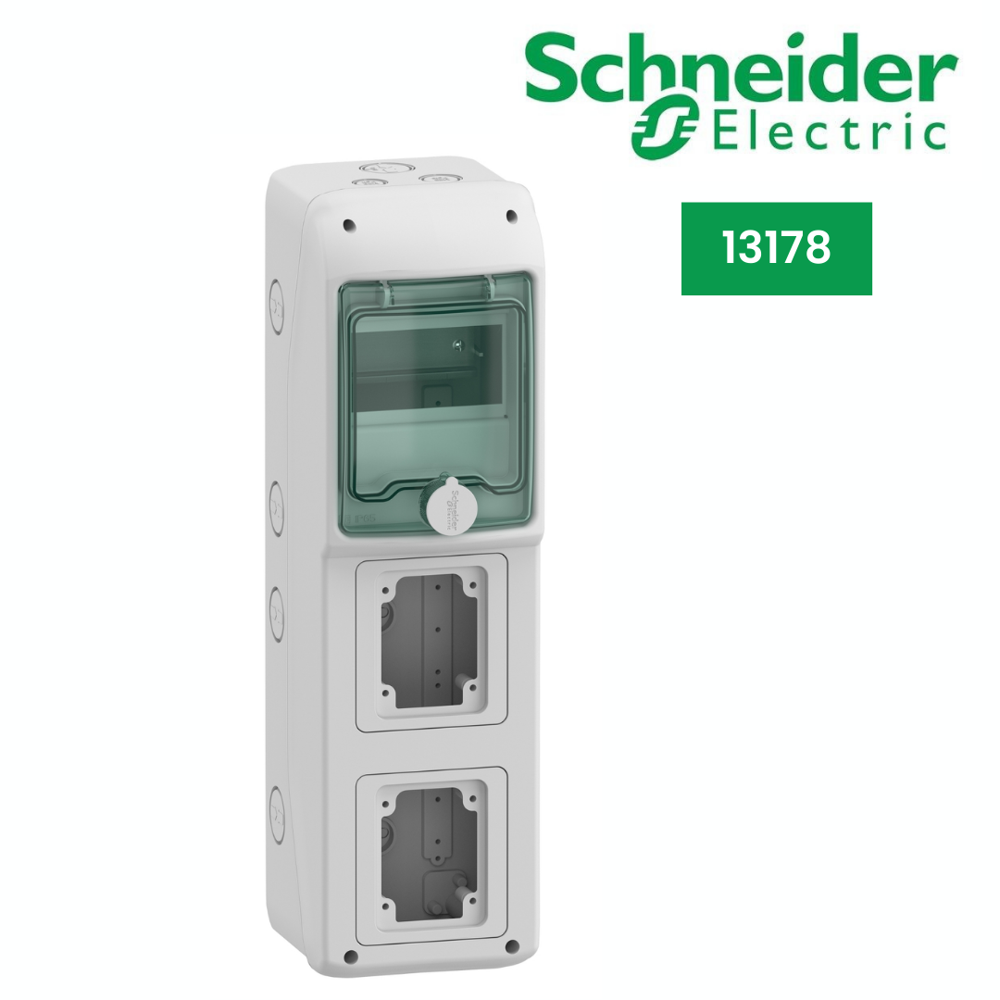

Electrical Enclosure-13178

2814.9 INR/Piece

Get a Price/Quote

Product Details:

Material The material is a self-extinguishing polymer material.
Rated Current 63A Ampere (amp)
Power Rating 12W
IP Rating IP65
Warranty 1 YEAR
Product Type Weatherproof enclosure
Protection Level IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electrical Enclosure-13178 Price And Quantity

Price 2814.9 INR/Piece
Minimum Order Quantity 1 Piece

Electrical Enclosure-13178 Product Specifications

Material The material is a self-extinguishing polymer material.
Color The colour of enclosure is light grey (RAL 7035)
Rated Current 63A Ampere (amp)
Power Rating 12W
Weight 1.4kg Kilograms (kg)
Warranty 1 YEAR
Dimension (L*W*H) The dimensions are (W) 138mm x (H) 460mm x (D) 160mm. The product weight is 1.4kg. Millimeter (mm)
Product Type Weatherproof enclosure
Protection Level IP65
IP Rating IP65
Surface Treatment Other

Electrical Enclosure-13178 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Kaedra weatherproof enclosure is a surface mounted enclosure for industrial power outlet. It is composed of 1 row of 5 modules of 18mm. It can accomodate all types of modular switchgear. There are 2 openings for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 2 plates for 65x85mm power outlets and 1 plate for push-button control. It comes with 1 terminal block. The terminal block has 4 outgoers (2x10mm + 2x16mm). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 12W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 138mm x (H) 460mm x (D) 160mm. The product weight is 1.4kg. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25C to 40C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electrical Enclosure' category

Electrical Enclosure-13442 Price : 2789.0 INR/Piece Minimum Order Quantity : 1 Surface Treatment : Other Material : The material is a selfextinguishing polymer material. Weight : 599.000 g Grams (g) Warranty : 1 YEAR Dimension (L*W*H) : The dimensions are (W) 159mm x (H) 200mm x (D) 112mm. Millimeter (mm) Product Type : Weatherproof enclosure Protection Level : IP65 IP Rating : IP65 Color : The colour of the enclosure is light grey (RAL 7035) Rated Current : 63A Ampere (amp) Power Rating : 11 W

Send Inquiry

Electrical Enclosure-13441 Price : 2451.35 INR/Piece Minimum Order Quantity : 1 Surface Treatment : Other Material : The material is a selfextinguishing polymer material Weight : 527.000 g Grams (g) Warranty : 1 YEAR Dimension (L*W*H) : The dimensions are (W) 123mm x (H) 200mm x (D) 112mm. Millimeter (mm) Product Type : Weatherproof enclosure Protection Level : IP65 IP Rating : IP65 Color : The colour of the enclosure is light grey (RAL 7035). Rated Current : 63 A Ampere (amp) Power Rating : 10W

Send Inquiry

Electrical Enclosure-13444 Price : 5278.9 INR/Piece Minimum Order Quantity : 1 Surface Treatment : Other Material : The material is a selfextinguishing polymer material. Weight : 942.000 g Grams (g) Warranty : 1 YEAR Dimension (L*W*H) : The dimensions are (W) 267mm x (H) 200mm x (D) 112mm. The material is a selfextinguishing polymer material. Millimeter (mm) Product Type : Weatherproof enclosure Protection Level : IP65 IP Rating : IP65 Color : The colour of the enclosure is light grey (RAL 7035) Rated Current : 63A Ampere (amp) Power Rating : 19 W

Send Inquiry

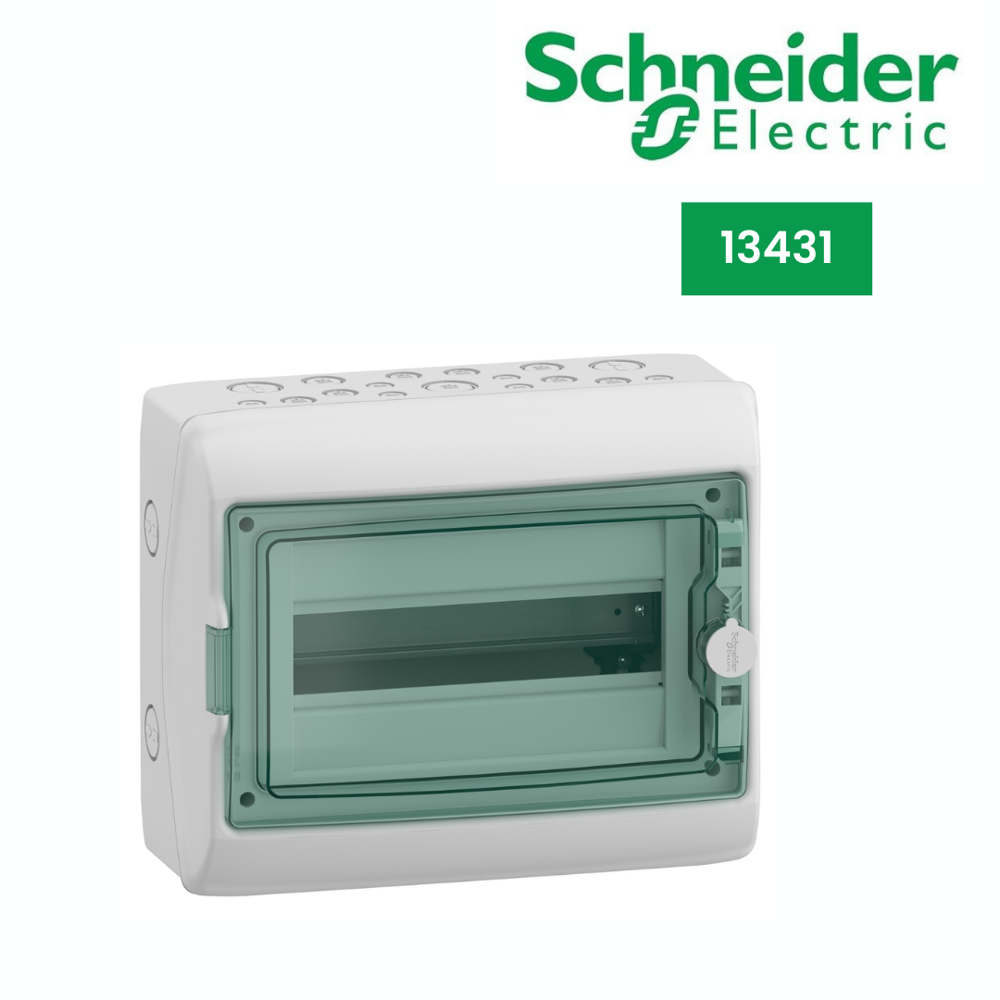

Electrical Enclosure-13431 Price : 5825.6 INR/Piece Minimum Order Quantity : 1 Surface Treatment : Other Material : Selfextinguishing polymer Weight : 2.089 kg Grams (g) Warranty : 1 YEAR Dimension (L*W*H) : The dimensions of the box are (W) 340mm x (H) 280mm x (D) 160mm. The rated current is 63A Millimeter (mm) Product Type : Weatherproof enclosure Protection Level : IP65 IP Rating : IP65 Rated Current : 63A Ampere (amp) Power Rating : 24 W
