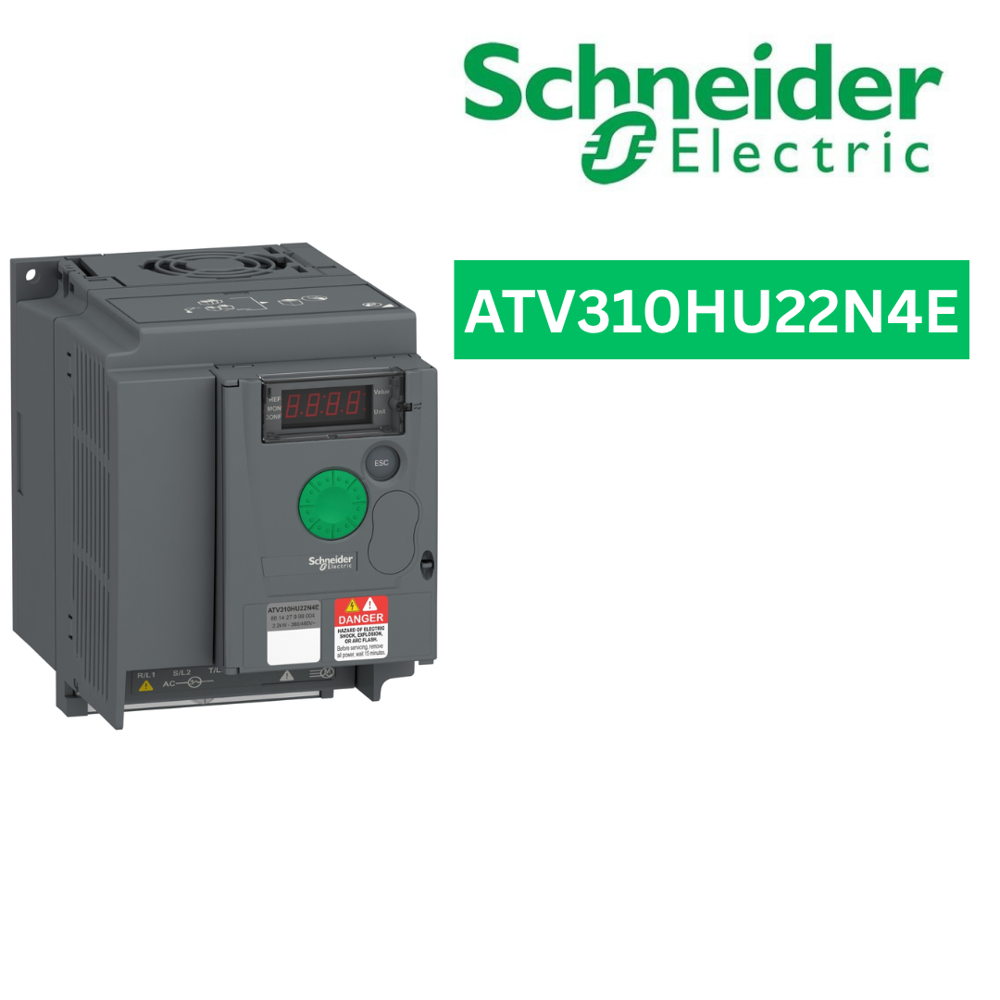

ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC
ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC

ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC

Price 13831.68 INR/ Piece

MOQ : 2 Pieces

ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC Specification

  • Connector Type
  • RJ45 (on front face) for Modbus
  • IP Rating
  • IP20
  • Overheating Protection
  • YES
  • Power Rating
  • 2.2KW
  • Product Type
  • Variable speed drive
  • Application
  • Simple machine
  • Frequency (MHz)
  • 400 Hertz (HZ)
  • Rated Voltage
  • 460 Volt (V)
  • Weight
  • 1.1 Kilograms (kg)
  • Warranty
  • 1YEAR
  • Phase
  • THREE PHASE
  • Rated Current
  • 8.8 Ampere (amp)
  • Frequency
  • 400 Hertz (HZ)
  • Connection Type
  • RJ45 (on front face) fTerminal, clamping capacity: 1.5...2.5 mm , AWG 16...AWG 14 (L1, L2, L3, PA/+, PB, U, V, W)or Modbus


ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC Trade Information

  • Minimum Order Quantity
  • 2 Pieces
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 60 Pieces Per Week
  • Delivery Time
  • 4 Days
  • Sample Available
  • No
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATV310HU22N4E-variable speed drive, Easy Altivar 310, heavy duty, 2.2kW, 3hp, 380 to 460V, without EMC

This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to 2.2kW/3HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 1.1kg and its dimensions are, 105mm wide, 143mm high, 151mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Variable Speed Drive Category

ATV340U15N4E-variable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases, Ethernet

ATV340U15N4E-variable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases, Ethernet

Price 35981.76 INR / Piece

Minimum Order Quantity : 1 Piece

Application : Machine

Rated Voltage : 480 Volt (V)

Frequency (MHz) : 60 Hertz (HZ)

Phase : THREE PHASE

ATV310HU75N4E-variable speed drive, Easy Altivar 310, heavy duty, 7.5kW, 10hp, normal duty, 11kW, 15hp, 380 to 460V, without EMC

ATV310HU75N4E-variable speed drive, Easy Altivar 310, heavy duty, 7.5kW, 10hp, normal duty, 11kW, 15hp, 380 to 460V, without EMC

Price 25372.16 INR / Piece

Minimum Order Quantity : 16 Pieces

Application : Simple machine

Rated Voltage : 460 Volt (V)

Frequency (MHz) : 60 Hertz (HZ)

Phase : THREE PHASE

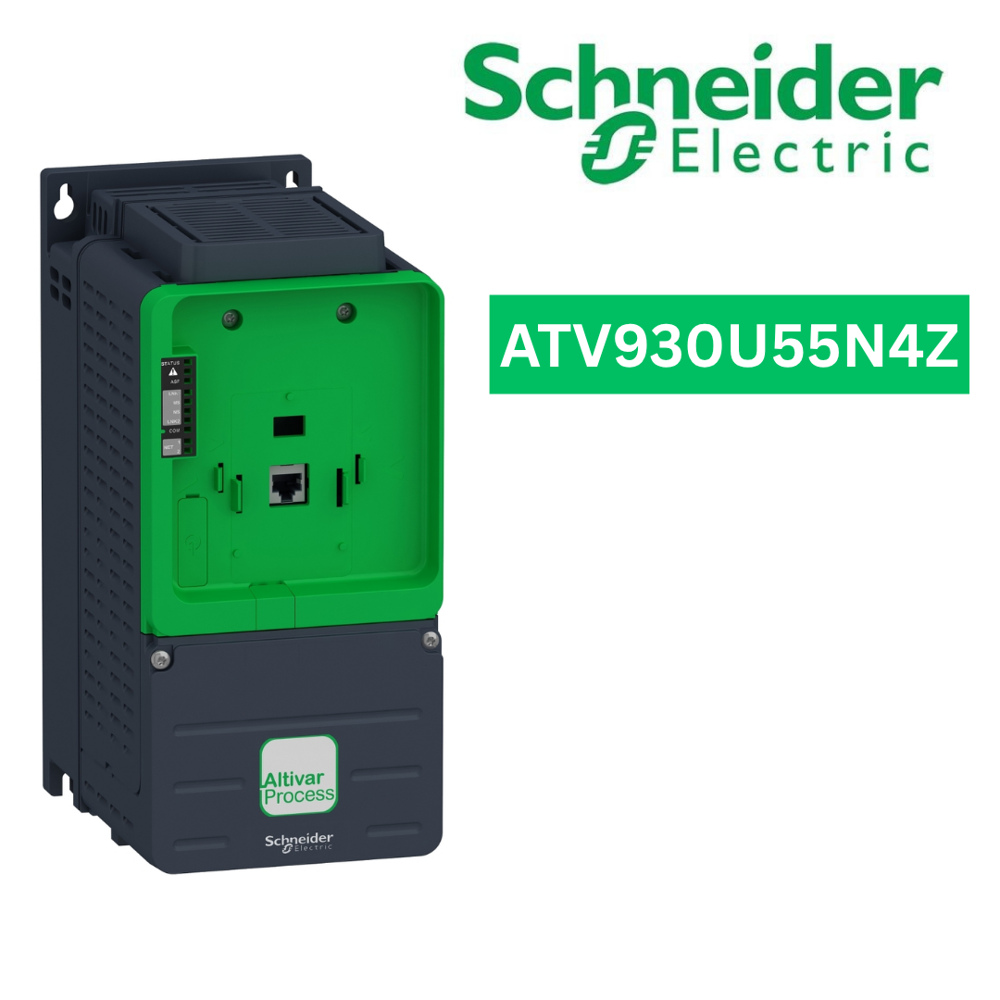

ATV930U55N4Z-variable speed drive, Altivar Process ATV900, ATV930, 5.5kW, 380 to 480V, cabinet Integration, IP20
