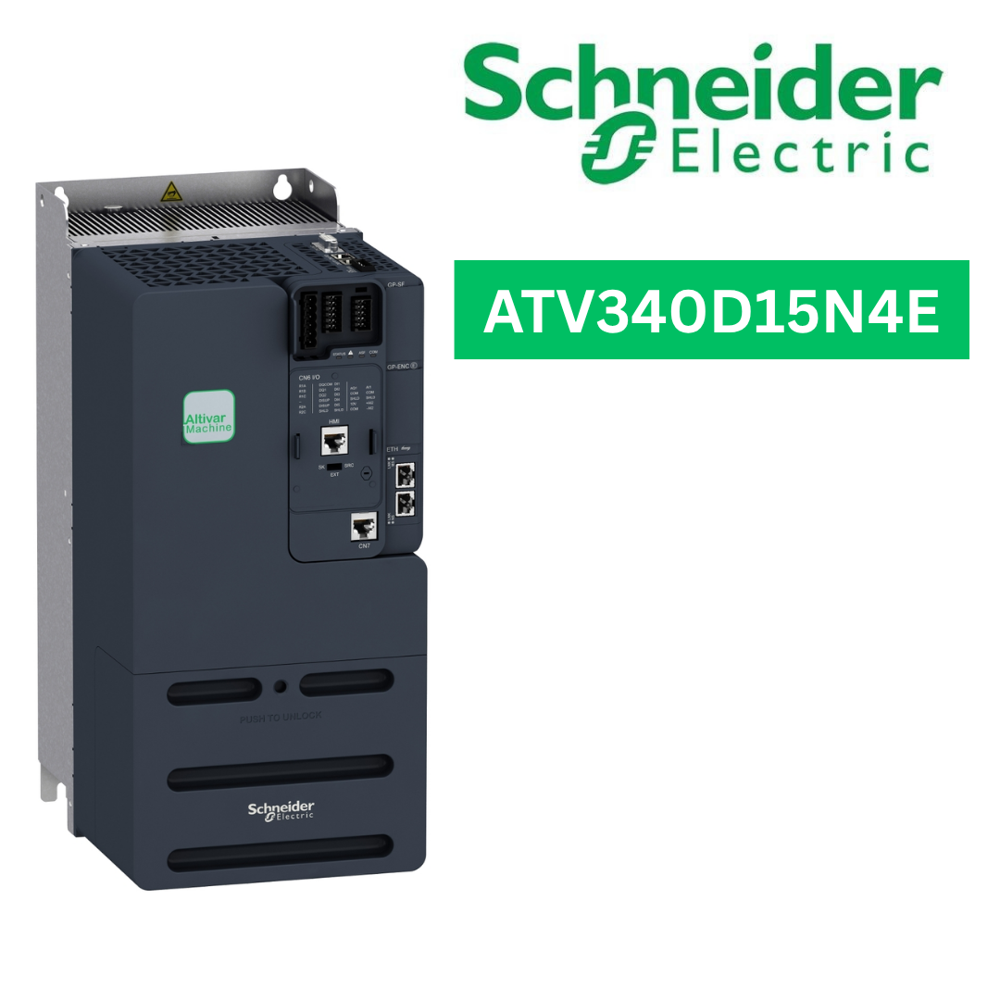

ATV340D15N4E-variable speed drive, Altivar Machine ATV340, 15kW, heavy duty, 400V, 3 phases, Ethernet
ATV340D15N4E-variable speed drive, Altivar Machine ATV340, 15kW, heavy duty, 400V, 3 phases, Ethernet

ATV340D15N4E-variable speed drive, Altivar Machine ATV340, 15kW, heavy duty, 400V, 3 phases, Ethernet

Price 70161.92 INR/ Piece

MOQ : 15 Pieces

ATV340D15N4E-variable speed drive, Altivar Machine ATV340, 15kW, heavy duty, 400V, 3 phases, Ethernet Specification

  • Shape
  • RECTANGLE
  • Mounting Type
  • Cabinet mount
  • IP Rating
  • IP20
  • Overheating Protection
  • YES
  • Power Rating
  • 15KW
  • Product Type
  • Variable speed drive
  • Application
  • Machine
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Output Type
  • Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits
  • Dimension (L*W*H)
  • 180 Millimeter (mm)
  • Weight
  • 9.5 Kilograms (kg)
  • Rated Voltage
  • 480 Volt (V)
  • Operating Temperature
  • 60 Celsius (oC)
  • Warranty
  • 1YEAR
  • Input Voltage
  • 380 Volt (V)
  • Phase
  • THREE PHASE
  • Rated Current
  • 32 Ampere (amp)
  • Connection Type
  • Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 6...25 mm for line side Screw terminal, clamping capacity: 6...25 mm for DC bus Screw terminal, clamping capacity: 4...25 mm for motor
  • Frequency
  • 60 Hertz (HZ)


ATV340D15N4E-variable speed drive, Altivar Machine ATV340, 15kW, heavy duty, 400V, 3 phases, Ethernet Trade Information

  • Minimum Order Quantity
  • 15 Pieces
  • Payment Terms
  • Cash in Advance (CID), Cheque, Paypal, Cash Advance (CA)
  • Supply Ability
  • 50 Pieces Per Week
  • Delivery Time
  • 4 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATV340D15N4E-variable speed drive, Altivar Machine ATV340, 15kW, heavy duty, 400V, 3 phases, Ethernet

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 15kW / 20hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 9.5kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
