Circuit Breaker-A9N16253
1709.76 INR/Piece
Product Details:
- Frequency 50 HZ Hertz (HZ)
- IP Rating IP20 AND IP40
- Operating Temperature -5 C to 40 C Celsius (oC)
- Rated Voltage 500 V Volt (V)
- Rated Current 25 A Ampere (amp)
- Warranty 1 YEAR
- Poles Number 4
- Click to View more
X
Circuit Breaker-A9N16253 Price And Quantity
- 1 Piece
- 1709.76 INR/Piece
Circuit Breaker-A9N16253 Product Specifications
- 500 V Volt (V)
- IP20 AND IP40
- 50 HZ Hertz (HZ)
- 25 A Ampere (amp)
- 370g Grams (g)
- -40 C to 60 C. Celsius (oC)
- 1 YEAR
- 50 HZ Hertz (HZ)
- 4
- -5 C to 40 C Celsius (oC)
Circuit Breaker-A9N16253 Trade Information
- Paypal, Cheque, Cash Advance (CA), Cash in Advance (CID)
- 32 Piece Per Week
- 4 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description

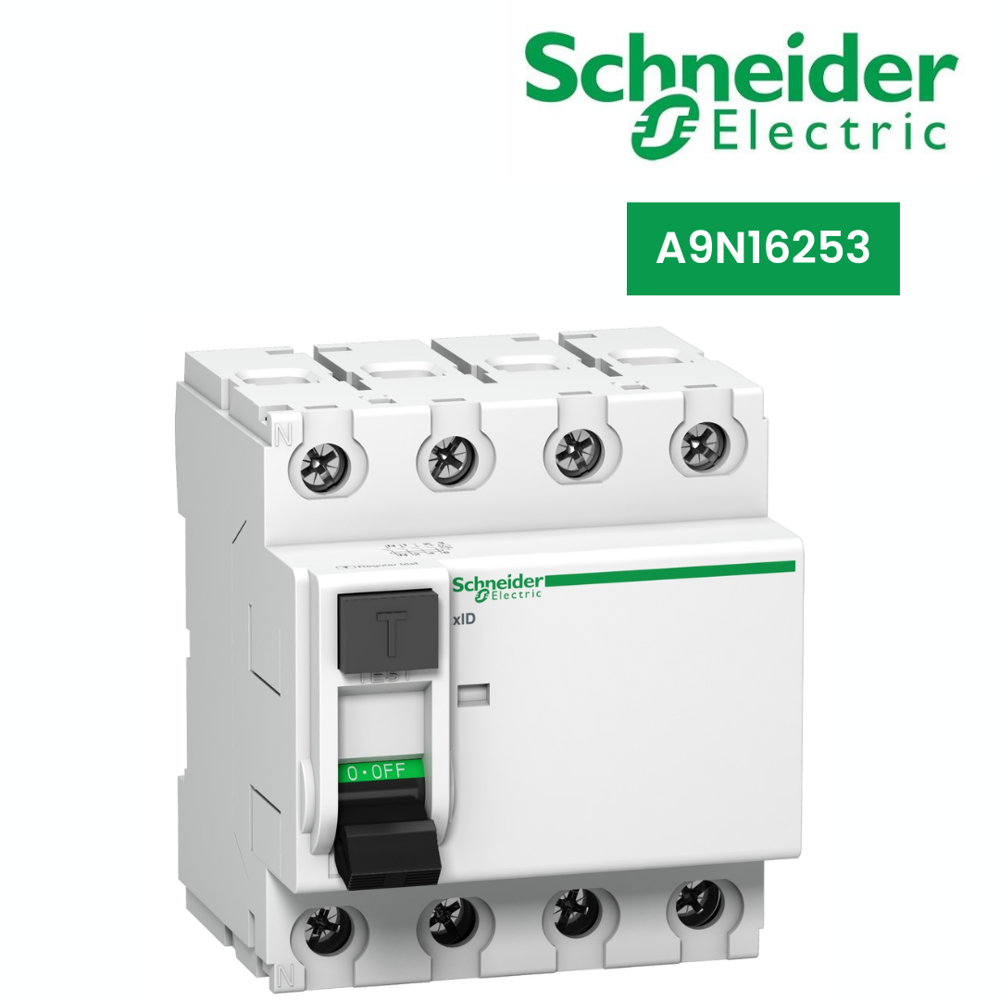

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, a sensitivity of 100mA with a AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 60C.
