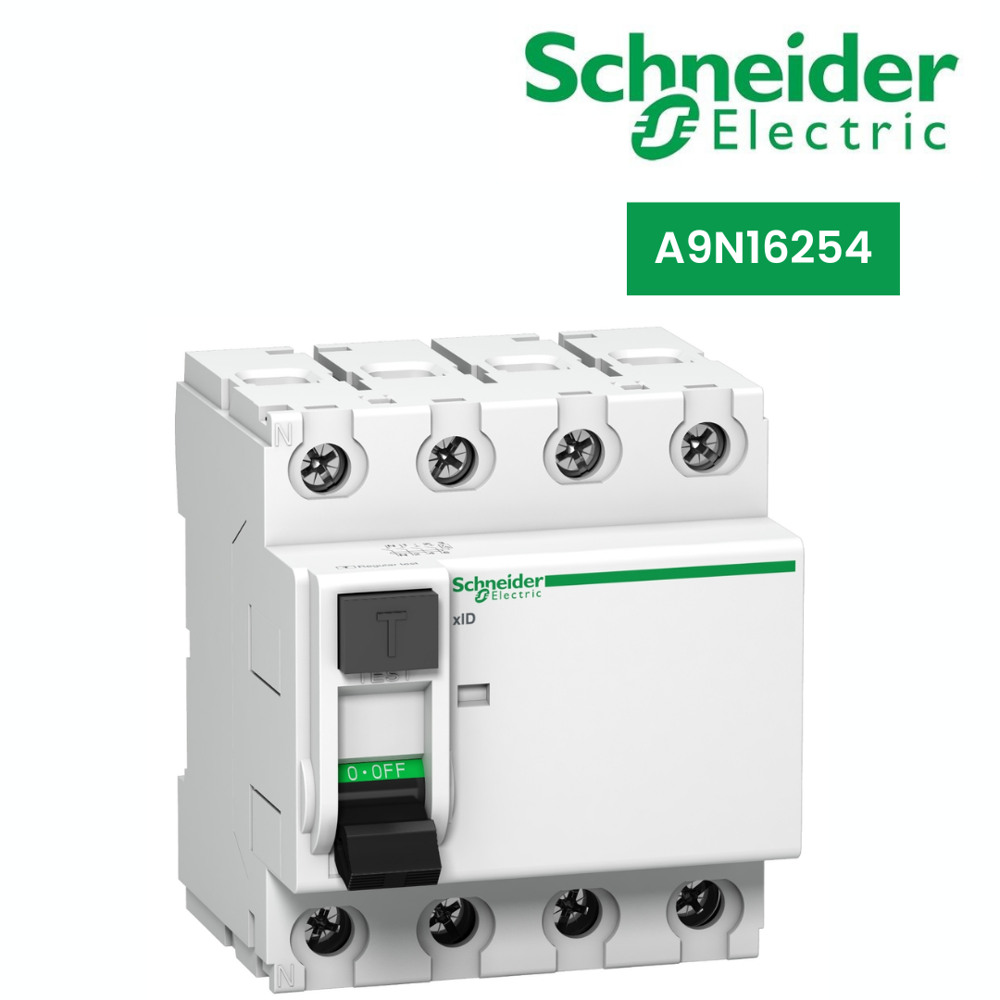

Circuit Breaker-A9N16254

1582.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 40 A Ampere (amp)
Frequency 50Hz Hertz (HZ)
IP Rating IP20 AND IP40
Warranty 1 YEAR
Rated Voltage 500 V Volt (V)
Product Type Residual Current
Poles Number 4
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16254 Price And Quantity

Minimum Order Quantity 1 Piece
Price 1582.0 INR/Piece

Circuit Breaker-A9N16254 Product Specifications

Poles Number 4
Rated Voltage 500 V Volt (V)
Rated Frequency 50Hz Hertz (HZ)
Frequency 50Hz Hertz (HZ)
IP Rating IP20 AND IP40
Warranty 1 YEAR
Product Type Residual Current
Weight 370g Grams (g)
Rated Current 40 A Ampere (amp)

Circuit Breaker-A9N16254 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
