Ethernet Module-BMXNOC0401

59520.0 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Connector Type With FCN connector.
Overheating Protection YES
IP Rating IP20
Rated Current 555mA Megaampere ( MA)
Product Type This product is robust, high quality and based on the latest innovative technology.
Dimension (L*W*H) 242.4 Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ethernet Module-BMXNOC0401 Price And Quantity

Minimum Order Quantity 4 Piece
Price 59520.0 INR/Piece

Ethernet Module-BMXNOC0401 Product Specifications

Input Voltage 3.3V DC Volt (V)
Overheating Protection YES
Connection Type Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
Connector Type With FCN connector.
IP Rating IP20
Weight 0.2kg Kilograms (kg)
Product Type This product is robust, high quality and based on the latest innovative technology.
Rated Current 555mA Megaampere ( MA)
Warranty 1 YEAR
Dimension (L*W*H) 242.4 Millimeter (mm)

Ethernet Module-BMXNOC0401 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

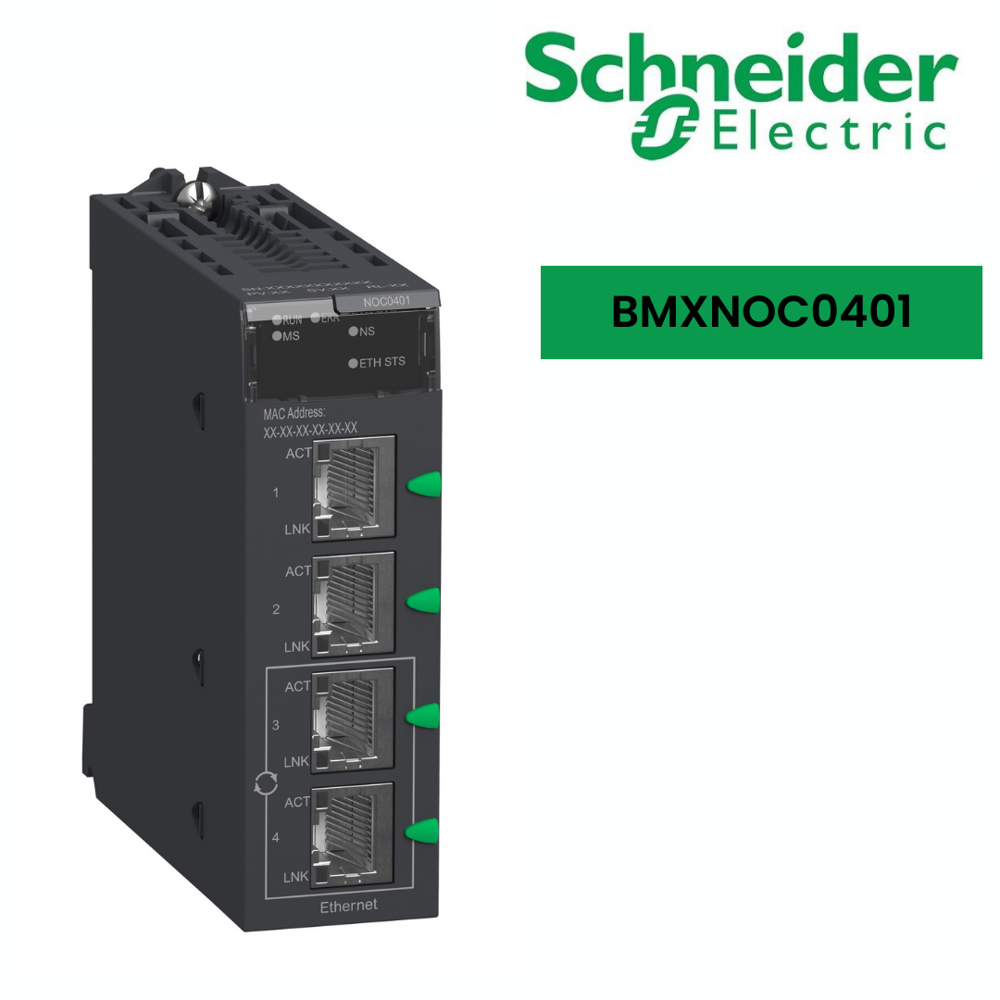

This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
