Product Video

Variable speed Drive ATV630D15N4

60133.0 INR/Piece

Get a Price/Quote

Product Details:

Frequency 60 Hertz (HZ)
Power Rating 15kW
Phase 3 PHASE
Rated Current 31.7 Milliampere (mA)
IP Rating IP21
Rated Voltage 480 Volt (V)
Mounting Type Wall mounted
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable speed Drive ATV630D15N4 Price And Quantity

Price 60133.0 INR/Piece
Minimum Order Quantity 1 Piece

Variable speed Drive ATV630D15N4 Product Specifications

Rated Voltage 480 Volt (V)
Frequency (MHz) 60 Hertz (HZ)
Energy Consumption 30 Energy
Output Type Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA
Mounting Type Wall mounted
Product Type Variable speed drive
Warranty 1 YEAR
Frequency 60 Hertz (HZ)
Phase 3 PHASE
Weight 13 Kilograms (kg)
Input Voltage 380 Volt (V)
Power Rating 15kW
Protection Level IP65
Dimension (L*W*H) 211 Centimeter (cm)
Color BLACK-GREEN
Rated Current 31.7 Milliampere (mA)
IP Rating IP21

Variable speed Drive ATV630D15N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 80 Piece Per Week
Delivery Time 5 Days
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

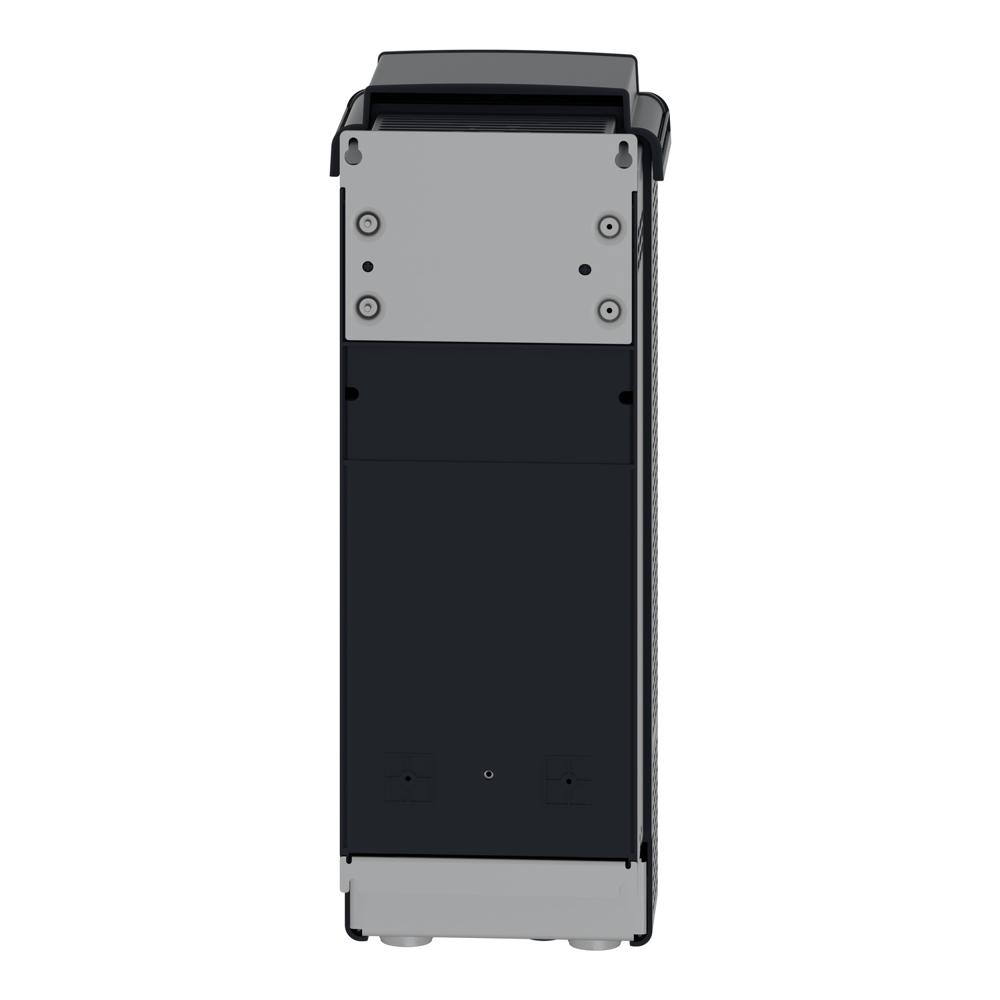

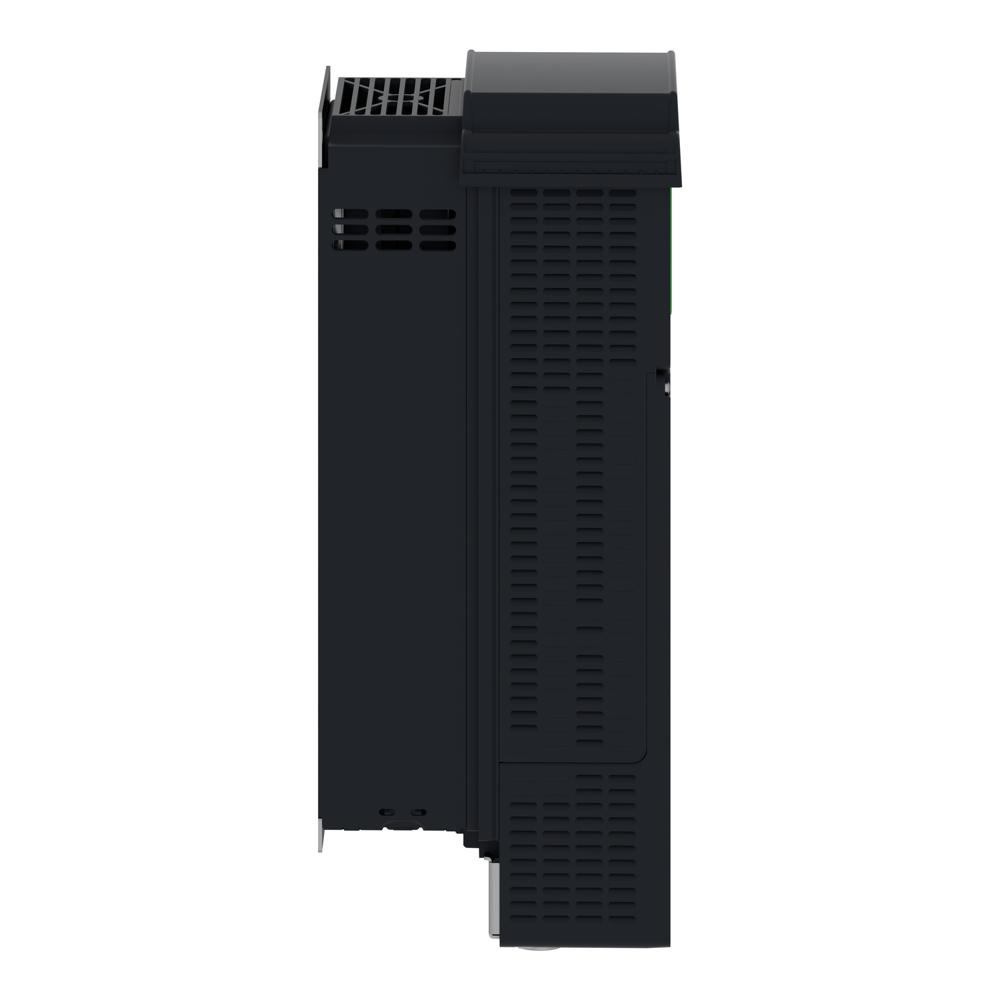

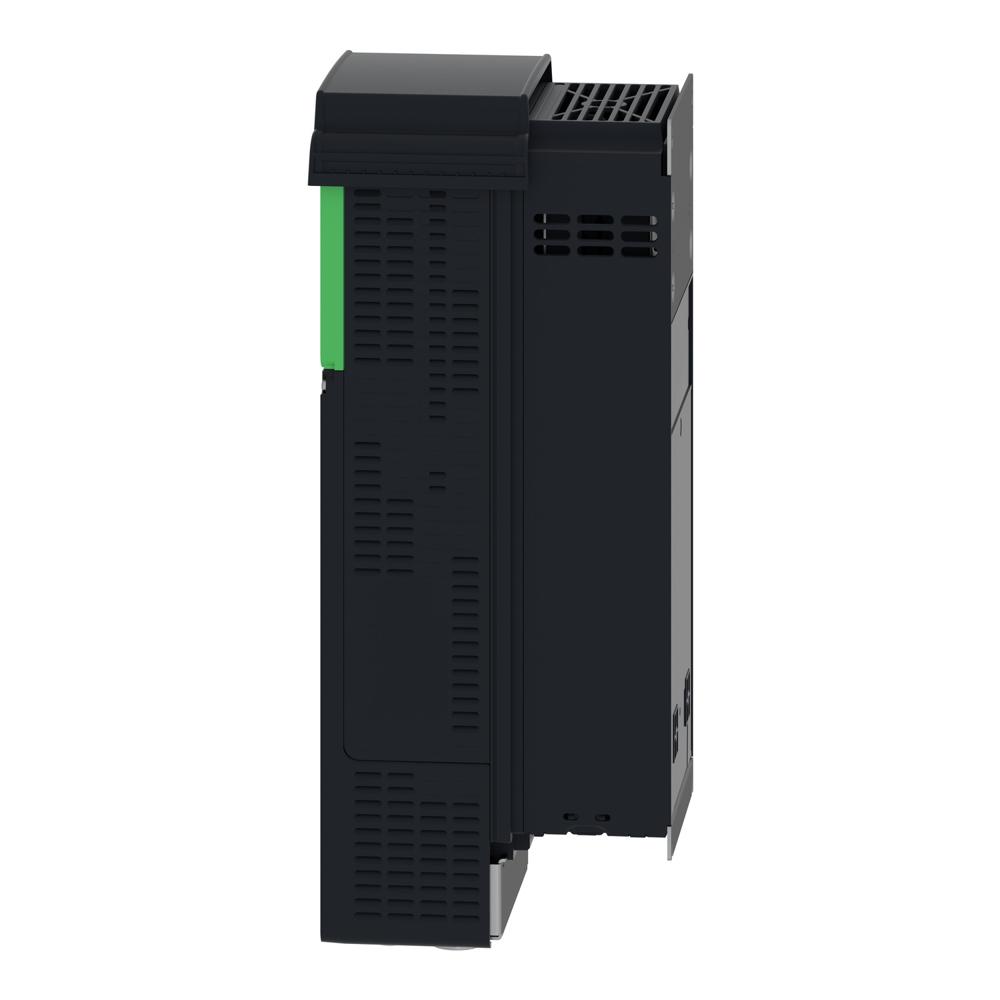

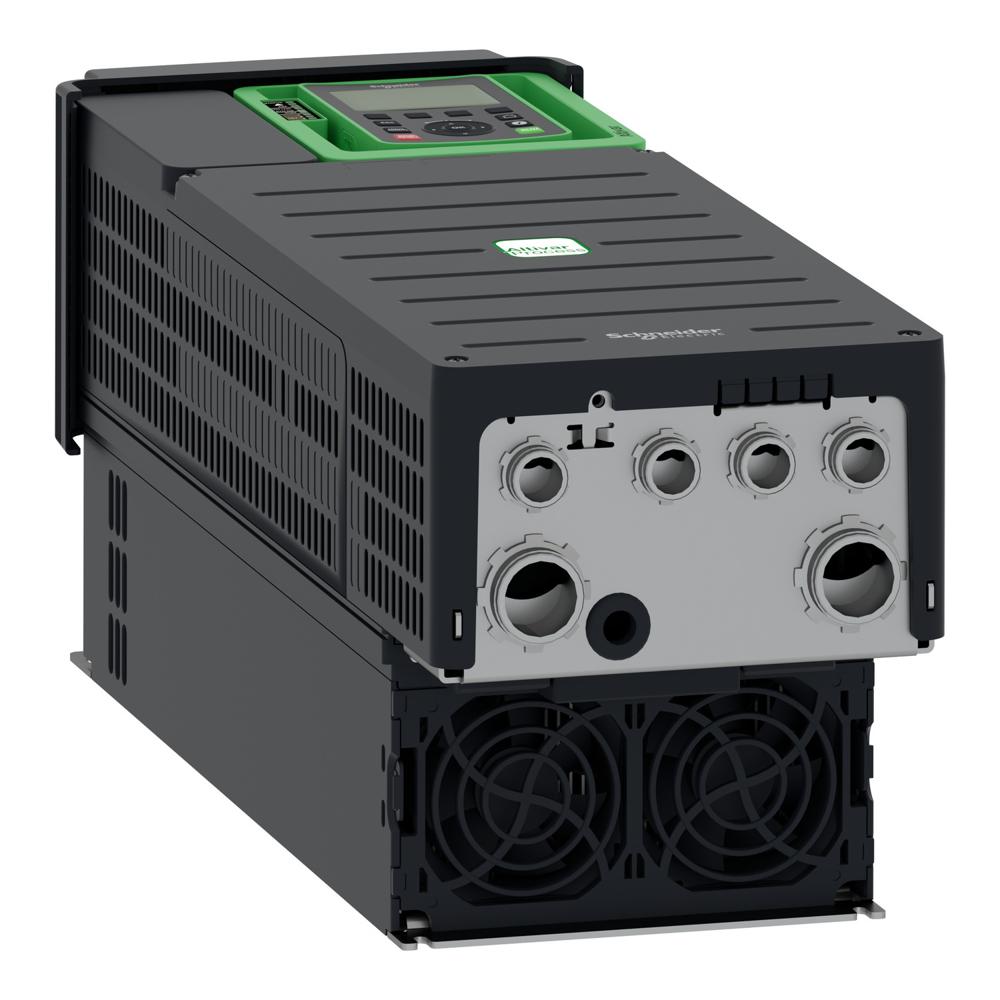

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative Stop and Gooperation without additional costs. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%). It weighs 13.6kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

Variable Speed Drive -ATV340D37N4E Price : 119705.28 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) Rated Voltage : 480 Volt (V) IP Rating : IP20 Frequency : 60 Hertz (HZ) Phase : THREE PHASE Weight : 28 Kilograms (kg) Power Rating : 37KW Warranty : 1YEAR Mounting Type : WALL MOUNT Rated Current : 74 Ampere (amp) Application : Machine Input Voltage : 380 Volt (V) Product Type : Variable speed drive Output Type : Relay outputs R1A Relay outputs R1C electrical durability 100000 cycles Relay outputs R2A Relay outputs R2C electrical durability 100000 cycles Dimension (L*W*H) : 213 Millimeter (mm) Operating Temperature : 60 Celsius (oC) Color : BLACK Connection Type : Screw terminal, clamping capacity: 0.75...1.5 mm for control Screw terminal, clamping capacity: 35...50 mm for line side Screw terminal, clamping capacity: 35...50 mm for DC bus Screw terminal, clamping capacity: 50 mm for motor Connector Type : 3 RJ45

Send Inquiry

Variable Speed Drive-ATV71HD18N4Z Price : 166425.0 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) Rated Voltage : 480 Volt (V) IP Rating : IP20 Frequency : 60 Hertz (HZ) Phase : 3PHASE Weight : 15 Kilograms (kg) Power Rating : 18 KW Warranty : 1 YEAR Rated Current : 61 Milliampere (mA) Application : Complex, highpower machines Input Voltage : 24 Volt (V) Product Type : Variable speed drive Output Type : AO1 softwareconfigurable logic output 10 V 20 mA AO1 softwareconfigurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits AO1 softwareconfigurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits Overheating Protection : YES Dimension (L*W*H) : 400 Millimeter (mm) Operating Temperature : 10 Planck temperature () Color : WHITEBLACK Protection Level : IP65 Connection Type : Terminal, clamping capacity: 2.5 mm , AWG 14 (AI1/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal, clamping capacity: 35 mm , AWG 2 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/, PO, PA/+, PA, PB)

Send Inquiry

Variable Speed Driv -ATV320U75N4C Price : 33264.64 INR/Piece Minimum Order Quantity : 18 Frequency (MHz) : 60 Hertz (HZ) Rated Voltage : 500 Volt (V) IP Rating : IP20 Frequency : 60 Hertz (HZ) Phase : 3 Phase Weight : 3.6 Kilograms (kg) Power Rating : 7.5kW Warranty : 1 Year Mounting Type : Wall mount Rated Current : 500 Volt (v) Application : Complex machines Input Voltage : 300 Volt (V) Product Type : Variable speed drive Output Type : Softwareconfigurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Overheating Protection : YES Operating Temperature : 70 Celsius (oC) Color : Black Protection Level : Other

Send Inquiry

Variable Speed Drive -ATV340U22N4 Price : 31575.36 INR/Piece Minimum Order Quantity : 15 Frequency (MHz) : 60 Hertz (HZ) Rated Voltage : 480 Volt (V) IP Rating : IP20 Frequency : 60 Hertz (HZ) Phase : THREE PHASE Weight : 1.8 Kilograms (kg) Power Rating : 2.2KW Warranty : 1YEAR Mounting Type : Cabinet mount Application : Machine Input Voltage : 380 Volt (V) Product Type : Variable speed drive Output Type : Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits Dimension (L*W*H) : 270 Millimeter (mm) Operating Temperature : 60 Celsius (oC) Connection Type : Line side: screw terminal 1.5...4 mm /AWG 14...AWG 12 DC bus: screw terminal 4...6 mm /AWG 12...AWG 10 Motor: screw terminal 1.5...4 mm /AWG 14...AWG 12 Control: screw terminal 0.2...2.5 mm /AWG 24...AWG 12 Connector Type : 1 RJ45

Send Inquiry
