Product Video

Wander Plug And Socket-PKF16M723

783.84 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50/60 Hz Hertz (HZ)
Rated Current 16A Ampere (amp)
Warranty 1 YEAR
Rated Voltage 200V Volt (V)
Operating Temperature -25 40 C Celsius (oC)
Material Sleeves: brass
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKF16M723 Price And Quantity

Minimum Order Quantity 1 Piece
Price 783.84 INR/Piece

Wander Plug And Socket-PKF16M723 Product Specifications

Product Type Wander socket
Dimension (L*W*H) The dimensions of the base plate are (W) 84mm x (H) 84mm. The degree of protection is IP67 and IK08. Millimeter (mm)
Color Grey (RAL 7035)
Connection Type Captive screws
Material Sleeves: brass
Operating Temperature -25 40 C Celsius (oC)
Rated Voltage 200V Volt (V)
Warranty 1 YEAR
Rated Current 16A Ampere (amp)
Weight 0.17 kg Kilograms (kg)
Frequency 50/60 Hz Hertz (HZ)
Protection Level IP67
Frequency (MHz) 50/60 Hz Hertz (HZ)
Overheating Protection YES
IP Rating IP67

Wander Plug And Socket-PKF16M723 Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

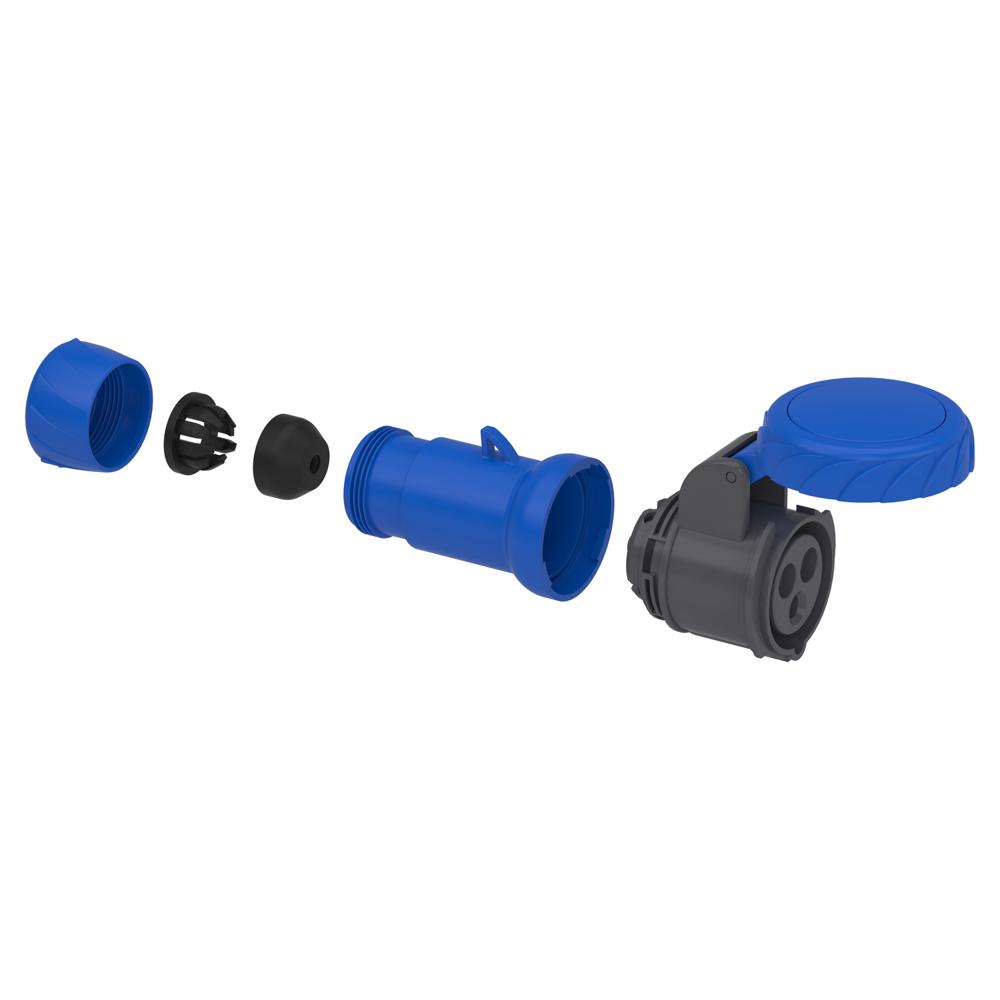

This Pratika industrial wander socket with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 84mm x (H) 84mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm to 4mm cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
