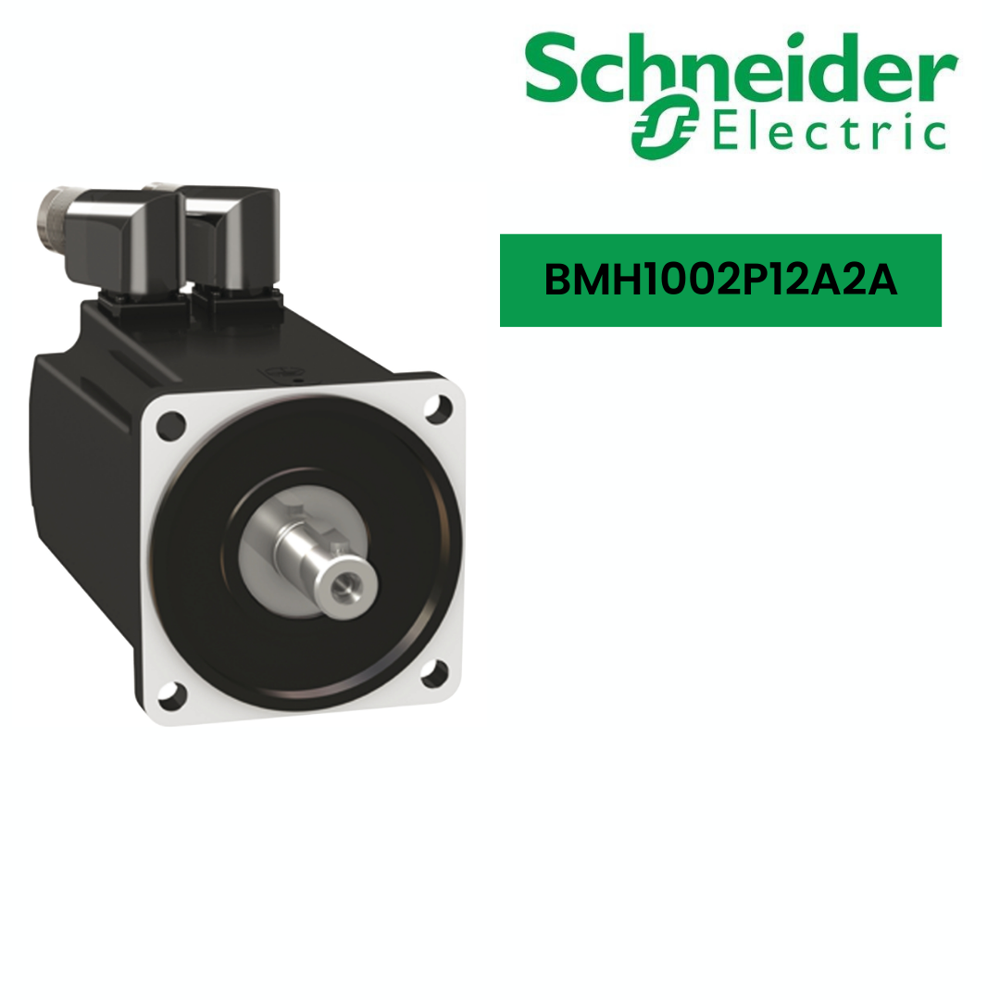

Servo Motor-BMH1002P12A2A

64793.4 INR/Piece

Get a Price/Quote

Product Details:

Poles Number 10
Features maximum mechanical speed
IP Rating IP54
Material YES
Torque 3.9 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 3.9 N.m for LXM32.D18N4 at 6 A, 480 V, three phase N-m
Voltage 480V Volt (v)
Rated Current 18.23 A Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor-BMH1002P12A2A Price And Quantity

Price 64793.4 INR/Piece
Minimum Order Quantity 5 Piece

Servo Motor-BMH1002P12A2A Product Specifications

Weight 4.92 kg Kilograms (kg)
Speed 6000RPM RPM
Power Rating 0.15kW to 11kW
Warranty 1 YEAR
Rated Voltage 480V Volt (V)
Output Power 1600 W for LXM32.D18N4 at 6 A, 400 V, three phase 1600 W for LXM32.D18N4 at 6 A, 480 V, three phase Watt (w)
Phase Three Phase
Features maximum mechanical speed
Color BLACK
Shaft Diameter 19mm (diameter) x 40mm (length) Millimeter (mm)
Mounting Type International standard flange
IP Rating IP54
Current Type 17.5 A for LXM32.D18N4
Rated Current 18.23 A Ampere (amp)
Power 2.36 W Watt (w)
Product Type Servo Motor
Material YES
Dimension (L*W*H) 19mm (diameter) x 40mm (length) Millimeter (mm)
Poles Number 10
Voltage 480V Volt (v)
Torque 3.9 N.m for LXM32.D18N4 at 6 A, 400 V, three phase 3.9 N.m for LXM32.D18N4 at 6 A, 480 V, three phase N-m

Servo Motor-BMH1002P12A2A Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 30 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 6000RPM and keyed shaft end without holding brake. It is an equipped with a multi-turn SinCos Hiperface feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 5.04A and a continuous power of 2.36W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 160.6mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.92kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D18N4 at 400V to 480V three phase. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Servo Motor' category

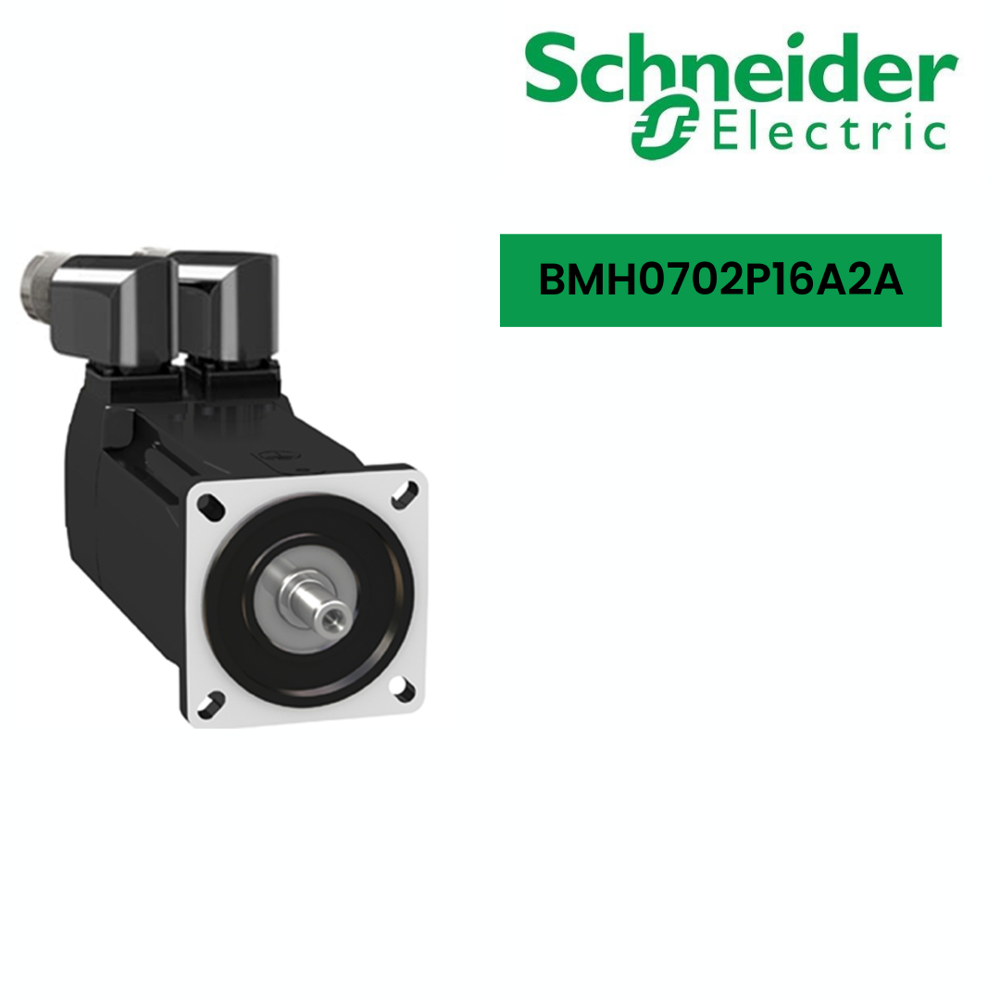

Servo Motor-BMH0702P16A2A Price : 32727.45 INR/Piece Minimum Order Quantity : 5 Mounting Type : 4point axial mounting flange. Voltage : 480V Volt (v) Power : 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable rightangled connectors Watt (w) Product Type : Servo Motor Poles Number : 10 Speed : 8000RPM RPM Weight : 2.3kg Kilograms (kg) IP Rating : IP54 Dimension (L*W*H) : 154mm (Length) x 70mm (Width), Millimeter (mm) Rated Voltage : 480V Volt (V) Phase : Three Phase Power Rating : 1.51W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). Warranty : 1 YEAR Rated Current : 9.68 A Ampere (amp) Features : medium moment of inertia with maximum mechanical speed of 8000RPM and parallel keyed shaft without holding brake. Output Power : 700 W for LXM32.D12N4 at 3 A, 400 V, three phase 700 W for LXM32.D12N4 at 3 A, 480 V, three phase Watt (w) Current Type : 2.94A9.68 A Color : BLACK Torque : 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase 2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase Nm Starting Type : Electric Start
