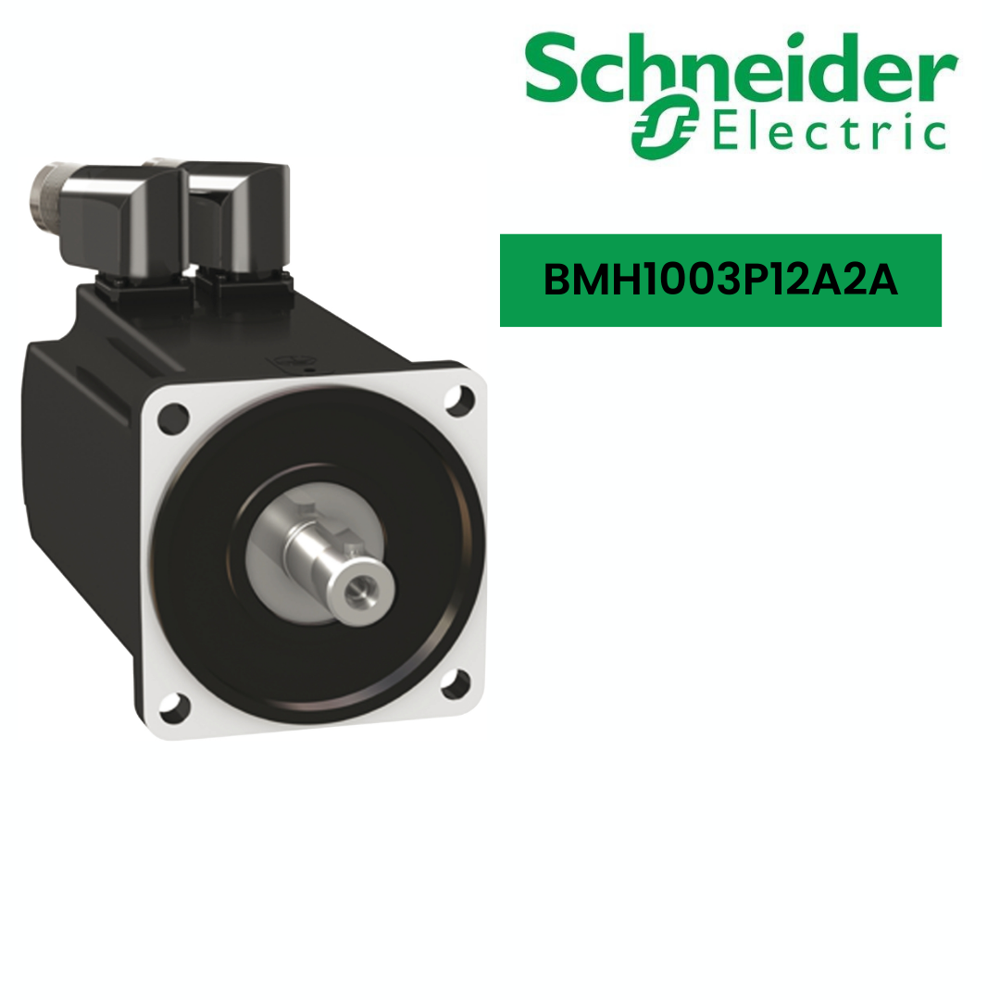

Servo Motor-BMH1003P12A2A

65545.2 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP54
Power Rating 3.3 W
Torque 8.4Nm. Its degree of protection is IP54 rated N-m
Rated Voltage 480V Volt (V)
Features maximum mechanical speed
Rated Current 29.1 A Ampere (amp)
Material YES
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor-BMH1003P12A2A Price And Quantity

Minimum Order Quantity 1 Piece
Price 65545.2 INR/Piece

Servo Motor-BMH1003P12A2A Product Specifications

Rated Current 29.1 A Ampere (amp)
Features maximum mechanical speed
Rated Voltage 480V Volt (V)
Phase Three Phase
Torque 8.4Nm. Its degree of protection is IP54 rated N-m
IP Rating IP54
Product Type Servo Motor
Power Rating 3.3 W
Power 3.3 W Watt (w)
Warranty 1 YEAR
Dimension (L*W*H) 39.5 Millimeter (mm)
Speed 6000RPM RPM
Poles Number 10
Output Power 2700 W for LXM32.D30N4 at 10 A, 400 V, three phase 2700 W for LXM32.D30N4 at 10 A, 480 V, three phase Watt (w)
Current Type 29.1 A
Voltage 480V Volt (v)
Color BLACK
Material YES
Mounting Type International standard flange

Servo Motor-BMH1003P12A2A Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 30 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 6000RPM, a keyed shaft end, without holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 7.69A, a continuous power of 3.3W, and a continuous stall torque of 8.4Nm. Its degree of protection is IP54 rated. The motor flange size is 100mm, fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. It weighs 6.5kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD30N4, LXM32SD30N4, LXM32MD30N4, and LXM32CD30N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
